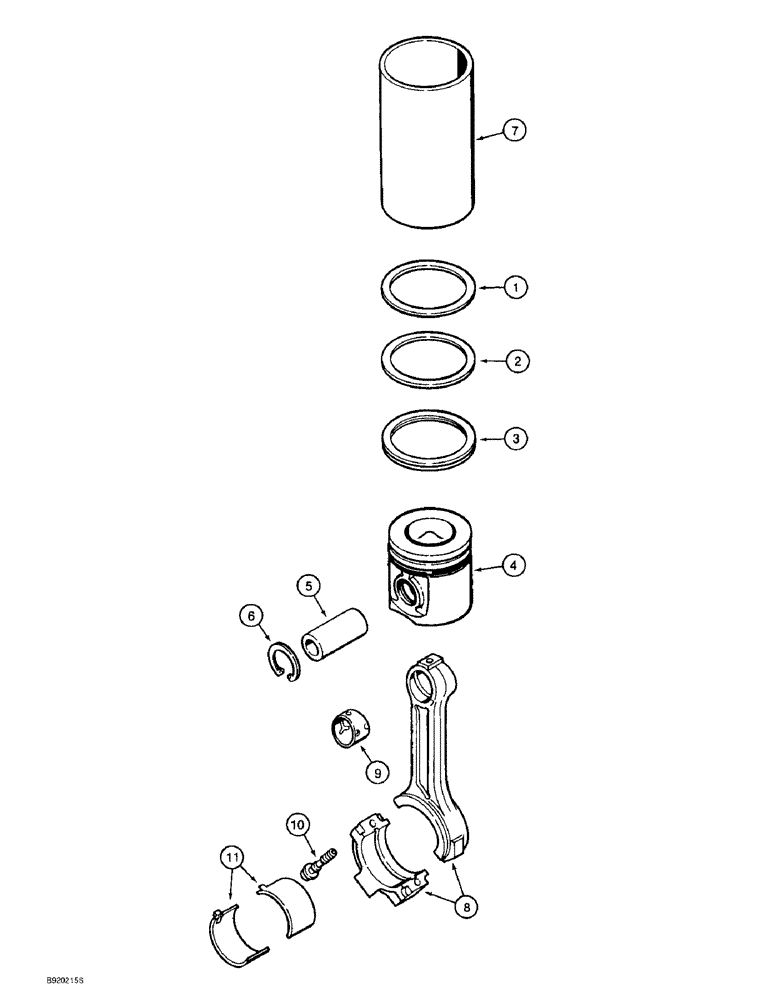

Запчасти Case 9010B (2-094) - PISTONS AND CONNECTING RODS, 4TA-390 ENGINE, *PRIOR TO P.I.N. DAC01#2001, CONNECTING RODS (02) - ENGINE

A77733

PISTON

KIT - piston, standard, Includes: ring and Ref. 1 - 6

4шт.

A77727

PISTON RING SET

KIT - ring, standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 8816)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77734

PISTON

KIT - piston, 0.5 mm oversize, Includes: ring and Ref. 1 - 6

4шт.

A77728

PISTON RING SET

KIT - ring, 0.5 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 8816)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77735

PISTON

KIT - piston, 1.00 mm oversize, Includes: ring and Ref. 1 - 6

4шт.

A77729

PISTON RING SET

KIT - ring, 1.0 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize (Stamped 8816)

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair (when liner is installed, use A77733 standard piston kit)

1шт.

JR925232

ROD

ASSEMBLY - connecting, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 8 - 10

4шт.

JC925232

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly, Includes: Ref. 8 - 10

4шт.

J925232

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, Includes: Ref. 8 - 10

4шт.

84145405R

REMAN-CONNECTING ROD

9010B PRIOR TO P.I.N. DAC01#2001 (1/95-), Reman For New P/N J925232

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

9

J901085

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rod

2шт.

11

A77465

BEARING SET

KIT - bearing, upper and lower set, standard, connecting rod

4шт.

11

A77466

BEARING SET

KIT - bearing, upper and lower set, 0.25 mm oversize, connecting rod

4шт.

11

A77467

BEARING LINER

KIT - bearing, upper and lower set, 0.50 mm oversize, connecting rod

4шт.

11

A77468

BEARING SET

KIT - bearing, upper and lower set, 0.75 mm oversize, connecting rod

4шт.

11

A77469

BEARING SET

KIT - bearing, upper and lower set, 1.00 mm oversize, connecting rod

4шт.
