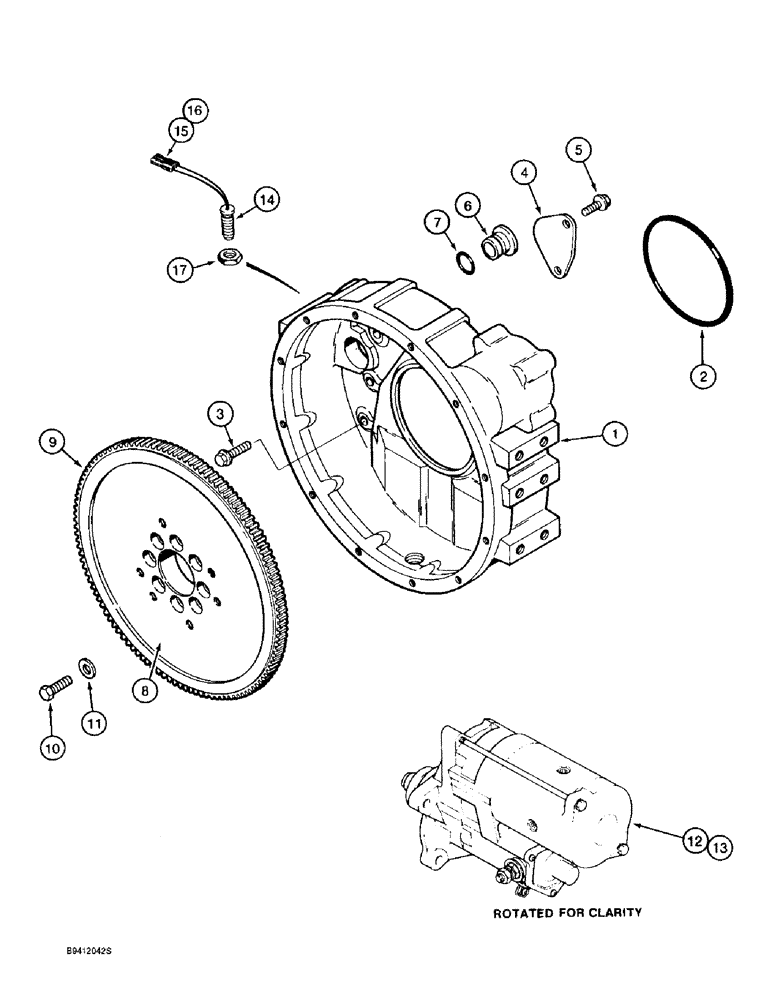

Запчасти Case 9010B (2-090) - FLYWHEEL AND HOUSING, 4TA-390 ENGINE, PRIOR TO P.I.N. DAC01#2001 (02) - ENGINE

1

J931627

HOUSING

HOUSING - flywheel, replaces J903282 housing

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING O-RING - flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 40 mm, class 10.9, Flywheel housing to block

8шт.

4

J925234

PLATE

PLATE - cover, replaces J908095 plate

1шт.

5

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm, plate retaining, replaces J902735

2шт.

6

J910248

PLUG

PLUG - flywheel housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

O-RING, -212, 70 Duro, .859" ID x .139" Thk

7шт.

8

J907466

FLYWHEEL

FLYWHEEL ASSEMBLY - engine, Includes: Ref. 9

1шт.

9

J905427

GEAR

GEAR - ring, flywheel

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

WASHER - flat, special

8шт.

12

1987566C1

STARTER MOTOR,24V, 5.5kW

STARTER ASSEMBLY - engine, see parts list Figure 4-4

1шт.

Two production phases of engine blocks exist which affect starter interchangeability. For blocks with two cup plugs in the water jacket behind the starter (as illustrated on Figure 2-74 Ref. 6), order 1987566C1 starter. For blocks with one cup plug and one raised casting boss with 3/4 inch NPT port (as illustrated on Figure 2-78), order J934119 starter. If a replacement block is required, the starter may have to be changed also.

1шт.

12

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

12

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

12

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

12

1987566C1

STARTER MOTOR,24V, 5.5kW

Value

1шт.

12

J934119

STARTING MOTOR

STARTER ASSEMBLY - engine, component information not available at time of publication

1шт.

87436686R

REMAN-STARTER

9010B Prior to P.I.N DAC01#2001 (1/95-) Reman For New P/N J934119

1шт.

87436686C

CORE-STARTER

Return Number

1шт.

Two production phases of engine blocks exist which affect starter interchangeability. For blocks with two cup plugs in the water jacket behind the starter (as illustrated on Figure 2-74 Ref. 6), order 1987566C1 starter. For blocks with one cup plug and one raised casting boss with 3/4 inch NPT port (as illustrated on Figure 2-78), order J934119 starter. If a replacement block is required, the starter may have to be changed also.

1шт.

12

JR934119

REMAN-STARTER

Remanufactured Starter

1шт.

12

JC934119

CORE-STARTER

Return number

1шт.

13

J903834

12 PT SCREW,M10 x 1.5 x 35mm, Cl 10.9

BOLT - special, 12 point, starter to flywheel housing

3шт.

A187584

SENSOR

SENDER ASSEMBLY - engine rpm, located at top of flywheel housing, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - threaded, with electrical wiring

1шт.

15

245483C1

ELEC CONNECTOR,Male, 2 Pin

CONNECTOR - harness, female

1шт.

16

225127C1

PLUG

PLUG - connector

2шт.

17

425-1512

JAM NUT,Jam, 3/4"-10, G5

NUT - hex, jam, 3/4 inch NF

1шт.
