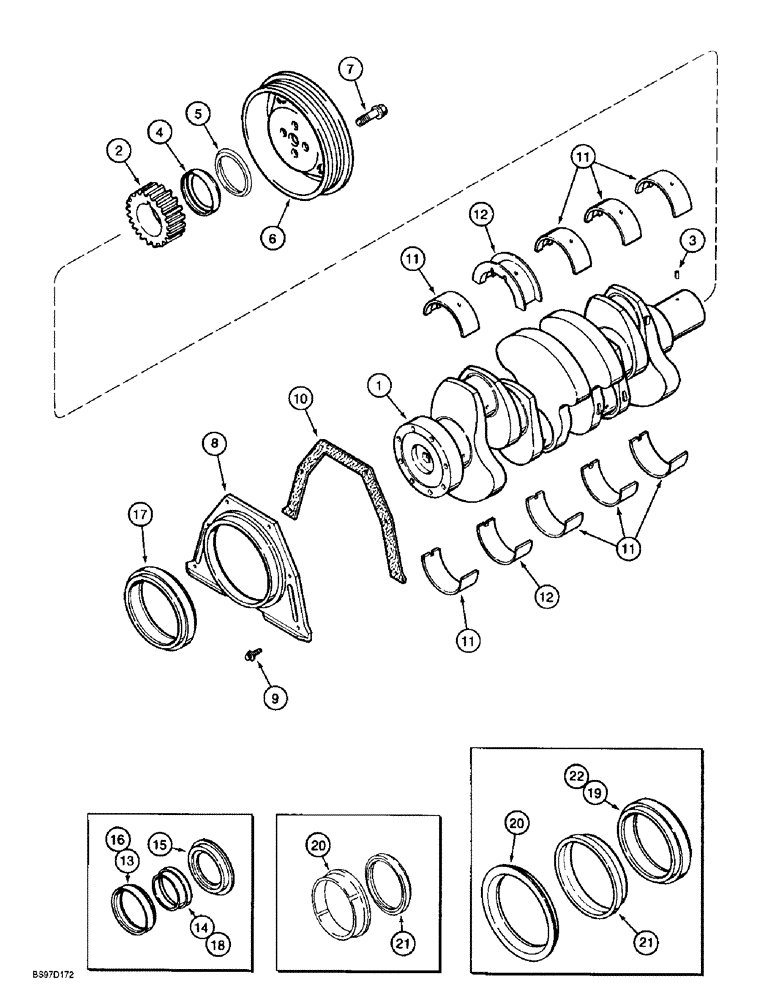

Запчасти Case 9010B (2-088) - CRANKSHAFT, 4TA-390 EMISSIONS CERTIFIED ENGINE, *P.I.N. DAC01#2001 AND AFTER (02) - ENGINE

JR908031

CRANKCASE

CRANKSHAFT - engine, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

9010B EMISSIONS, P.I.N. DAC01#2001 AND AFTER (1/95-), Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly, Includes: Ref. 2 and 3

1шт.

1

J918323

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2 and 3

1шт.

J929036R

REMAN-CRANKSHAFT

9010B EMISSIONS *P.I.N. DAC01#2001 AND AFTER (1/95-), Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

GEAR - crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order J904353 kit below

1шт.

5

J926430

SHAFT SEAL

SEAL - dust, crankshaft, service repair only

1шт.

6

J914494

PULLEY,181.25mm OD

- crankshaft vibration damper

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, special, 12 - 1.25 x 36 mm

4шт.

8

J921043

REAR COVER

RETAINER - seal, rear cover

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

- rear cover retainer

1шт.

11

A77405

CRANKSHAFT BEARING

BEARING - main, upper and lower set, standard

4шт.

11

A77472

BEARING SET

BEARING - main, upper and lower set, 0.25 mm undersize

4шт.

11

A77474

BEARING SET

BEARING - main, upper and lower set, 0.50 mm undersize

4шт.

11

A77476

BEARING SET

BEARING - main, upper and lower set, 0.75 mm undersize

4шт.

11

A77478

BEARING SET

BEARING - main, upper and lower set, 1.00 mm undersize

4шт.

12

A77406

CRANKSHAFT BEARING

BEARING - main thrust, upper and lower set, standard

1шт.

12

A77473

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.25 mm undersize

1шт.

12

A77475

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.50 mm undersize

1шт.

12

A77477

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.75 mm undersize

1шт.

12

A77479

THRUST BEARING

BEARING - main thrust, upper and lower set, 1.00 mm undersize

1шт.

12

A77841

THRUST BEARING

BEARING - main thrust, upper and lower set, 0.50 mm undersize, 0.50 mm oversize thrust

1шт.

12

A77840

THRUST BEARING

BEARING - main thrust, upper and lower set, 1.00 mm undersize, 1.00 mm oversize thrust

1шт.

J904353

GASKET KIT

KIT - oil seal, crankshaft front, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

14

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

J802820

PACKAGE, REPAIR

KIT - oil seal, crankshaft front, includes wear sleeve, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - wear, not shown

1шт.

18

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

A77809

GASKET KIT

KIT - oil seal, crankshaft rear, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

A77810

SERVICE KIT

KIT - oil seal, crankshaft rear, includes wear sleeve, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.
