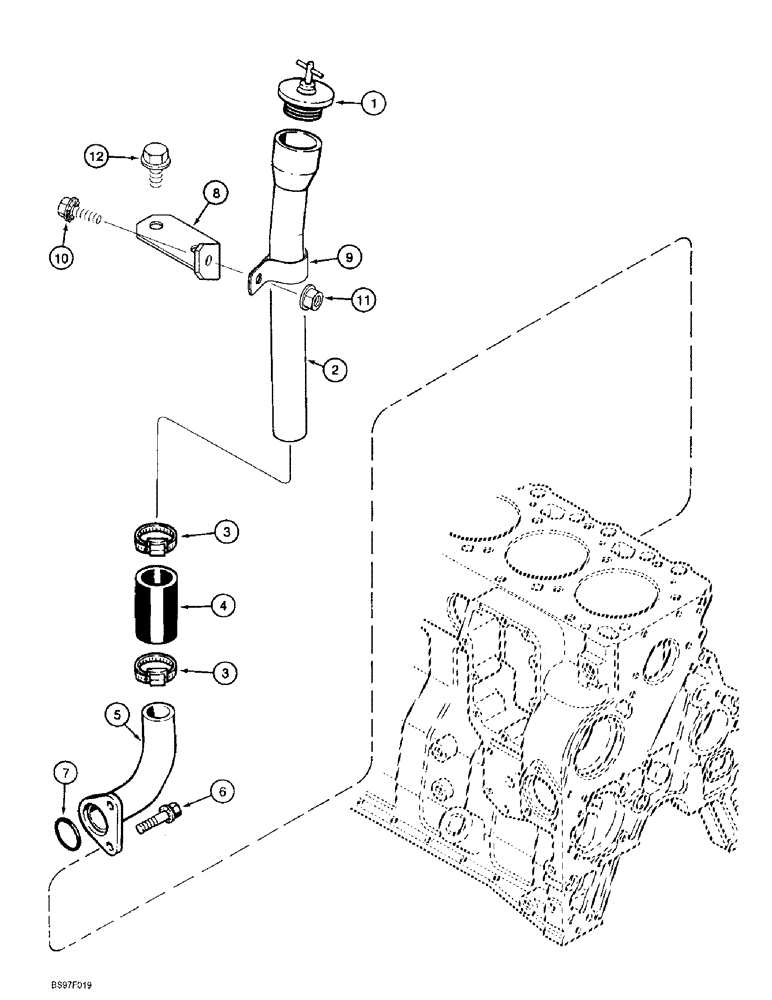

Запчасти Case 9010B (2-084) - ENGINE OIL FILL ASSEMBLY, 4TA-390 EMISSIONS CERTIFIED ENGINE, *P.I.N. DAC01#2001 AND AFTER (02) - ENGINE

1

A77424

FILLER CAP

CAP - oil fill tube

1шт.

2

J933144

TUBE,38.1 - 52.39 mm OD x 350, 30 mm L

- oil fill, upper

1шт.

3

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

CLAMP - adj, 1-5/16 - 2-1/4 inch dia, hose retaining

2шт.

4

J912686

HOSE,38.1mm ID x 84mm L

- 84 mm (3-5/16 inch) long

1шт.

5

J933117

TUBE,190.5, 86.1 mm L

- oil fill, lower

1шт.

6

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

Heavy Hex Flg, M12 x 35, 8.8

2шт.

7

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID

1шт.

8

J933596

BRACKET

- support, upper oil fill tube

1шт.

9

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type 1 1/2", Insul, 1/2" Bolt

1шт.

10

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

- heavy hex flange, 10 - 1.5 x 20 mm, if used

1шт.

10

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, If used

1шт.

11

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5, If used

1шт.

11

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8, if used

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

2шт.
