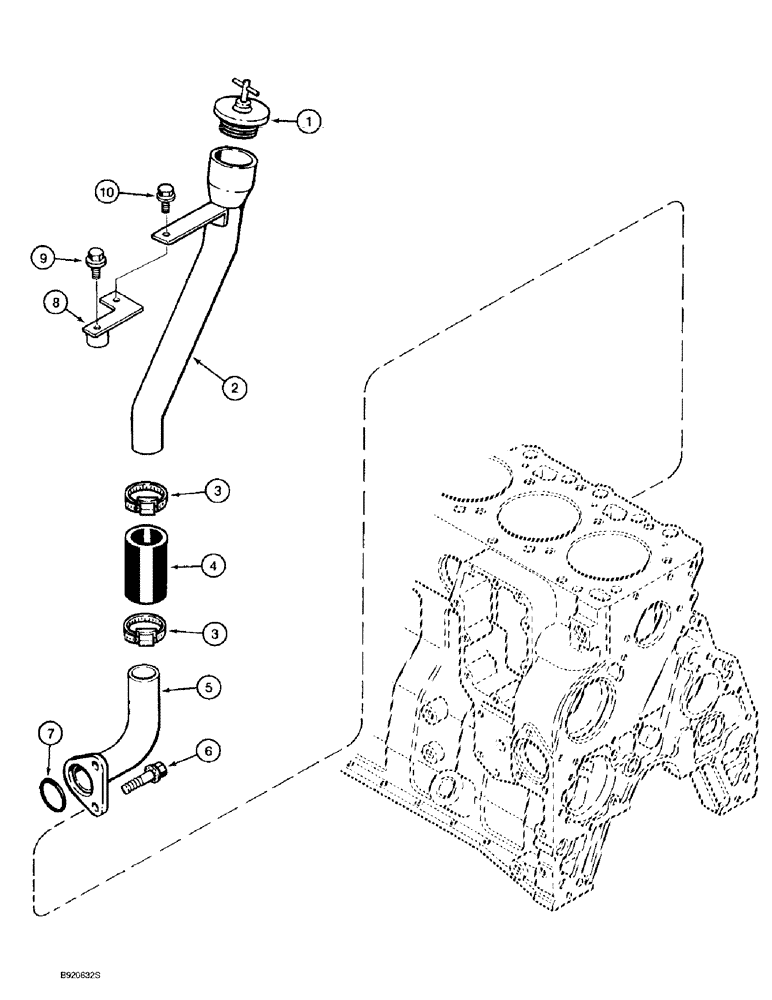

Запчасти Case 9010B (2-082) - ENGINE OIL FILL ASSEMBLY, 4TA-390 ENGINE,** PRIOR TO P.I.N. DAC01#2001 (02) - ENGINE

1

A77424

FILLER CAP

CAP - oil fill tube

1шт.

2

J912689

TUBE,38.1 mm OD x 371.1 mm L

- oil fill, upper

1шт.

3

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

2шт.

4

J912686

HOSE,38.1mm ID x 84mm L

- 84 mm (3-5/16 inch) long

1шт.

5

J912687

TUBE,38.1 mm ID x 195.9 mm L

- oil fill, lower

1шт.

6

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

7

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID

1шт.

8

J912683

TUBE

BRACKET - support, upper oil fill tube

1шт.

9

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

- heavy hex flange, 8 - 1.25 x 40 mm, class 10.9, bracket through intake manifold cover to cylinder head

1шт.

10

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Oil fill extension tube to bracket

1шт.
