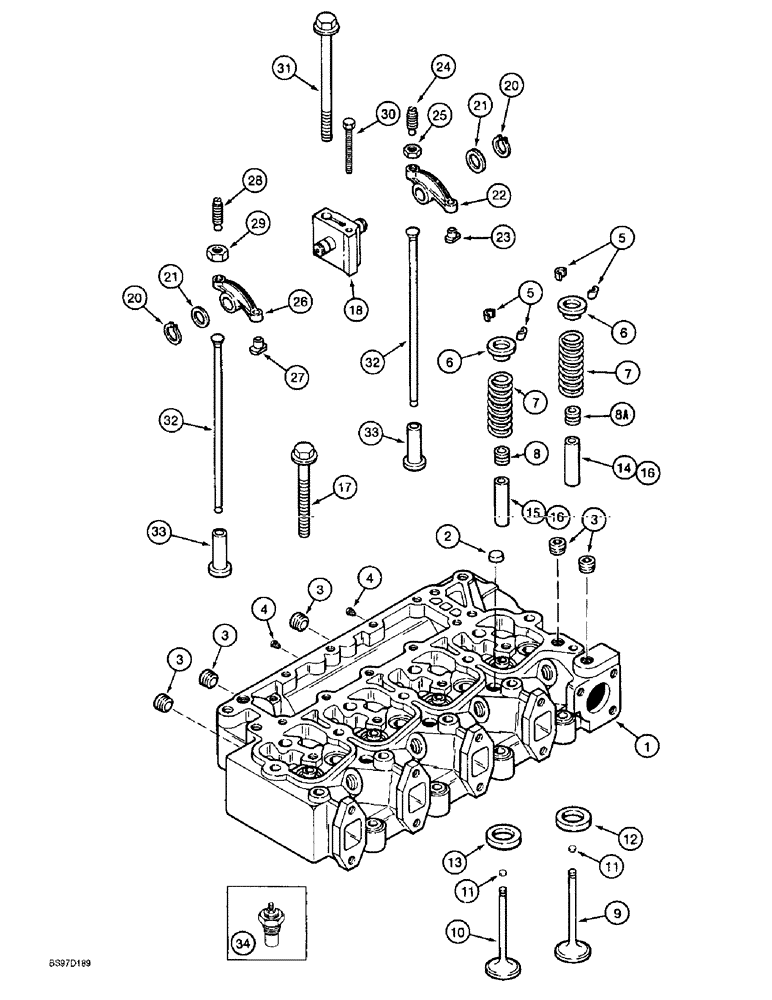

Запчасти Case 9010B (2-064) - CYLINDER HEAD AND VALVE MECHANISM, 4TA-390 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC01#2001 AND AFTER (02) - ENGINE

JR927330

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 10

1шт.

JC927330

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return head for credit when using a remanufactured assembly, Includes: Ref. 1 - 10

1шт.

J927330

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, Includes: Ref. 1 - 10

1шт.

1

J917433

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, without valves, Includes: Ref. 2

1шт.

2

A77783

PLUG

- expansion, 21 mm OD

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

PLUG, DRAIN, , One removed to install Ref. 34, 1983238C1 coolant temperature sender Sq Soc, 1/2"-14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

J900250

SCREW

KEEPER - valve

16шт.

6

J900299

RETAINER

- valve spring

8шт.

7

J926700

VALVE SPRING

SPRING - valve

8шт.

8

J901097

SEAL

- valve

4шт.

8a

J921640

SEAL

- valve

4шт.

9

J920867

VALVE

- intake

4шт.

10

J920868

VALVE

- exhaust

4шт.

11

J280911

WEAR PAD

PAD - wear, service repair only for valve stem tip

4шт.

12

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

4шт.

13

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

4шт.

14

J904408

GUIDE

- valve, intake, service repair only, 14 mm OD

4шт.

These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

- valve, exhaust, service repair only, 14 mm OD

4шт.

These parts are semi-finished valve guides.

1шт.

16

J906206

GUIDE

- valve, intake and exhaust, service repair only, 11 mm OD

8шт.

These parts are semi-finished valve guides.

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- cylinder head, 120 mm long

10шт.

18

J922488

SUPPORT

AND SHAFT ASSEMBLY - rocker arm

4шт.

20

J900242

SNAP RING

RING - retaining, rocker arm

8шт.

21

J900245

WASHER

- thrust, rocker arm

8шт.

22

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 23 - 25

4шт.

23

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

25

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

26

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 27 - 29

4шт.

27

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

29

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

30

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

31

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long

4шт.

32

J923262

PUSH ROD

ROD - push, rocker arm

8шт.

33

J931623

TAPPET

- valve, push rod

8шт.

34

1983238C1

SENSOR,1/2" - 14

SENDER - engine coolant temperature, installed at front side of cylinder head behind fuel lines

1шт.

P/N 1983238C1 is still used in the hole in the block that has 1/2" NPTF thread. Now see notes entered on Figure 4-10. The 159147A1 engine coolant sender goes into 153493A1 reducer bushing. These have M16 x 1.5 metric thread. Look in your 9020B parts catalog on Figure 2-56 artwork. Look on that Figure to where the Ref. 1 bubble is pointing. There are two threaded holes with an unthreaded hole between them. Engineering advises that the reducer bushing goes into the hole to the left as you view the artwork. I

1шт.

35

153493A1

BUSHING

- reducer, used with Ref. 34, not shown

1шт.
