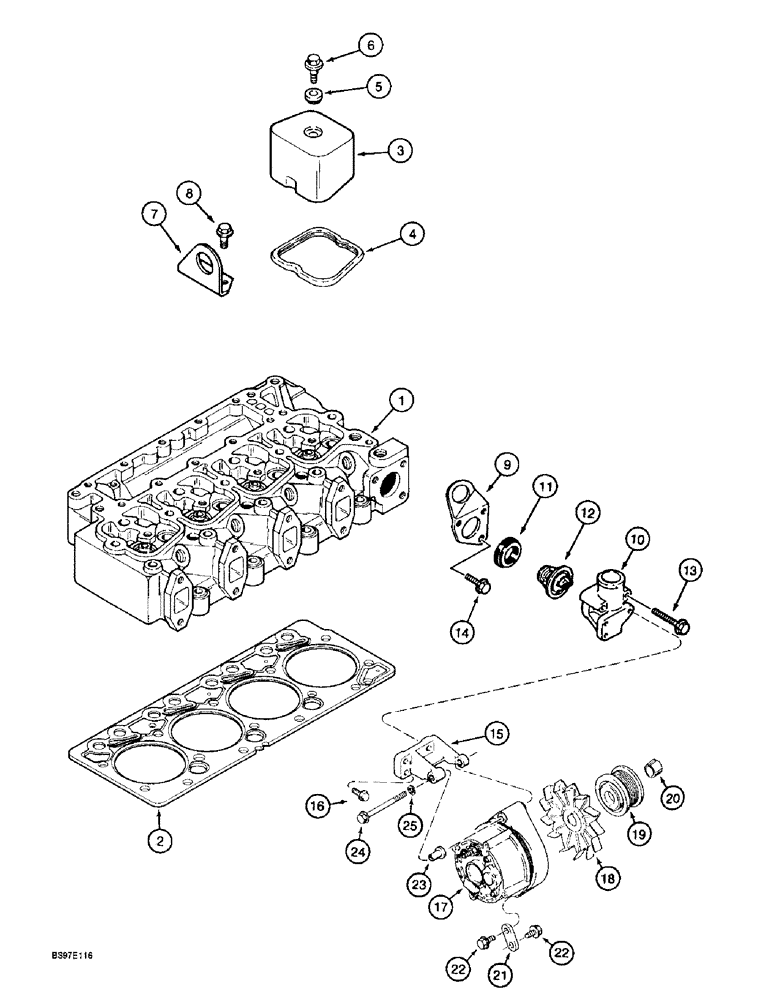

Запчасти Case 9010B (2-060) - CYLNDR HEAD COVR,4TA-390 EMISS CERT ENG, P.I.N. DAC01#2001 & AFT,THERMOSTAT, HOUSING/ALTERNATOR MNT. (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-60 for correct cylinder head and parts list

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

- head, standard

1шт.

2

J283336

GASKET

- head, 2 notches, 0.25 mm overthick

1шт.

2

J283338

GASKET

- head, 3 notches, 0.50 mm overthick

1шт.

3

J928404

COVER

- rocker arm

4шт.

4

J930906

GASKET

SEAL - rocker arm cover

4шт.

5

J928406

ISOLATOR

- noise

4шт.

6

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front, thermostat, housing & alternator mounting

1шт.

10

J914409

HOUSING

- thermostat, alternator mounting

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat, housing & alternator mounting, Includes: Ref. 11 and 12

1шт.

11

J923331

GASKET

- thermostat housing, alternator mounting

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant, housing & alternator mounting

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat, housing & alternator mounting

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat, Housing & Alternator mounting

1шт.

15

J923387

SUPPORT

- alternator mounting, thermostat & housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat, Housing & Alternator mounting

3шт.

17

A187916

ALTERNATOR,24V, 45A

ASSEMBLY - engine, see parts list Figure 4-2, thermostat & housing

1шт.

18

221425R1

FAN

- alternator, see parts list Figure 4-2, thermostat, housing & alt. mounting

1шт.

19

J908560

PULLEY

- drive, see parts list Figure 4-2, thermostat, housing & alternator mounting

1шт.

20

J908563

RETAINER

- pulley, see parts list Figure 4-2, thermostat, housing & alternator mounting

1шт.

21

J903089

SUPPORT

BRACE - alternator mounting, thermostat & housing

1шт.

22

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Thermostat, housing & alternator mounting

2шт.

23

J910715

SPACER

- alternator mounting, thermostat & housing

1шт.

24

J908226

FLANGE BOLT,Hex, M10 x 1.5 x 95mm

BOLT - heavy hex flange, 10 - 1.5 x 95 mm, thermostat, housing & alternator mounting

1шт.

25

892-11010

LOCK WASHER,M10

Thermostat, housing & alternator mounting M10

1шт.
