Запчасти Case 9010B (2-054) - OIL PUMP AND OIL PAN, 4TA-390 ENGINE, *PRIOR TO P.I.N. DAC01#2001, ENGINE OIL HEATER (02) - ENGINE

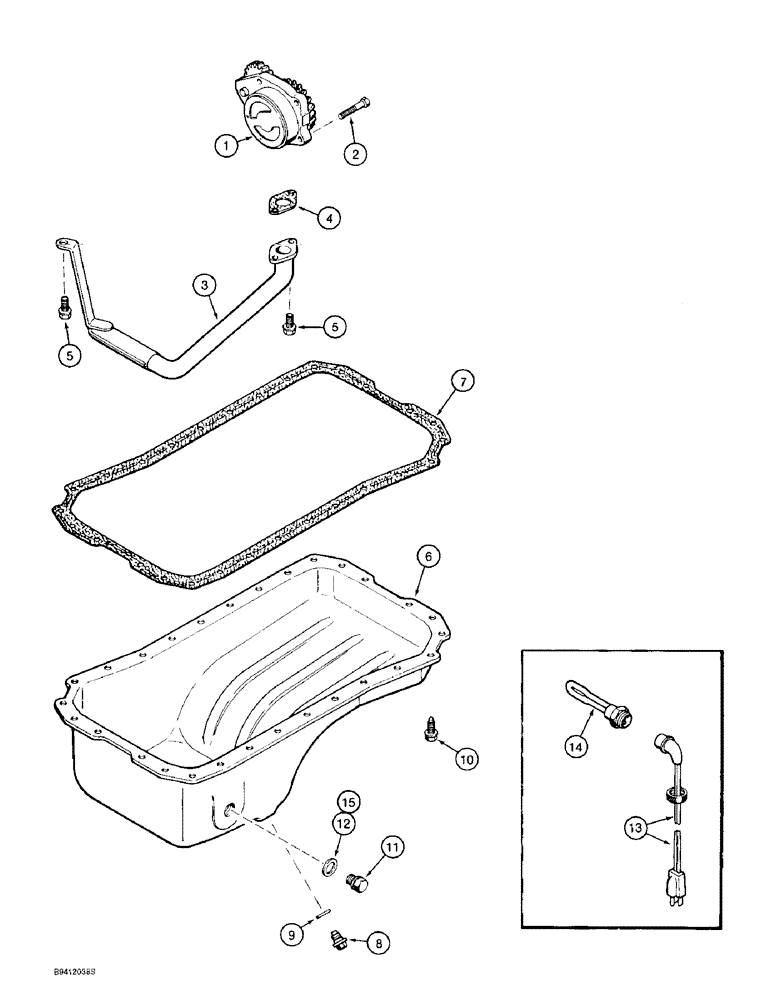

Схема запчастей Case 9010B - (2-054) - OIL PUMP AND OIL PAN, 4TA-390 ENGINE, *PRIOR TO P.I.N. DAC01#2001, ENGINE OIL HEATER (02) - ENGINE
1
4
10
2
13
15
14
9
7
5
8
3
11
6
5
12

Артикул

Название

Примечание

Количество

1

J930336

PUMP, ENGINE OIL

PUMP - oil, engine, new, replaces J926202 pump

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only; Replaces JR926202 remanufactured pump

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

J900677

BOLT,Hex

BOLT - hex, full threads, 8 - 1.25 x 30 mm

4шт.

3

J905206

TUBE,1" OD

TUBE - suction, oil, with screen

1шт.

4

J931349

GASKET

GASKET - mounting, oil suction tube, replaces J914383 gasket

1шт.

Part of oil pan gasket kit, P/N A77673.

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77673 kit shown below

1шт.

Part of oil pan gasket kit, P/N A77673.

1шт.

8

J924147

PLUG,M18 x 1.5

PLUG - hex magnetic, special, 12 mm - 1.5

1шт.

9

J920773

SEALING WASHER

WASHER - sealing, drain plug

1шт.

Part of oil pan gasket kit, P/N A77673.

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW, Hex, Flg Hd, M8 x 21, Spcl

28шт.

11

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic, special, 22 mm - 1.5, heater hole

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

A77673

GASKET KIT

KIT - gasket, oil pan, includes Refs. 4, 7 and 9

1шт.

A77490

KIT

KIT - heater, engine oil, also order Ref. 15, J902425 washer, Includes: Ref. 13 and 14

1шт.

13

196466A1

ELECTRIC CABLE

CABLE - engine block heater, replaces J905113 cable, oil

1шт.

14

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt, engine oil

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug, engine oil heater

1шт.

Выбрано товаров: 22
