(2-050) - OIL FILTER AND COOLER, 4TA-390 ENGINE, *PRIOR TO P.I.N. DAC01#2001

Запчасти Case 9010B (2-050) - OIL FILTER AND COOLER, 4TA-390 ENGINE, *PRIOR TO P.I.N. DAC01#2001 (02) - ENGINE

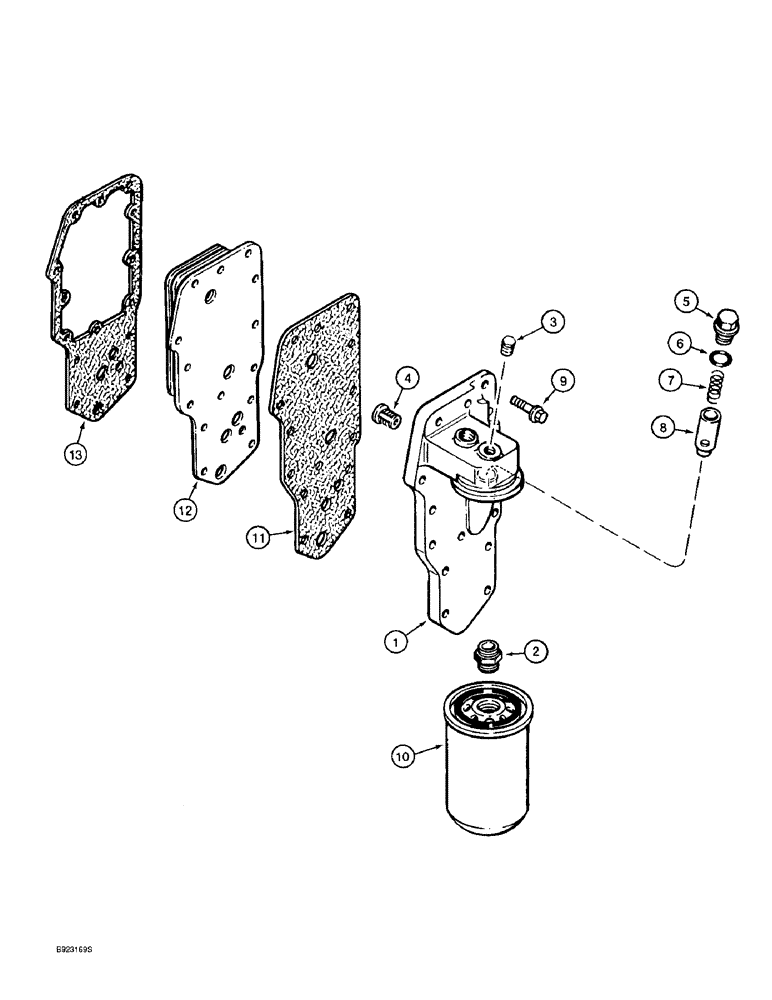

Схема запчастей Case 9010B - (2-050) - OIL FILTER AND COOLER, 4TA-390 ENGINE, *PRIOR TO P.I.N. DAC01#2001 (02) - ENGINE
10
3
11
4
6
12
2
13
7
1
9
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

J918954

HEAD

ASSEMBLY - oil filter and cooler, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - oil filter and cooler

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

4

J927622

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

5

J915787

PLUG

- threaded

1шт.

6

J929457

O-RING

- sealing, replaces J909397 O-ring

1шт.

7

J925009

SPRING

- compression

1шт.

8

J918428

PLUNGER

- regulator, pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

FILTER - engine oil, cartridge, standard

1шт.

10

J933145

FILTER

- engine oil, cartridge, premium

1шт.

11

J942915

GASKET

- filter head, replaces J918257 gasket

1шт.

12

J921557

COOLER

CORE - cooler, oil

1шт.

13

J942914

GASKET

- oil cooler core, replaces J926760 gasket

1шт.
