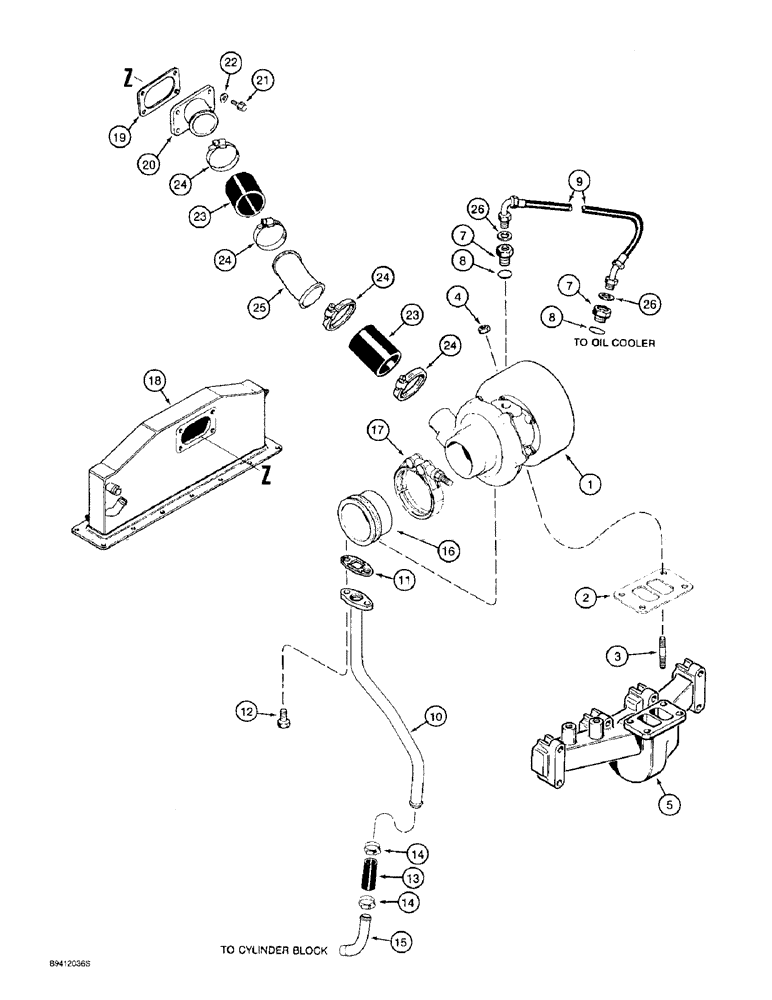

Запчасти Case 9010B (2-040) - TURBOCHARGER SYSTEM, 4TA-390 ENGINE, *PRIOR TO P.I.N. DAC01#2001 (02) - ENGINE

1

J535422

TURBOCHARGER

ASSEMBLY - engine, new, production only, order J802290 turbocharger kit, see Figure 2-44

1шт.

2

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

J818823

STUD

- turbocharger mounting, M10 x 40

4шт.

4

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5, turbocharger mounting

4шт.

5

J901635

MANIFOLD

- exhaust, see Figure 2-36 for mounting parts

1шт.

7

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Includes: Ref. 8

2шт.

8

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

9

J909545

HOSE

406 mm (16.0"), Turbocharger Supply

1шт.

10

J903741

TUBE

- turbocharger oil drain, upper

1шт.

11

J931350

GASKET

- turbo oil drain tube, replaces J914388 gasket

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

13

J903745

LARGE HOSE

HOSE - 76 mm (3 inch) long

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Turbocharger drain hose #16, 0.81/1.50 Type F Worm

2шт.

15

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

16

J910990

TUBE,64 mm ID x 72.64 mm OD x 40.50 mm L

- exhaust outlet, turbocharger to exhaust pipe

1шт.

17

A170467

CLAMP,72mm ID

- includes hardware

1шт.

18

84138943

AFTERCOOLER

- air intake, see Figure 2-36 for mounting parts, Replaces J919805

1шт.

19

J914856

GASKET,1.02mm Thk

- air crossover, Serial Range: connection,-aftercooler

1шт.

20

J914486

MANIFOLD

CONNECTION - air crossover

1шт.

21

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

4шт.

22

J918189

SEALING WASHER

WASHER - sealing

4шт.

23

J916166

INTAKE AIR HOSE

HOSE - 71 mm (2-3/4 inch) long, intake

2шт.

24

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

4шт.

25

J908776

TUBE,50.8 mm OD x 125.4 mm L

- air crossover

1шт.

26

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
