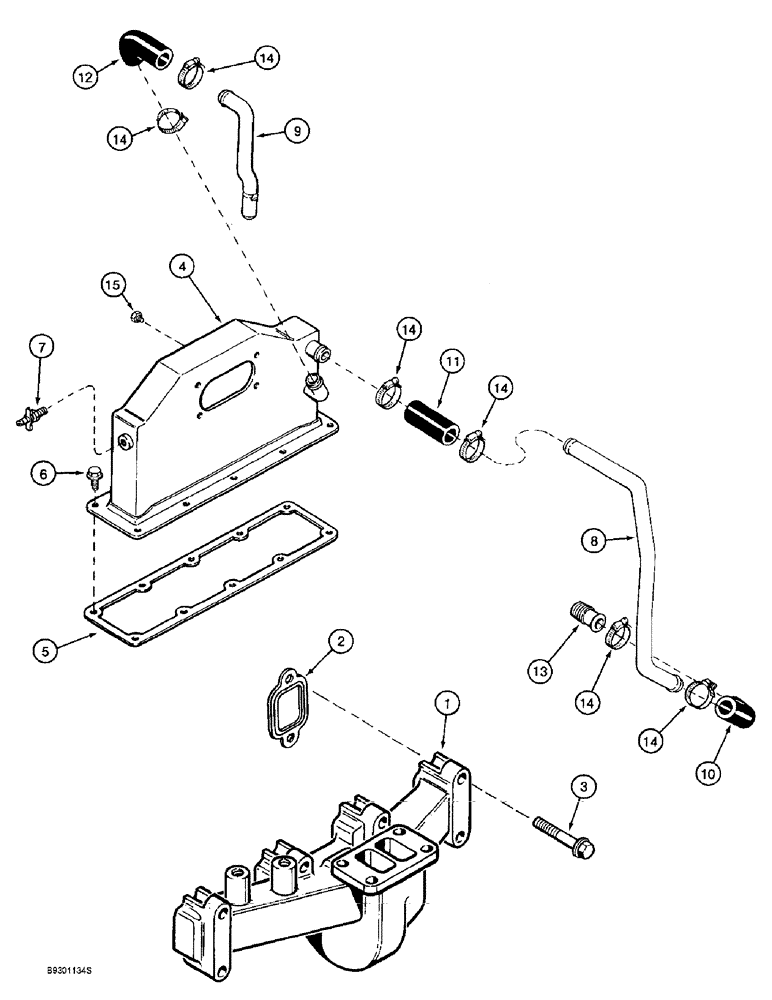

Запчасти Case 9010B (2-038) - EXHST MANFLD & INTAKE AFTCLR,4TA-390 EMSSN CERT ENG,*PIN DAC01#2001 & AFT,EXHST MANFLD,INTAKE AFTCLR (02) - ENGINE

1

J901635

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

8шт.

4

84138943

AFTERCOOLER

- air intake, Replaces J919805

1шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

- intake manifold, aftercooler

1шт.

6

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

BOLT - hex flange, special, aftercooler to cylinder head, intake

10шт.

7

J909394

COCK, DRAIN

VALVE - drain, intake aftercooler

1шт.

8

J914855

TUBE,0.75" OD

- aftercooler return, intake

1шт.

9

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

- aftercooler drain, intake

1шт.

10

J918607

HOSE,43.20 mm

to Supply Tube, Intake Aftercooler 43.20 mm

1шт.

11

J918611

HOSE,18.50 mm ID x 63.00 mm

to Aftercooler, Intake 18.50 mm ID x 63.00 mm

1шт.

12

J918608

HOSE,18.50 mm ID x 69.50 mm

- 115 mm (4-1/2 inch) long, to drain tube, intake aftercooler

1шт.

13

J282444

COUPLING

- block to hose, to supply hose, intake aftercooler

1шт.

14

J918163

CLIP

CLAMP - spring type, to tubes, intake aftercooler

6шт.

15

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT, intake aftercooler

1шт.

16

J910778

DECAL

- Caution, open during fill, installed on aftercooler, not shown, intake

1шт.
