(2-026) - RADIATOR ASSEMBLY, P.I.N. DAC01#2001 AND AFTER

Запчасти Case 9010B (2-026) - RADIATOR ASSEMBLY, P.I.N. DAC01#2001 AND AFTER (02) - ENGINE

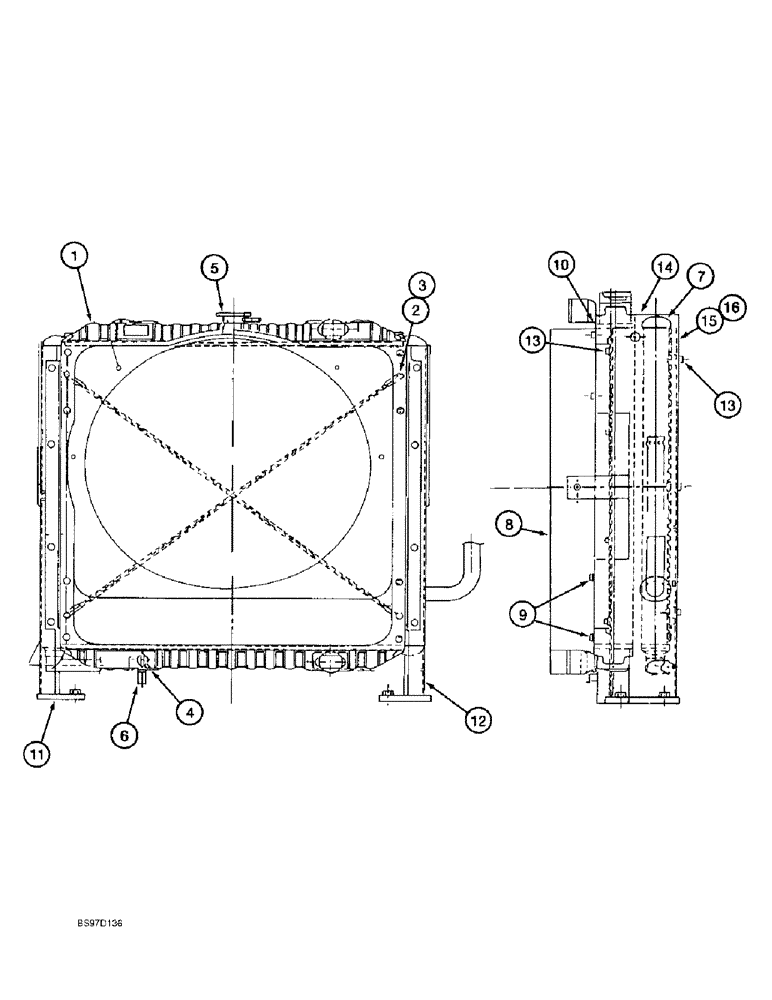

Схема запчастей Case 9010B - (2-026) - RADIATOR ASSEMBLY, P.I.N. DAC01#2001 AND AFTER (02) - ENGINE
3
10
8
15
13
5
6
7
9
13
12
16
2
1
4
11
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

RADIATOR ASSEMBLY - water and hydraulic oil cooling, not sold as an assembly, order component parts separately, Includes: Ref. 1 - 16

1шт.

1

165645A1

CORE

- radiator, cooling

1шт.

2

165650A1

ROD

- radiator

2шт.

3

165648A1

FLANGE BOLT

BOLT - flange, special

4шт.

4

156686A1

BREATHER ASSY.

ADAPTER - coolant drain hose

1шт.

5

165655A1

CAP

- radiator

1шт.

6

165642A1

HOSE

- Drain

1шт.

7

165646A1

COOLER, OIL

COOLER - oil

1шт.

8

165657A1

SHROUD

- fan

1шт.

9

164566A1

FLANGE BOLT

BOLT - with captive washer

8шт.

10

165649A1

SCREW

SEAL - packing

2шт.

11

165651A1

BRACKET

- support

1шт.

12

165652A1

BRACKET

- support

1шт.

13

164554A1

FLANGE BOLT

BOLT - with captive washer

14шт.

14

165656A1

FILTER

- radiator

1шт.

15

156606A1

BOLT,Wing, M6

BOLT - special, Replaces 156690A1

2шт.

16

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

2шт.
