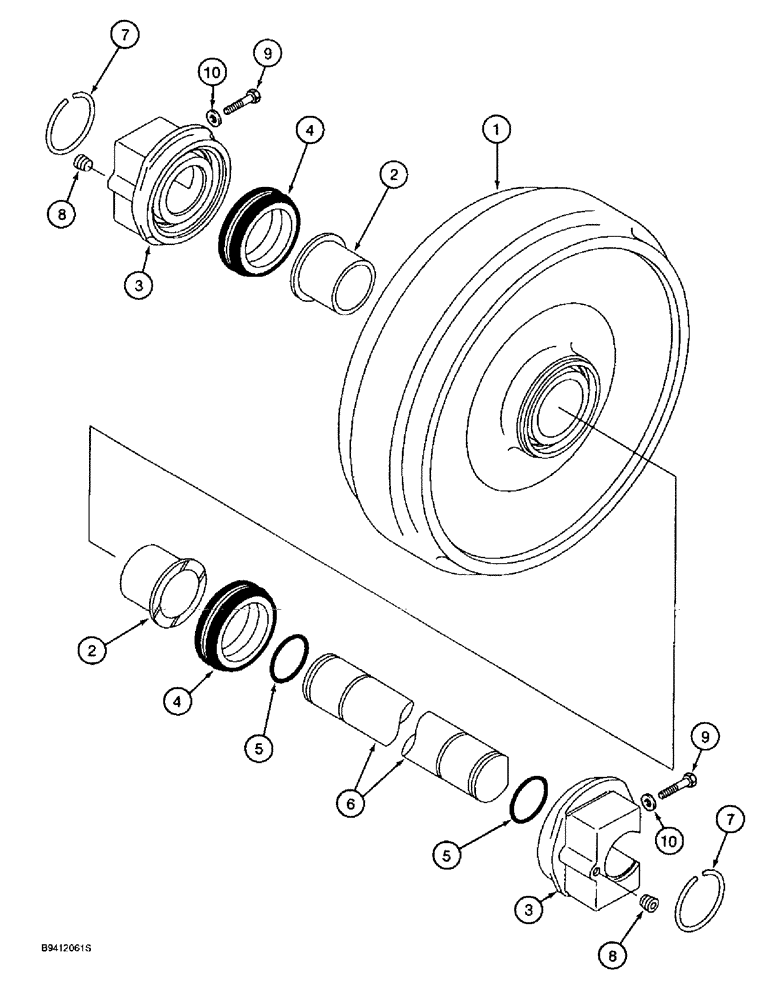

Запчасти Case 9010B (5-006) - IDLER WHEEL (11) - TRACKS/STEERING

166097A1

FLEETING PULLEY

WHEEL ASSEMBLY - idler, was 158878A1, Includes: Ref. 1 - 8

2шт.

1

166098A1

ROLLER

WHEEL - idler, track was 158879A1

2шт.

2

158882A1

BUSHING,77mm OD x 55mm L

- idler wheel

4шт.

3

158881A1

HUB

- idler support

4шт.

4

152729A1

OIL SEAL,81.5mm ID x 104.8mm OD x 29mm Thk

ASSEMBLY - face, includes two rings and two seals

4шт.

5

154607A1

O-RING

- shaft

4шт.

6

158880A1

WHEEL SHAFT

SHAFT - idler wheel

2шт.

7

150709A1

WIRE

CLIP - wire, shaft retaining

4шт.

8

150821A1

PLUG

- port, hub

4шт.

9

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.
