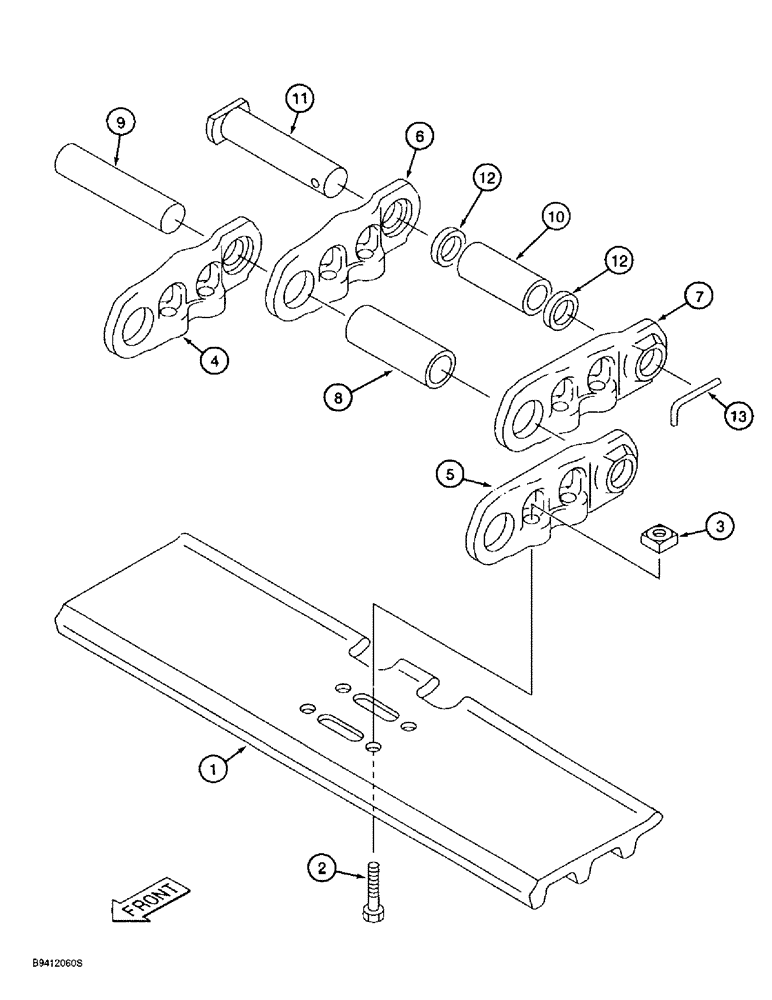

Запчасти Case 9010B (5-004) - TRACK CHAIN ASSEMBLY (11) - TRACKS/STEERING

161069A1

TRACK CHAIN

CHAIN ASSEMBLY - track, includes track shoes, Includes: Ref. 1 - 13

2шт.

1

151091A1

TRACK SHOE

SHOE - track, 600 mm (24 inch), three bar grouser

44шт.

2

161062A1

BOLT,Spher Hex, M16 x 1.5 x 46mm

BOLT - track shoe, special

176шт.

3

161063A1

NUT

- track shoe bolt, special

176шт.

161070A1

CHAIN (CE)

CHAIN ASSEMBLY - track, without shoes, Includes: Ref. 4 - 13

1шт.

4

152426A1

CHAIN (CE)

LINK - track, right-hand, standard

43шт.

5

152428A1

CHAIN (CE)

LINK - track, left-hand, standard

43шт.

6

152430A1

LINK

- master, right-hand, with head and pin hole

1шт.

7

152431A1

LINK

- master, left-hand, with head and pin hole

1шт.

8

151244A1

BUSHING

- Track

43шт.

9

150684A1

PIN

- track, for standard track link

43шт.

10

161064A1

BUSHING

- master track pin

1шт.

11

150687A1

HEADED PIN

PIN - master link

1шт.

12

152112A1

COLLAR

SPACER - bushing, master link only

2шт.

13

150690A1

LINCH PIN

PIN - lock, master track pin

1шт.
