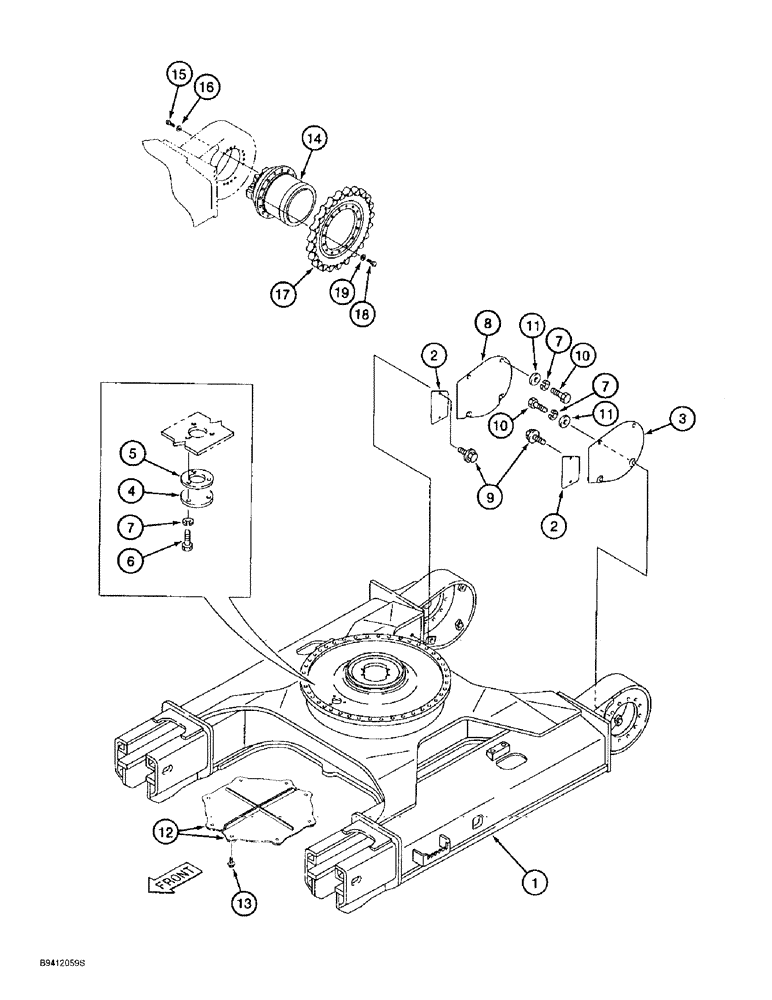

Запчасти Case 9010B (5-002) - TRACK FRAME AND DRIVE SPROCKET (11) - TRACKS/STEERING

1

160703A1

CHASSIS

FRAME - track and undercarriage

1шт.

2

160691A1

COVER

- assess, hydraulic lines to track drive motor

2шт.

3

160704A1

COVER

- access, left-hand track drive motor

1шт.

4

158929A1

LID

COVER - access, grease fill, turntable gear

1шт.

5

158930A1

CORK SEAL

GASKET - access cover

1шт.

6

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

3шт.

7

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

11шт.

8

160705A1

COVER

- access, right-hand track drive motor

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access covers

4шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9, Motor access covers

8шт.

11

150811A1

WASHER

- flat, special, 12 mm

8шт.

12

152310A1

COVER

- access, clean out, turntable gear

2шт.

13

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, access covers

8шт.

14

REF

INSTRUCTION

MOTOR ASSEMBLY - track drive, see parts list Figure 6-2

2шт.

15

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

31шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

31шт.

17

150866A1

WHEEL GEAR

SPROCKET - track drive

2шт.

18

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

31шт.

19

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

31шт.
