(9-122) - DECALS - ENGLISH LANGUAGE, OPERATOR’S COMPARTMENT

Запчасти Case 9010B (9-122) - DECALS - ENGLISH LANGUAGE, OPERATOR’S COMPARTMENT (09) - CHASSIS

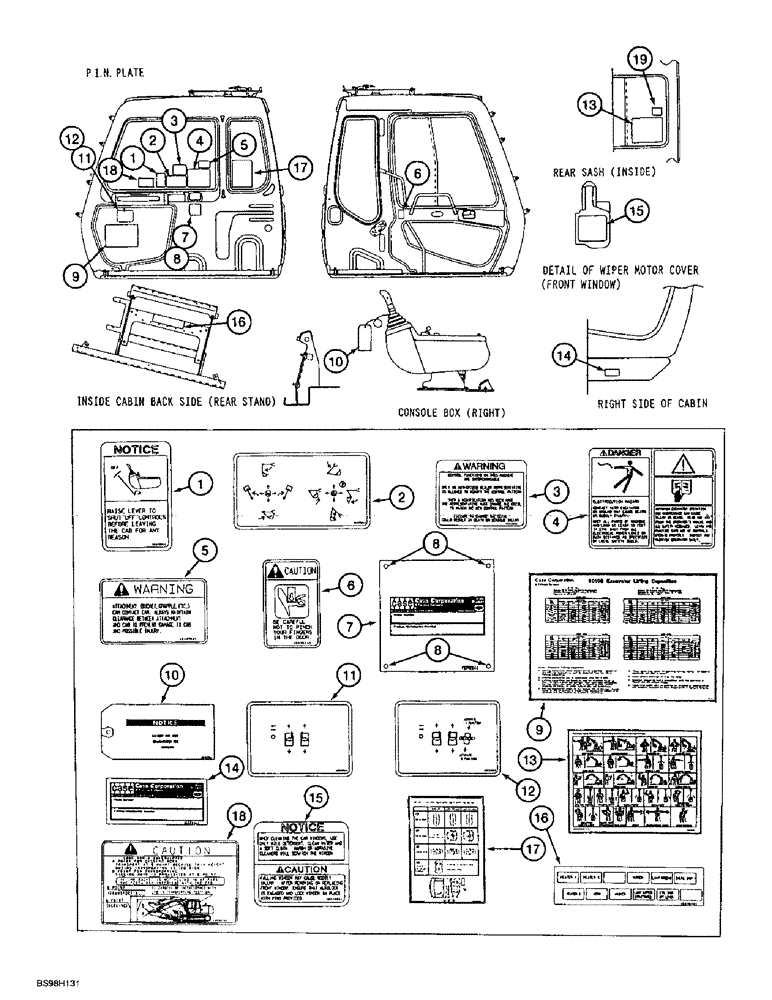

Схема запчастей Case 9010B - (9-122) - DECALS - ENGLISH LANGUAGE, OPERATOR’S COMPARTMENT (09) - CHASSIS
3
14
2
11
4
9
18
14
2
ouch!
4
6
5
18
1
15
7
11
8
10
13
17
8
10
16
16
8
17
7
5
13
1
19
6
12
12
15
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

161732A1

DECAL

- Notice, raise lever to shut off controls

1шт.

2

161459A1

DECAL

- control pattern

1шт.

3

162140A1

WARNING DECAL

DECAL - Warning, control functions on this machine are interchangeable

1шт.

4

161469A1

DECAL

- Danger, electrocution hazard

1шт.

5

161470A1

DECAL

- Warning, attachment can contact cab

1шт.

6

161461A1

DECAL

- Caution, be careful not to pinch your fingers

1шт.

7

153928A1

DECAL

PLATE - Product Identification Number, no longer available

1шт.

8

151586A1

RIVET

- blind, P.I.N. plate, no longer available

4шт.

9

163830A1

ADHESIVE

DECAL - excavator lifting capacities, replaces 161744A1, decal, Serial Range: -DAC01#2001

1шт.

9

165151A1

DECAL

- excavator lifting capacities, Start Serial: DAC01#2001

1шт.

10

151937A1

ADHESIVE STRIP

TAG - maintenance

1шт.

11

162185A1

DECAL

- foot pedal controls

1шт.

12

162186A1

DECAL

- foot pedal controls for machines with auxiliary hydraulic equipment

1шт.

13

162163A1

DECAL

- hand signal chart

1шт.

14

157995A1

DECAL

PLATE - Product Identification Number, no longer available

1шт.

15

161460A1

DECAL

- Notice, when cleaning the windows/Caution, falling window may cause

1шт.

16

161464A1

DECAL

- right-hand control console

1шт.

17

164737A1

DECAL

- auxiliary hydraulics

1шт.

18

165887A1

DECAL

- Caution, transport position for arm

1шт.

19

166118A1

DECAL

- exit cab, not shown

1шт.
