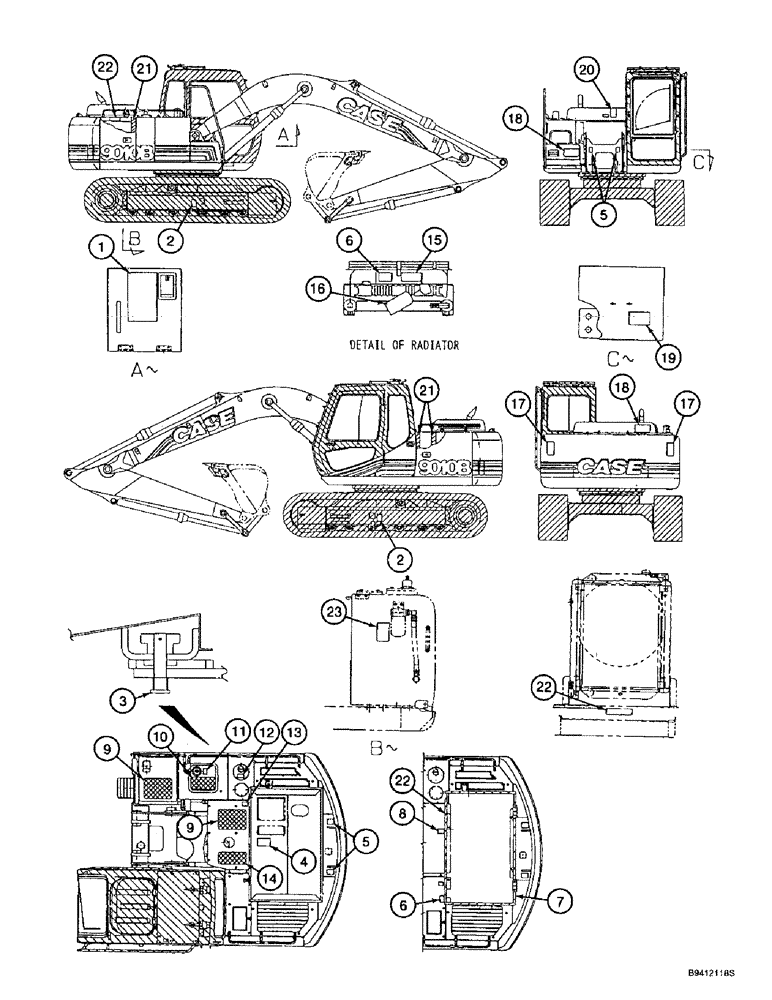

Запчасти Case 9010B (9-120) - DECALS - FRENCH LANGUAGE, WARNING, DANGER AND MISCELLANEOUS (09) - CHASSIS

1

191343A1

DECAL

- lubrication chart (French)

1шт.

2

190482A1

DECAL

- Warning, grease under pressure (French)

2шт.

3

162934A1

LARGE PLATE

PLATE - with adhesive backing, goes on button to release hood support

1шт.

4

190483A1

DECAL

- Warning, slippery and unstable surface (French), on top of fuel tank

1шт.

5

191342A1

DECAL

- lift only (French)

4шт.

6

321-4324

DECAL

- Warning, rotating fan and belts (French)

2шт.

7

163315A1

TAPE

- special, 4250 mm (167-5/16 inch)

1шт.

8

158287A1

DECAL

- Danger, starting in gear can cause death (French)

1шт.

9

162935A1

ANTI-SKID STRIP

TAPE - non-skid

2шт.

10

150108A1

ANTI-SKID STRIP

STRIP - adhesive, anti-skid, on top of fuel tank

1шт.

11

190489A1

DECAL

- diesel fuel (French)

1шт.

12

190478A1

DECAL

- Caution, hot hydraulic fluid (French)

1шт.

13

321-6720

DECAL

- Warning, wrong jumper cable connections to starter terminals (French)

1шт.

14

162936A1

ADHESIVE STRIP

TAPE - non-skid

1шт.

15

321-6701

DECAL

- Warning, check and service cooling system (French)

1шт.

16

158280A1

DECAL

TAG - antifreeze notice (French)

1шт.

17

158285A1

DECAL

- Danger, keep clear of swinging upper (French)

2шт.

18

158284A1

DECAL

- Warning, stay away from machine if close to power line (French)

2шт.

19

321-6719

DECAL

- Warning, batteries contain acid and explosive gas (French)

1шт.

20

190484A1

DECAL

- Warning, falling engine hood (French)

1шт.

21

162939A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

3шт.

22

190503A1

DECAL

- Warning, hot surfaces (French)

3шт.

23

190479A1

DECAL

- to check oil level (French)

1шт.
