Запчасти Case 9010B (9-108) - MCF BUCKETS, GENERAL PURPOSE AND HEAVY DUTY, CTR CUTTING EDGES,TEETH & ADAPTER (09) - CHASSIS

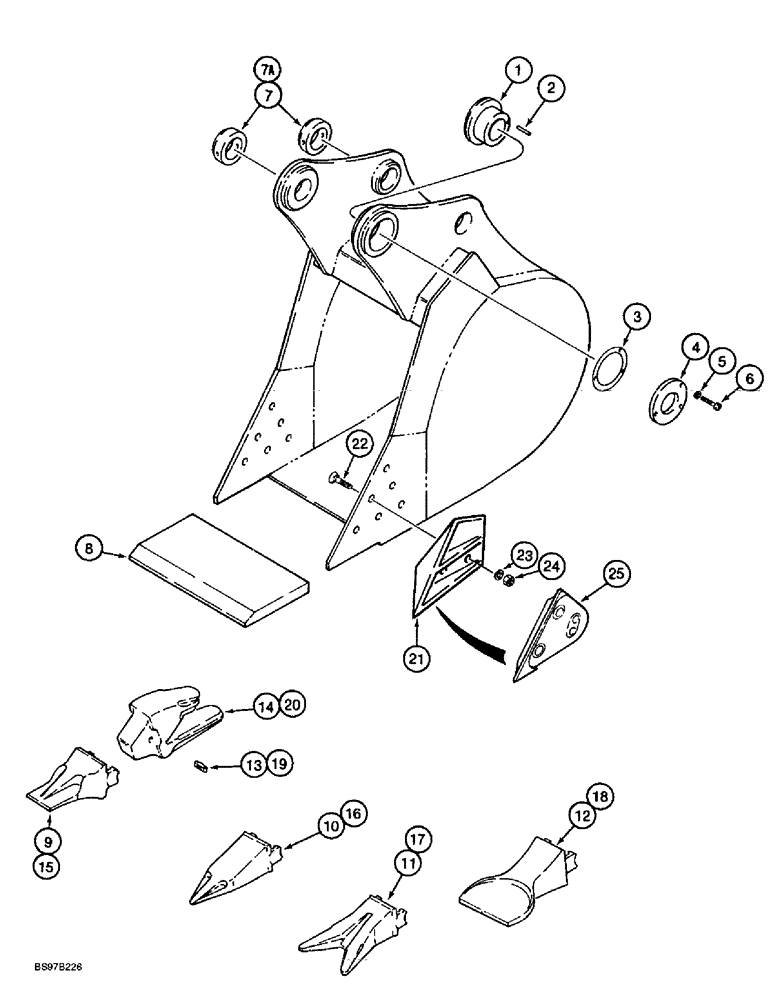

Схема запчастей Case 9010B - (9-108) - MCF BUCKETS, GENERAL PURPOSE AND HEAVY DUTY, CTR CUTTING EDGES,TEETH & ADAPTER (09) - CHASSIS
16
6
5
13
12
10
1
14
25
9
3
18
17
19
21
15
20
22
4
8
23
11
7
24
2
7a

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BUCKET - 620 mm (24 inch), with 4 teeth, 0.47 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.63 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.78 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 6 teeth, 0.92 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.05 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 620 mm (24 inch), with 4 teeth, 0.47 cu. yd., heavy duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.63 cu. yd., heavy duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.78 cu. yd., heavy duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 6 teeth, 0.92 cu. yd., heavy duty

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.05 cu. yd., heavy duty, Includes: Ref. 1 - 25

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

233811A1

BUSHING

- adjustable, bucket assembly, heavy duty

1шт.

2

233814A1

PIN

- dowel, special, bucket assembly, heavy duty

1шт.

3

233812A1

SHIM

- adjustable bushing, bucket assembly, heavy duty

6шт.

4

233813A1

COVER

PLATE - cover, adjustable bushing, bucket assembly, heavy duty

1шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Bucket Assembly, Heavy Duty M12

4шт.

6

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

Bucket assembly, heavy duty Hex, M12 x 50, 8.8

4шт.

7

233809A1

COLLAR

BUSHING - non-adjustable, with locking collar, used with general purpose buckets, heavy duty

2шт.

7a

233809A1

COLLAR

BUSHING - non-adjustable, with locking collar, used with heavy duty buckets

2шт.

8

257025A1

EDGE

- cutting, center, 620 mm (24 inch) bucket, general purpose

1шт.

8

257026A1

EDGE

- cutting, center, 762 mm (30 inch) bucket, general purpose

1шт.

8

257027A1

EDGE

- cutting, center, 914 mm (36 inch) bucket, general purpose

1шт.

8

257028A1

EDGE

- cutting, center, 1067 mm (42 inch) bucket, general purpose

1шт.

8

257029A1

EDGE

- cutting, center, 1219 mm (48 inch) bucket, general purpose

1шт.

8

257030A1

EDGE

- cutting, center, 620 mm (24 inch) bucket, general purpose, heavy duty

1шт.

8

257031A1

EDGE

- cutting, center, 762 mm (30 inch) bucket, general purpose, heavy duty

1шт.

8

257032A1

EDGE

- cutting, center, 914 mm (36 inch) bucket, general purpose, heavy duty

1шт.

8

257033A1

EDGE

- cutting, center, 1067 mm (42 inch) bucket, general purpose, heavy duty

1шт.

8

257034A1

EDGE

- cutting, center, 1219 mm (48 inch) bucket, general purpose, heavy duty

1шт.

9

127558A1

BUCKET TOOTH

TOOTH - standard, adapter, general purpose bucket

1шт.

10

241814A1

BUCKET TOOTH

TOOTH - tiger point, adapter, general purpose bucket

1шт.

11

241813A1

TOOTH

- twin tiger point, adapter, general purpose bucket

1шт.

12

241812A1

TOOTH

- spade point, 127 mm (5 inch) wide, adapter, general purpose bucket

1шт.

13

233792A1

BUCKET TOOTH KEY

PIN - tooth to shank, adapter, general purpose bucket

1шт.

14

127557A1

ADAPTER

SHANK - tooth, adapter, general purpose bucket

1шт.

15

233794A1

BUCKET TOOTH

TOOTH - standard point, adapter, heavy duty bucket

1шт.

16

241817A1

TOOTH

- tiger point, adapter, heavy duty bucket

1шт.

17

241816A1

TOOTH

- twin tiger point, adapter, heavy duty bucket

1шт.

18

241815A1

TOOTH

- spade point, 152 mm (6 inch) wide, adapter, heavy duty bucket

1шт.

19

233795A1

BUCKET TOOTH KEY

PIN - tooth to shank, adapter, heavy duty bucket

1шт.

20

233793A1

ADAPTER

SHANK - tooth, adapter, heavy duty bucket

1шт.

21

241820A1

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side, 38.1 mm (1-1/2 inch) thick, wear shroud

1шт.

21

242797A1

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side, 38.1 mm (1-1/2 inch) thick, wear shroud

1шт.

21

244960A1

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side, 50.8 mm (2 inch) thick, wear shroud

1шт.

21

244958A1

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side, 50.8 mm (2 inch) thick, wear shroud

1шт.

22

320-21456

CARRIAGE BOLT,#3, 7/8" - 9 x 3 1/2", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3-1/2 inch, grade 8, side cutting edge, wear shroud

6шт.

23

392-21088

LOCK WASHER,7/8"

side cutting edge, wear shroud 7/8"

6шт.

24

329-1014

NUT,7/8"-9, G8

Side cutting edge, wear shroud 7/8"-9, G8

6шт.

25

244961A1

SHROUD

- wear, bucket, side cutting edge

2шт.

Выбрано товаров: 58
