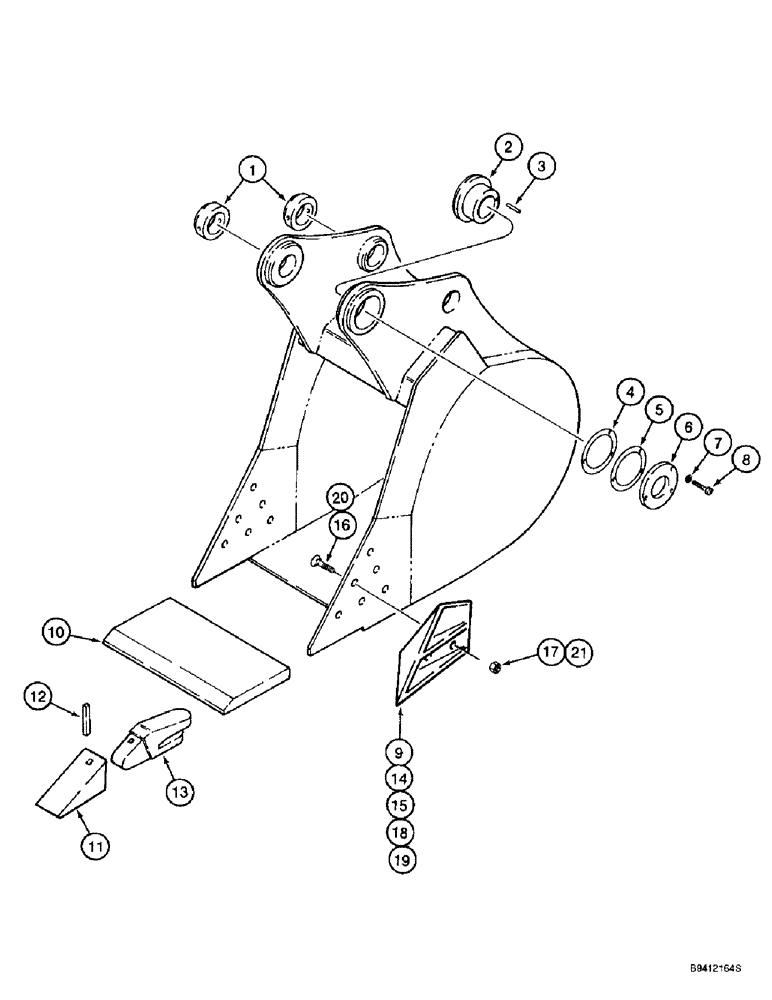

Запчасти Case 9010B (9-104) - H & H BUCKETS,GENERAL PURPOSE & HVY DTY-STD CAPACITY BUCKET ASSEMBLIES, GENERAL PURPOSE, HEAVY DUTY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.49 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.65 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.76 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 6 teeth, 0.92 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.49 cu. yd., heavy duty, standard capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.64 cu. yd., heavy duty, standard capacity

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.76 cu. yd., heavy duty, standard capacity, Includes: Ref. 1 - 13

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125658A1

LATCH

BUSHING - bucket, with locking collar, heavy duty, standard capacity

2шт.

2

125653A1

BUSHING

- bucket, adjustable, heavy duty, standard capacity

1шт.

3

125657A1

PIN

- dowel, special, bucket assembly, heavy duty, standard capacity

2шт.

4

125654A1

SHIM

- plate mounting, bucket assembly, heavy duty, standard capacity

1шт.

5

125655A1

SHIM

- plate mounting, bucket assembly, heavy duty, standard capacity

1шт.

6

125656A1

RETAINER

PLATE - bushing, bucket assembly, heavy duty, standard capacity

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Bucket assembly, heavy duty, standard capacity 1/2"

3шт.

8

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

Bucket assembly, heavy duty, standard capacity Hex, 1/2"-13 x 2", G8

3шт.

9

NSS

NOT SOLD SEPARAT

EDGE - cutting, side, see side cutter blade kits below, bucket assembly, heavy duty, standard capacity

2шт.

10

125711A1

PLATE

EDGE - cutting, 29 (1-1/4) x 610 mm (24 inch) bucket, heavy duty, standard capacity

1шт.

10

125712A1

PLATE

EDGE - cutting, 29 (1-1/4) x 762 mm (30 inch) bucket, heavy duty, standard capacity

1шт.

10

125713A1

PLATE

EDGE - cutting, 29 (1-1/4) x 914 mm (36 inch) bucket, heavy duty, standard capacity

1шт.

10

125714A1

PLATE

EDGE - cutting, reversible, 29 (1-1/4) x 1067 mm (42 inch) bucket, heavy duty, standard capacity

1шт.

11

122665A1

TOOTH

- standard point, bucket assembly, heavy duty, standard capacity

1шт.

See Figures 9-112 and 9-114 for point, pin and shank options.

1шт.

12

N14173

PIN,12.7mm OD x 76.2mm L

- flex, point, bucket assembly, heavy duty, standard capacity

1шт.

See Figures 9-112 and 9-114 for point, pin and shank options.

1шт.

13

122667A1

BUCKET TOOTH SHANK

SHANK - tooth, also called an adapter, bucket assembly, heavy duty, standard capacity

1шт.

See Figures 9-112 and 9-114 for point, pin and shank options.

1шт.

112985A1

EDGE, CUTTING

KIT - side cutter blade, 3 inch, bucket assembly, heavy duty, standard capacity, Includes: Ref. 14 - 17

1шт.

14

125922A1

CUTTER

BLADE - sidecutter, left-hand, 3 inch, bucket assembly, heavy duty, standard capacity

1шт.

15

125924A1

CUTTER

BLADE - sidecutter, right-hand, 3 inch, bucket assembly, heavy duty, standard capacity

1шт.

16

320-21440

CARRIAGE BOLT,#3, 7/8" - 9 x 2 1/2", Gr 8

BOLT - plow, #3 head, 7/8 NC x 2-1/2 inch, grade 8, bucket assembly, heavy duty, standard capacity

10шт.

17

232-41314

LOCK NUT,7/8"-9, GC

NUT, LOCK, , Bucket assembly, heavy duty, standard capacity 7/8"-9, GC

10шт.

112732A1

KIT

- side cutter blade, 4 inch, bucket assembly, heavy duty, standard capacity, Includes: Ref. 18 - 21

1шт.

18

125926A1

CUTTER

BLADE - sidecutter, left-hand, 4 inch, bucket assembly, heavy duty, standard capacity

1шт.

19

125928A1

CUTTER

BLADE - sidecutter, right-hand, 4 inch, bucket assembly, heavy duty, standard capacity

1шт.

20

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3 inch, grade 8, bucket assembly, heavy duty, standard capacity

10шт.

21

232-41314

LOCK NUT,7/8"-9, GC

NUT, LOCK, , Bucket assembly, heavy duty, standard capacity 7/8"-9, GC

10шт.

22

112731A1

CATALOG

RIPPER - frost, with one tooth, not shown, bucket assembly, heavy duty, standard capacity

1шт.

Frost ripper art and parts list information to be provided at a later date.

1шт.
