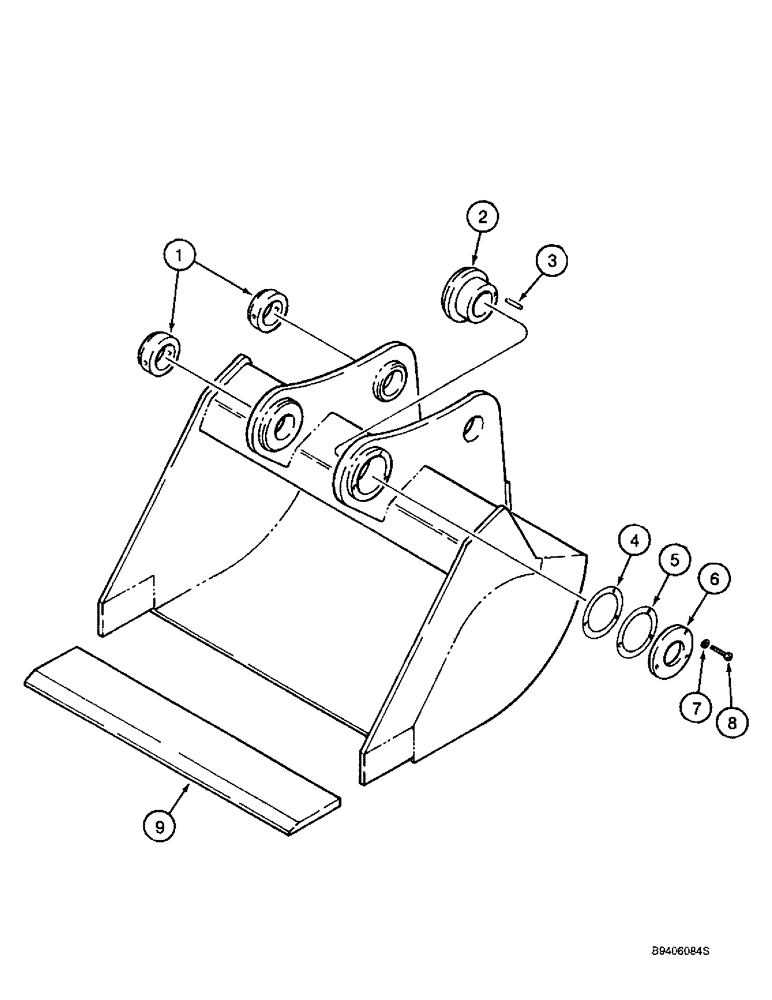

Запчасти Case 9010B (9-102) - CENTRAL FABRICATORS BUCKETS, DITCH, DITCH BUCKET ASSEMBLY (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY - 1220 mm (48 inch), 0.67 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET ASSEMBLY - 1524 mm (60 inch), 0.90 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122700A1

RING

BUSHING - bucket, with locking collar, Includes: Ref. 3

2шт.

2

122696A1

BUSHING

- bucket, adjustable, Includes: Ref. 3

1шт.

3

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened

1шт.

4

122697A1

SHIM

- plate mounting, 0.039 inch thick

1шт.

5

122698A1

SHIM

- plate mounting, 0.02 inch thick

1шт.

6

122699A1

RETAINER

PLATE - bushing

1шт.

7

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

3шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9

3шт.

9

125034A1

PLATE

EDGE - cutting, center, 1219 mm (48 inch) bucket

1шт.

9

125035A1

PLATE

EDGE - cutting, center, 1524 mm (60 inch) bucket

1шт.
