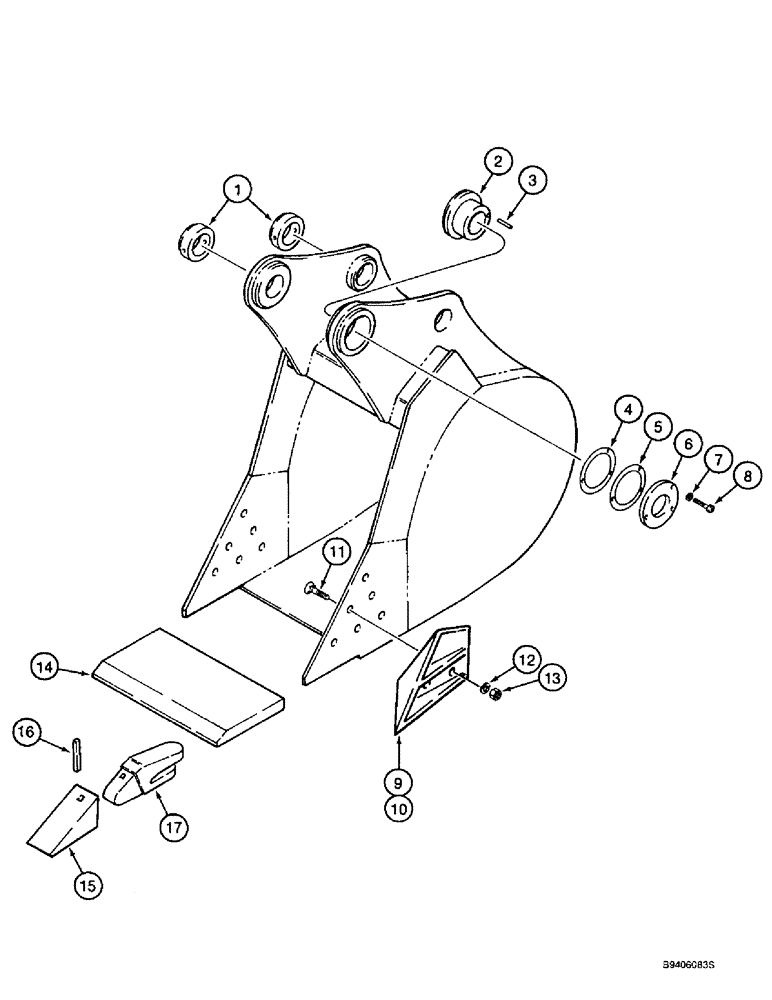

Запчасти Case 9010B (9-100) - CENTRL FABRCTR BUCKTS,GEN PURP & HEAVY DUTY BUCKET ASSY, GENERAL PURPOSE, STD., HEAVY DUTY STANDARD (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.50 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.64 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.78 cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 6 teeth, 0.92cu. yd.

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 610 mm (24 inch), with 4 teeth, 0.50 cu. yd., heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.64 cu. yd., heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 0.78 cu. yd., heavy duty, standard, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122700A1

RING

BUSHING - bucket, with locking collar, heavy duty, standard, Includes: Ref. 3

2шт.

2

122696A1

BUSHING

- bucket, adjustable, heavy duty, standard, Includes: Ref. 3

1шт.

3

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened, bucket assembly, heavy duty, standard

1шт.

4

122697A1

SHIM

- plate mounting, 0.039 inch thick, bucket assembly, heavy duty, standard

1шт.

5

122698A1

SHIM

- plate mounting, 0.02 inch thick, bucket assembly, heavy duty, standard

1шт.

6

122699A1

RETAINER

PLATE - bushing, bucket assembly, heavy duty, standard

1шт.

7

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm, Bucket assembly, heavy duty, standard

3шт.

8

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

BOLT - hex socket, 14 - 2.0 x 50 mm, class 12.9, bucket assembly, heavy duty, standard

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, 6 inch, bucket assembly, heavy duty, standard, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side, heavy duty, standard

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side, heavy duty, standard

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3 inch, grade 8, bucket assembly, heavy duty, standard

6шт.

12

392-21088

LOCK WASHER,7/8"

bucket assembly, heavy duty, standard 7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

Bucket assembly, heavy duty, standard 7/8"-9, G8

6шт.

14

125015A1

PLATE

EDGE - cutting, center, 29 (1-1/4) x 610 mm (24 inch) bucket, bucket assembly, heavy duty, standard

1шт.

14

125016A1

PLATE

EDGE - cutting, center, 29 (1-1/4) x 762 mm (30 inch) bucket, heavy duty, standard

1шт.

14

125017A1

PLATE

EDGE - cutting, center, 29 (1-1/4) x 914 mm (36 inch) bucket, heavy duty, standard

1шт.

14

125018A1

PLATE

EDGE - cutting, center, 29 (1-1/4) x 1067 mm (42 inch) bucket, heavy duty, standard

1шт.

15

122665A1

TOOTH

- standard point, bucket assembly, heavy duty, standard

1шт.

See Figures 9-112 and 9-114 for point, pin and shank options.

1шт.

16

N14173

PIN,12.7mm OD x 76.2mm L

- flex, point, bucket assembly, heavy duty, standard

1шт.

See Figures 9-112 and 9-114 for point, pin and shank options.

1шт.

17

122667A1

BUCKET TOOTH SHANK

SHANK - tooth, also called an adapter, bucket assembly, heavy duty, standard

1шт.

See Figures 9-112 and 9-114 for point, pin and shank options.

1шт.
