(9-096) - ARM AND CYLINDER, 2.5 M (8 FT. 2 INCH) ARM

Запчасти Case 9010B (9-096) - ARM AND CYLINDER, 2.5 M (8 FT. 2 INCH) ARM (09) - CHASSIS

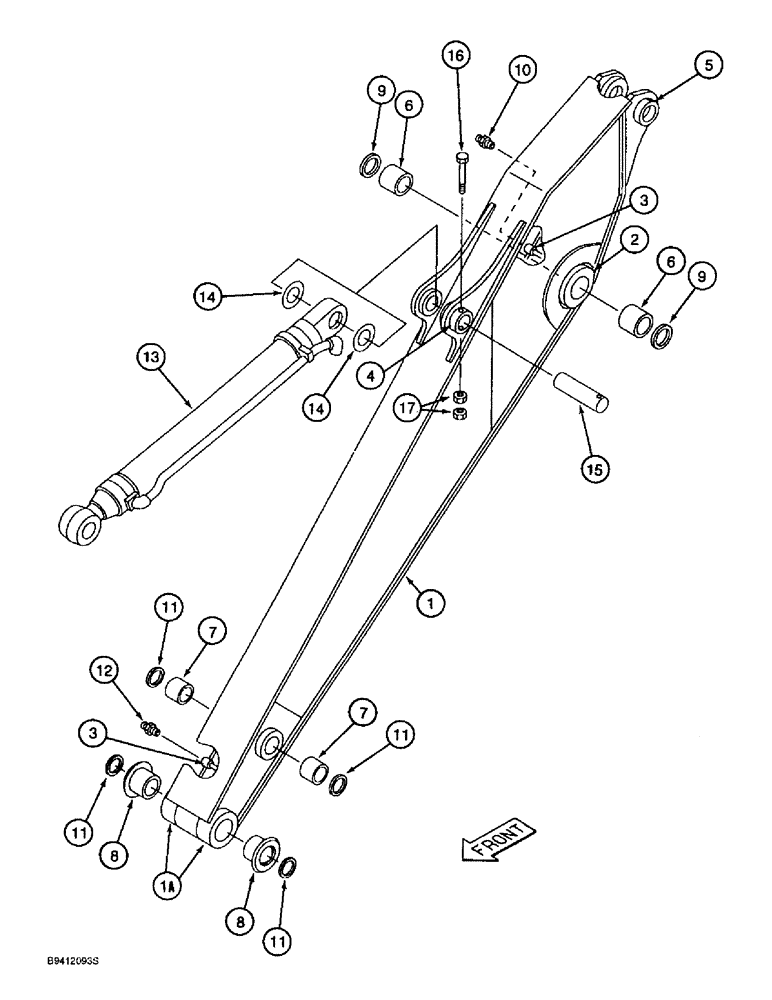

Схема запчастей Case 9010B - (9-096) - ARM AND CYLINDER, 2.5 M (8 FT. 2 INCH) ARM (09) - CHASSIS
3
4
8
17
1a
6
2
11
12
6
3
16
16
7
8
11
1
9
10
13
14
11
9
5
11
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

165130A1

DIPPER

ARM - excavator, short, 2.5 M (8 ft 2 inch), replaces 160740A1, arm, Includes: Ref. 1 - 5

1шт.

1

160732A1

BOSS

- arm, special

2шт.

2

160737A1

BOSS

- forged, special

2шт.

3

151365A1

FITTING

ADAPTER - special

2шт.

4

160675A1

COLLAR

- pin retaining

1шт.

5

160676A1

COLLAR

- boom, special

1шт.

6

160722A1

BUSHING

- special

2шт.

7

150128A1

BUSHING,65mm ID x 80mm OD x 50mm L

- steel

2шт.

8

160723A1

RING,65mm ID x 133mm OD x 75mm L

BUSHING - special

2шт.

9

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

- dust

2шт.

10

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

11

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

- dust

4шт.

12

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

13

160752A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 95 (3-3/4) ID x 924 mm (36-3/8 inch) stroke, bucket, see parts list Figure 8-144

1шт.

14

160734A1

SHIM

- plate, bucket cylinder closed end

2шт.

15

160730A1

PIN,65mm OD x 214mm L

- attaching, bucket cylinder

1шт.

16

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

1шт.

17

829-13416

NUT,M16 x 1.5, Cl 10

- hex, 16 mm - 1.5, class 10

2шт.
