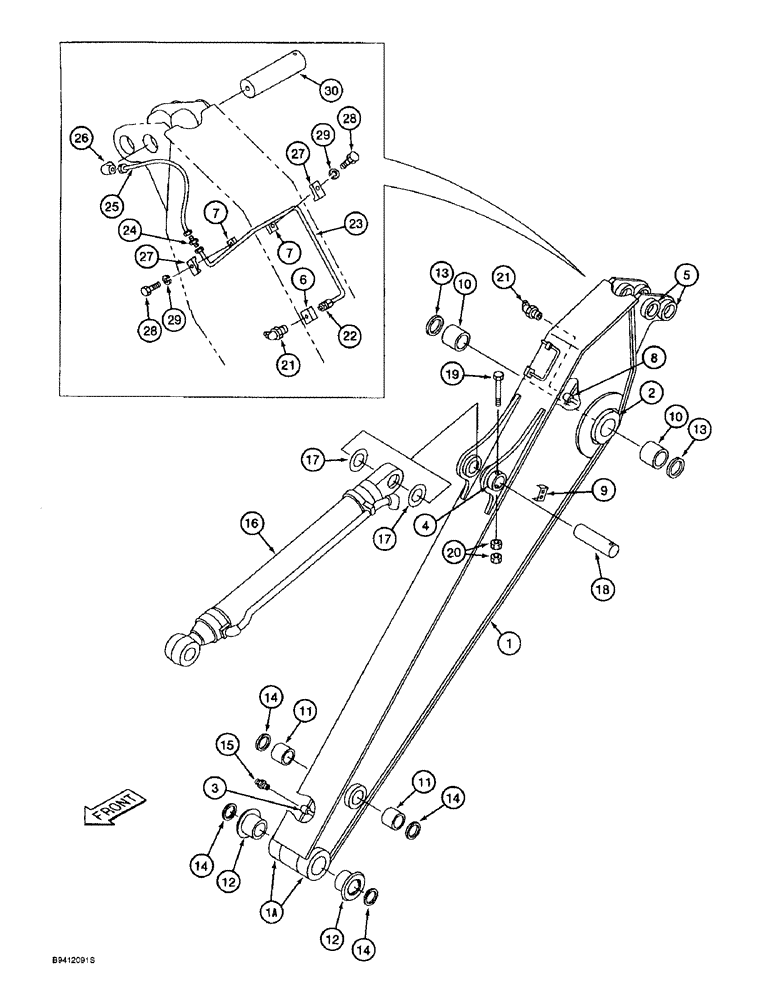

Запчасти Case 9010B (9-094) - ARM AND CYLINDER, 3.0 M (9 FT. 10 INCH) ARM (09) - CHASSIS

1

165138A1

DIPPER

ARM - excavator, long, 3.0 M (9 ft 10 inch), replaces 161716A1, arm, Includes: Ref. 1A - 12

1шт.

1a

160732A1

BOSS

- arm, special

2шт.

2

160737A1

BOSS

- forged, special

2шт.

3

151365A1

FITTING

ADAPTER - special

1шт.

4

160675A1

COLLAR

- pin retaining

1шт.

5

160676A1

COLLAR

- boom, special

2шт.

6

163291A1

MANIFOLD

ADAPTER - special, grease fitting

1шт.

7

150730A1

BAR

- base

2шт.

8

163292A1

FITTING

ADAPTER - special

1шт.

9

163293A1

BAR

- base

2шт.

10

160722A1

BUSHING

- special, attaching pin

2шт.

11

150128A1

BUSHING,65mm ID x 80mm OD x 50mm L

- steel

2шт.

12

160723A1

RING,65mm ID x 133mm OD x 75mm L

BUSHING - special

2шт.

13

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

- dust

2шт.

14

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

- dust

4шт.

15

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

16

160752A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 95 (3-3/4) ID x 924 mm (36-3/8 inch) stroke, bucket, see parts list Figure 8-144

1шт.

17

160734A1

SHIM

- plate, bucket cylinder closed end

2шт.

18

160730A1

PIN,65mm OD x 214mm L

- attaching, bucket cylinder

1шт.

19

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

1шт.

20

829-13416

NUT,M16 x 1.5, Cl 10

- hex, 16 mm - 1.5, class 10

2шт.

21

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

2шт.

22

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special, replaces 157984A1, straight adapter

1шт.

23

163294A1

TUBE ASSY.

TUBE - lubrication

1шт.

28

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

2шт.

24

152032A1

UNION

CONNECTOR - straight

1шт.

25

153698A1

HOSE

- 370 mm (14-1/2 inch) long

1шт.

26

163319A1

ELBOW

- 90 degree, special

1шт.

27

151504A1

CLAMP

- lubrication line, single type

2шт.

29

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

30

163295A1

PIN

- attaching, bucket link

1шт.
