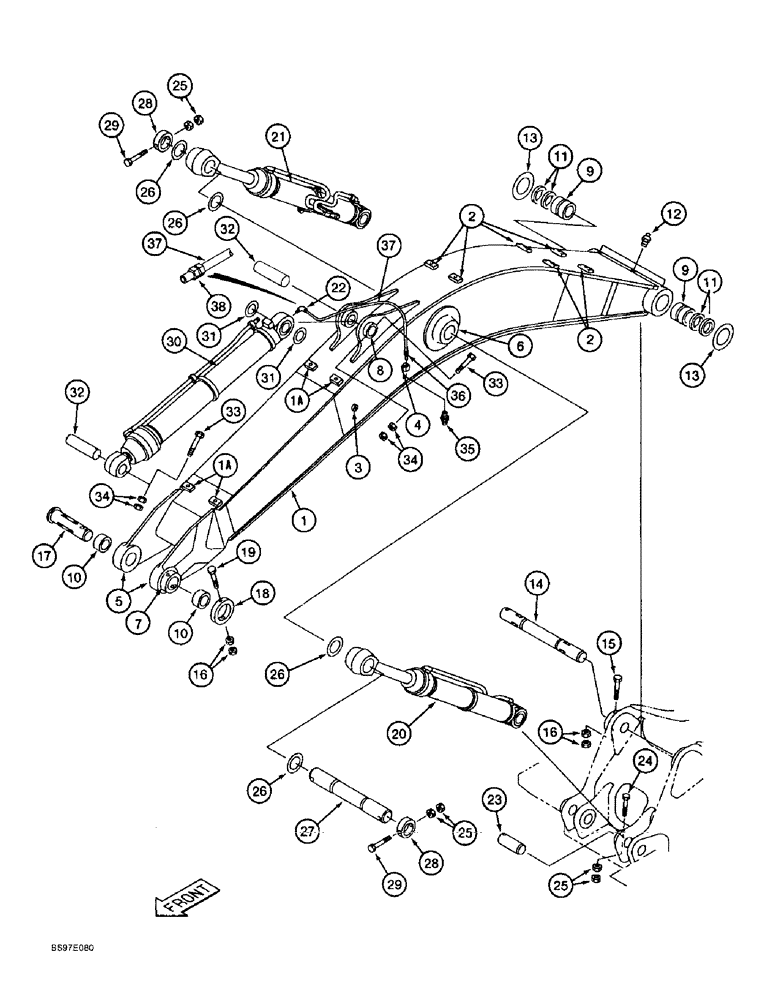

Запчасти Case 9010B (9-092) - BOOM, MOUNTING PINS, CYLINDERS AND LUBRICATION LINE (09) - CHASSIS

1

165131A1

BOOM

ASSEMBLY - excavator, replaces 160741A1 boom assembly, Includes: Ref. 1A - 8

1шт.

1a

151255A1

BAR

- base

4шт.

2

152014A1

BAR

- base

6шт.

3

150255A1

BAR

- base

1шт.

4

160670A1

BAR

- base

1шт.

5

160738A1

BOSS

- forged, special

2шт.

6

160731A1

BOSS

- forged, special

2шт.

7

159651A1

COLLAR

- boom, special

1шт.

8

160676A1

COLLAR

- boom, special

1шт.

9

160718A1

BUSHING,75mm ID x 90mm OD x 75mm L

- boom, special

2шт.

10

160720A1

BUSHING

- boom, special

2шт.

11

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

- dust

4шт.

12

153630A1

LUBE NIPPLE

FITTING - grease, straight

3шт.

13

160733A1

SHIM

- plate

2шт.

14

160721A1

PIN,75mm OD x 747mm L

- attaching, boom

1шт.

15

514-1223

BOLT,Hex, M20 x 1.5 x 150mm, Cl 10.9

BOLT - hex, 20 - 1.5 x 150 mm, class 10.9, boom pin

1шт.

16

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm - 1.5, class 10

4шт.

17

160739A1

PIN

- attaching, arm

1шт.

18

160719A1

COLLAR CLAMP

COLLAR - pin retaining

1шт.

19

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

- hex, 20 - 1.5 x 170 mm, class 10.9, arm pin

1шт.

20

160748A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 100 (3-15/16) ID x 1081 mm (42-9/16 inch) stroke, boom, left-hand, parts list Figures 8-126, machines without load hold

1шт.

20

163442A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 100 (3-15/16) ID x 1081 mm (42-9/16 inch) stroke, boom, parts list Figures 8-132, machines with load hold

1шт.

21

160747A1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 100 (3-15/16) ID x 1081 mm (42-9/16 inch) stroke, boom, right-hand, parts list Figures 8-126, machines without load hold

1шт.

21

163439A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 100 (3-15/16) ID x 1081 mm (42-9/16 inch) stroke, boom, right-hand, parts list Figures 8-132, machines with load hold

1шт.

22

152838A1

FITTING

ELBOW - 90 degree, grease line, if used

1шт.

23

160729A1

PIN

- attaching, boom cylinders

2шт.

24

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

2шт.

25

829-13416

NUT,M16 x 1.5, Cl 10

- hex, 16 mm - 1.5, class 10

8шт.

26

160745A1

ADJUSTING PLATE

SHIM - plate, boom cylinder rod end

4шт.

27

160727A1

PIN

- attaching, boom cylinders

1шт.

28

160728A1

COLLAR

- pin retaining

2шт.

29

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

2шт.

30

160736A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1205 mm (47-7/16 inch) stroke, arm, parts list Figures 8-136, machines without load hold

1шт.

30

163449A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1205 mm (47-7/16 inch) stroke, arm, parts list Figure 8-142, machines with load hold

1шт.

31

160735A1

ADJUSTING PLATE

SHIM - plate, arm cylinder closed end

2шт.

32

160749A1

PIN

- attaching, arm cylinder

2шт.

33

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

2шт.

34

829-13416

NUT,M16 x 1.5, Cl 10

- hex, 16 mm - 1.5, class 10

4шт.

35

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

36

150190A1

FITTING

CONNECTOR - nylon tube

1шт.

37

152549A1

TUBE,4.32 mm ID, 6.35 mm OD

4.32 mm ID - Lubrication line, Cylinder lubrication, Replaces 160679A1, tube

1шт.

38

150190A1

FITTING

CONNECTOR - nylon tube, if used

1шт.
