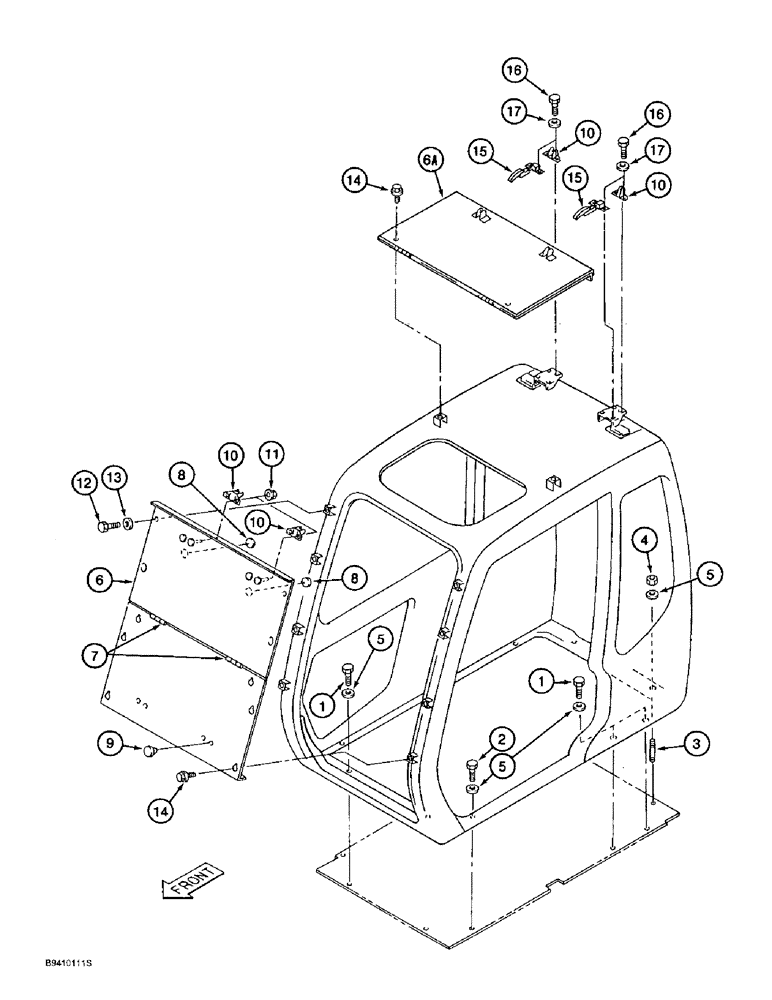

Запчасти Case 9010B (9-058) - CAB VANDAL GUARDS (09) - CHASSIS
16
10
12
1
14
10
17
17
10
6a
14
5
7
15
4
3
5
5
2
13
10
1
8
16
6
8
15
11
9
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9
- hex, 12 - 1.75 x 60 mm, class 10.9
6шт.
2
862-12020
HEX SOC SCREW,M12 x 20mm, Cl 12.9
SCREW - hex socket, 12 - 1.75 x 20 mm, class 12.9
1шт.
6a
161803A1
COVER
GUARD - vandal (folded and stored position), Includes: Ref. 7
1шт.
12
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 20 mm, class 10.9
2шт.
16
627-8020
BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd
- hex, full threads, 8 - 1.25 x 20 mm, class 10.9
8шт.
