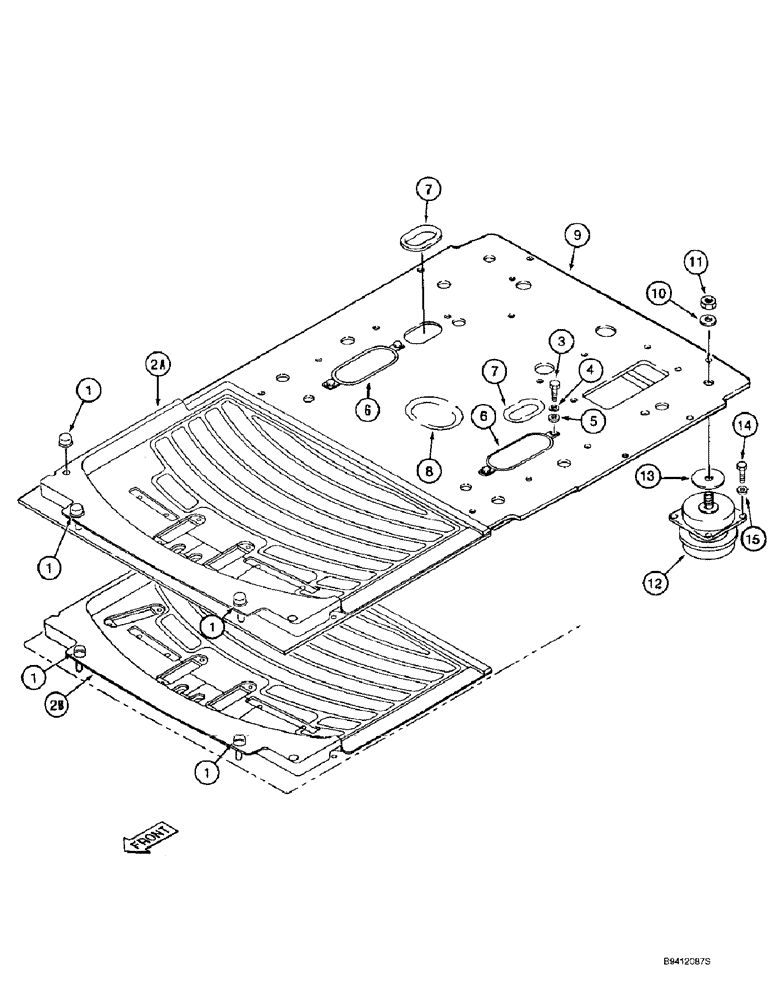

Запчасти Case 9010B (9-050) - CAB FLOOR AND MOUNTING, PRIOR TO P.I.N. DAC01#2001 (09) - CHASSIS

1

159489A1

CAP

- special

3шт.

2a

159495A1

FLOOR MAT

MAT - floor, machines without single pedal travel or auxiliary hydraulic equipment

1шт.

2b

162646A1

FLOOR MAT

MAT - floor, machines with auxiliary hydraulic equipment control pedal but no single pedal travel

1шт.

3

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.

6

159272A1

GUIDE

- cab floor

2шт.

7

152966A1

GROMMET

- rubber

2шт.

8

152644A1

GROMMET

- rubber

1шт.

9

161805A1

FLOOR

- cab

1шт.

10

150714A1

WASHER

- special

6шт.

11

150760A1

NUT

- hex

6шт.

12

165029A1

INSULATOR BLOCK

MOUNT - rubber, cab floor, replaces 162215A1, rubber mount

6шт.

13

151092A1

SPACER

- floor mount

6шт.

14

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

24шт.

15

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

24шт.
