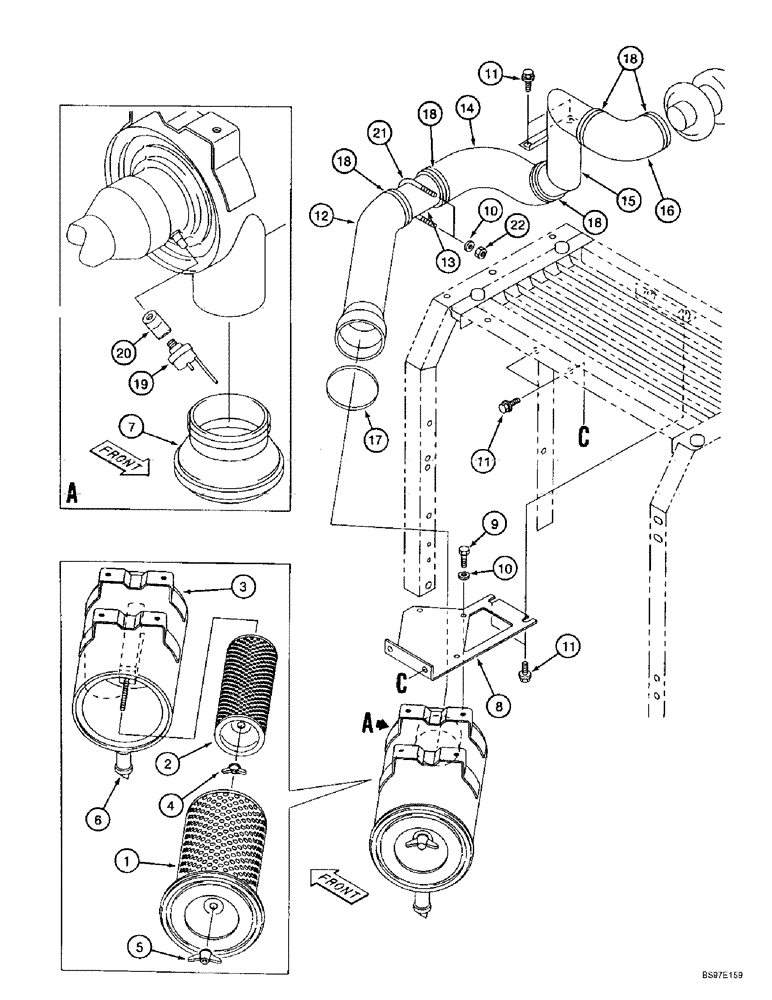

Запчасти Case 9010B (2-018) - AIR CLEANER SYSTEM, P.I.N. DAC01#2001 AND AFTER (02) - ENGINE

165419A1

AIR CLEANER

CLEANER ASSEMBLY - air, Includes: Ref. 1 - 7

1шт.

1

161863A1

AIR FILTER

ELEMENT - air cleaner, outer

1шт.

2

161862A1

AIR FILTER

ELEMENT - air cleaner, inner

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

4

156497A1

WING NUT

NUT - wing, includes gasket

1шт.

5

162870A1

NUT

NUT - wing

1шт.

6

156412A1

VALVE POPPET

CUP - dust

1шт.

7

165437A1

CAP

- screen, body assembly

1шт.

8

165566A1

BRACKET

- mounting

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

10

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

8шт.

11

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

6шт.

12

165564A1

INTAKE AIR HOSE

TUBE - vinyl, next to air cleaner body assembly

1шт.

13

161132A1

AIR INTAKE TUBE,76.3 mm OD, 165 mm Length

PIPE - air inlet

1шт.

14

161152A1

INTAKE AIR HOSE,76.20 mm ID x 231.00 mm

HOSE - air inlet, special

1шт.

15

165565A1

AIR INTAKE TUBE,70.7 mm ID, 76.3 mm OD

PIPE - air inlet, with mounting bracket

1шт.

16

164588A1

LARGE HOSE

HOSE - air inlet, special, at turbocharger

1шт.

17

150294A1

CLAMP,95mm - 115mm

CLAMP - adjustable

1шт.

18

150902A1

COLLAR

CLAMP - adjustable

5шт.

19

150042A1

SENSOR

SWITCH - air restriction indicator

1шт.

20

165818A1

ELBOW

- 45 degree, special

1шт.

21

161153A1

U-BOLT,M10 x 90mm W x 110mm L

- special

1шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

U-bolt M10, Cl 10

2шт.
