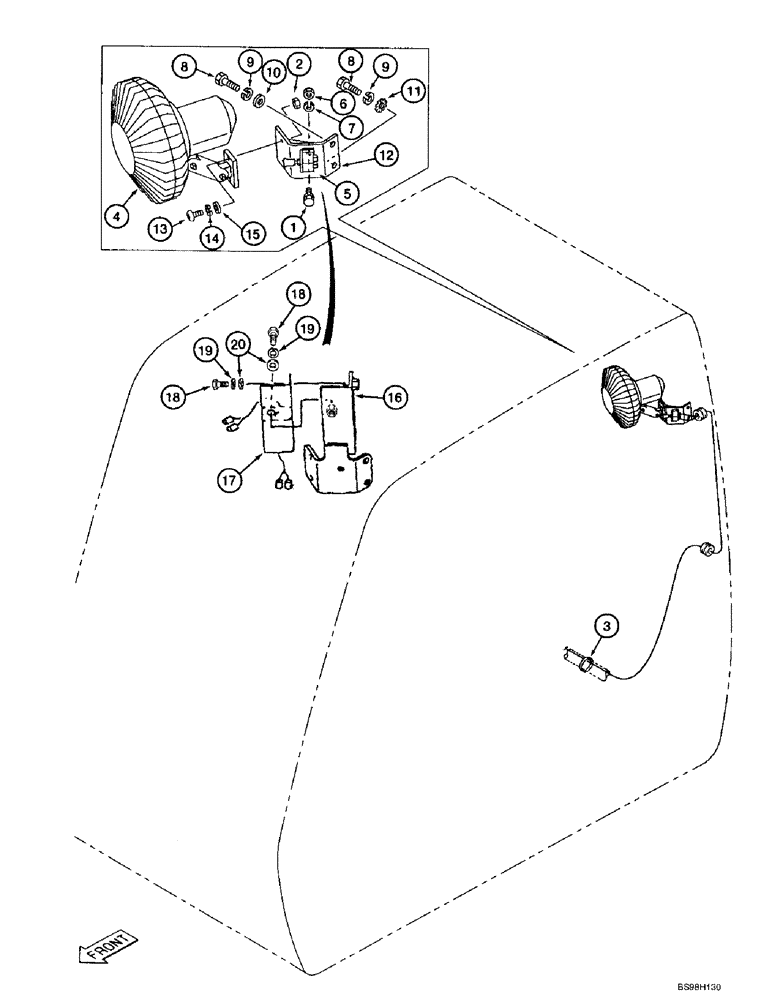

Запчасти Case 9010B (9-048) - CAB FAN AND MOUNTING (09) - CHASSIS

1

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

2

829-1405

NUT,M5, Cl 10

- hex, 5 mm - 0.8, class 10

2шт.

3

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

157689A1

FAN

ASSEMBLY - cab, Includes: Ref. 4 - 7

1шт.

4

157694A1

FAN

- cab

1шт.

5

152843A1

IGNITION SWITCH

SWITCH - cab fan

1шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

7

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Secial

1шт.

11

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

12

159209A1

BRACKET

- fan mount, models without noise filter

1шт.

13

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

- machine, pan Phillips, 5 - 0.8 x 16 mm

2шт.

14

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

16

165744A1

BRACKET

- fan mounting, models with noise filter

1шт.

17

159338A1

RESISTOR

FILTER - noise, if used

1шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.
