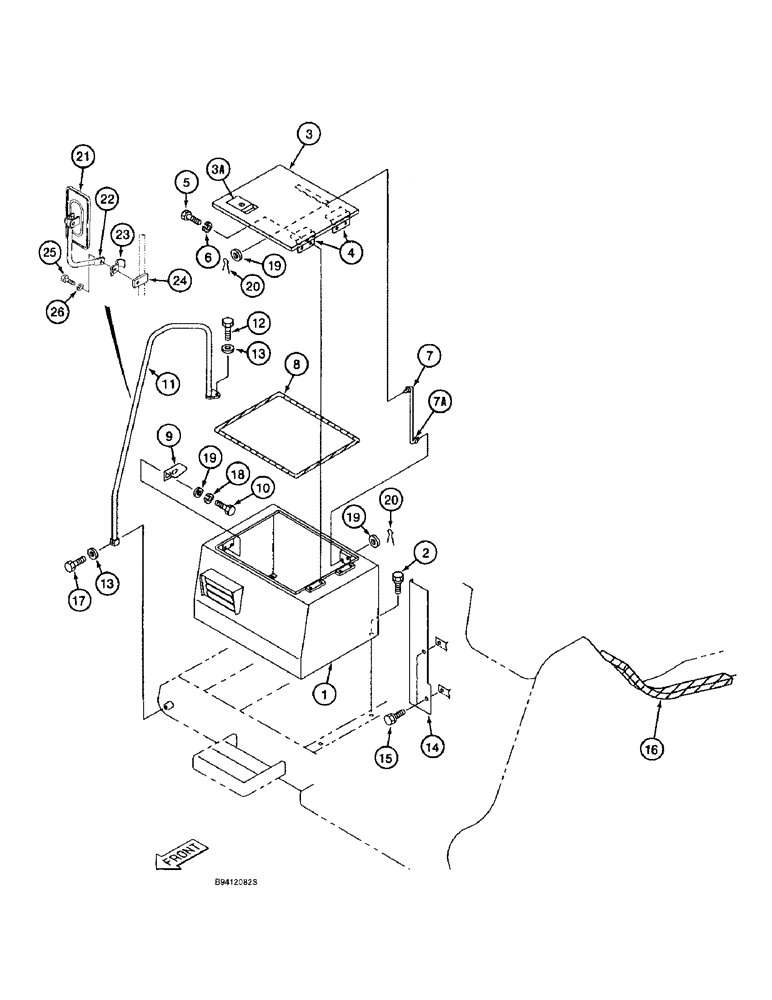

Запчасти Case 9010B (9-026) - UPPER STRUCTURE, STORAGE BOX AND REAR VIEW MIRROR (09) - CHASSIS

1

159113A1

COVER

BOX - storage

1шт.

2

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

3

159117A1

COVER

- storage box, Includes: Ref. 3A and 4

1шт.

3a

150938A1

LOCK

LATCH - recessed

1шт.

4

159118A1

HINGE

- storage box

2шт.

5

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

4шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

7

159119A1

STAY

SUPPORT - cover, storage box, Includes: Ref. 7A

1шт.

8

159116A1

GROMMET

SEAL - rubber, box cover

1шт.

9

159114A1

BRACKET

- lock

1шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

11

162053A1

STAY

RAIL - hand

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9, Hand rail

1шт.

13

150811A1

WASHER

- flat, special, 12 mm

2шт.

14

161230A1

COVER

- front

1шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

16

161226A1

SEAL

- cushion

1шт.

17

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

- hex, 12 - 1.75 x 55 mm, class 10.9, Hand rail

1шт.

18

892-11010

LOCK WASHER,M10

2шт.

20

153181A1

COTTER PIN

CLIP - hair pin

2шт.

21

151025A1

MIRROR

- rear view

1шт.

22

156562A1

SUPPORT

ARM - rear view mirror

1шт.

23

150151A1

CLAMP

- special, mirror arm

1шт.

24

150694A1

PLATE

- mirror mounting

1шт.

25

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

26

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

7a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.
