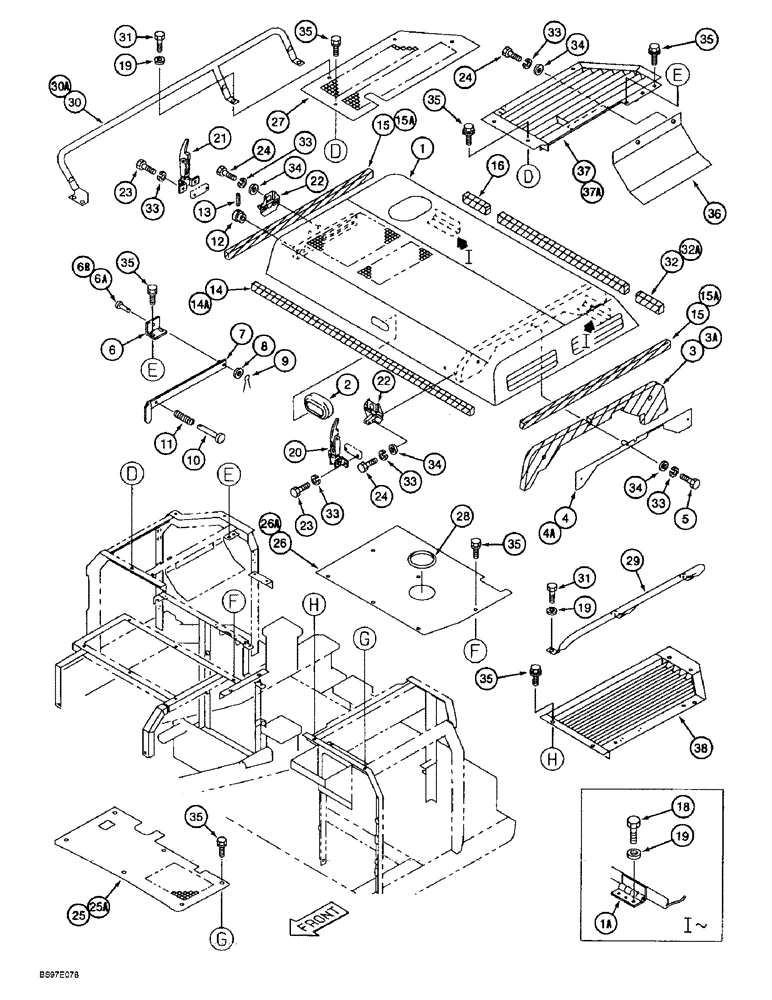

Запчасти Case 9010B (9-020) - UPPER STRUCTURE, HOOD, COVERS AND INSULATION (09) - CHASSIS

1

161248A1

HOOD ASSY.

HOOD ASSEMBLY - engine, Includes: Ref. 1A, Serial Range: -DAC01#2001

1шт.

1

165584A1

HOOD

ASSEMBLY - engine, Includes: Ref. 1A, Start Serial: DAC01#2001

1шт.

1a

152819A1

HINGE

- hood

2шт.

2

150484A1

HANDLE

- recessed

1шт.

3

161263A1

SEAL

- cushion, left-hand, Serial Range: -DAC01#2001

1шт.

3a

165592A1

CUSHION

SEAL - cushion, left-hand, Start Serial: DAC01#2001

1шт.

4

161264A1

RING

RETAINER - seal, Serial Range: -DAC01#2001

1шт.

4a

165550A1

RETAINER

- seal, Start Serial: DAC01#2001

1шт.

5

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

- hex, 8 - 1.25 x 45 mm, class 10.9

3шт.

6

161234A1

BRACKET

ASSEMBLY - hood, incudes clevis pin, Includes: Ref. 6A and 6B

1шт.

6a

159127A1

HEADED PIN

PIN - clevis, standard models, Serial Range: -DAC0101124

1шт.

6b

163859A1

HEADED PIN

PIN - clevis, standard models and all special application models, Start Serial: DAC0101124

1шт.

7

161223A1

STAY

- hood support

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

13шт.

9

160762A1

COTTER PIN

CLIP - hair pin

1шт.

10

159127A1

HEADED PIN

PIN - clevis

1шт.

11

159877A1

SPRING

- compression

1шт.

12

159129A1

SPACER

COLLAR - special (spacer)

1шт.

13

738-5332

PIN, ROLL

PIN - roll, 3 x 32 mm

1шт.

14

161245A1

CUSHION ASSY.

CUSHION - sponge rubber, front, Serial Range: -DAC01#2001

1шт.

14a

165586A1

CUSHION

- sponge rubber, front, Start Serial: DAC01#2001

1шт.

15

161231A1

RUBBER BLOCK

CUSHION - sponge rubber, right-hand and left-hand side, Serial Range: -DAC01#2001

2шт.

15a

165585A1

CUSHION

- sponge rubber, right-hand and left-hand side, Start Serial: DAC01#2001

2шт.

16

159880A1

ADHESIVE STRIP

CUSHION - sponge rubber, right-hand, rear

1шт.

17

161232A1

GROMMET

CUSHION - sponge rubber, rear

1шт.

18

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

6шт.

19

150811A1

WASHER

- flat, special, 12 mm

14шт.

20

150790A1

LATCH

CATCH - hood

1шт.

21

152423A1

LATCH

CATCH - hood

1шт.

22

150785A1

STOP LOCK

LATCH - door assembly

2шт.

23

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

4шт.

24

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

8шт.

25

161247A1

COVER

- top, left-hand, Serial Range: -DAC01#2001

1шт.

25a

165580A1

COVER

- top, left-hand, Start Serial: DAC01#2001

1шт.

26

161246A1

COVER

- top, center, standard models, Start Serial: DAC01#2001

1шт.

26a

163251A1

COVER

- top, center, standard models and all special application models, Serial Range: -DAC0101124

1шт.

27

161229A1

COVER

- top, right-hand, standard models, Serial Range: -DAC0101205

1шт.

28

152804A1

GROMMET

- rubber

1шт.

29

161237A1

GRAB RAIL

HANDRAIL - left-hand

1шт.

30

161236A1

GRAB RAIL

HANDRAIL - right-hand, standard models, Serial Range: -DAC0101205

1шт.

30a

163772A1

GRAB RAIL

HANDRAIL - right-hand, standard models and all special application models, Start Serial: DAC0101205

1шт.

31

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

5шт.

32

161249A1

CUSHION ASSY.

CUSHION - sponge rubber, left-hand, rear, Serial Range: -DAC01#2001

1шт.

32a

165587A1

CUSHION

- sponge rubber, left-hand, rear, Start Serial: DAC01#2001

1шт.

33

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

21шт.

35

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

17шт.

36

163770A1

COVER

upper structure, standard modelsand all special application models, Serial Range: -DAC0101205

1шт.

See Figure 9-014 for upper structure cover for standard models prior to P.I.N. DAC0101205 only.

1шт.

37

163769A1

FRAME

- upper structure, right-hand, standard models and all special application models, Serial Range: DAC0101205-DAC0102000

1шт.

37

163769A1

FRAME

- upper structure, right-hand, standard models and all special application models, Serial Range: -DAC0112001

1шт.

37a

165639A1

FRAME

- upper structure, right-hand, Start Serial: DAC01#2001

1шт.

38

165579A1

SIEVE

FRAME - upper structure, left-hand, Start Serial: DAC01#2001

1шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

17шт.
