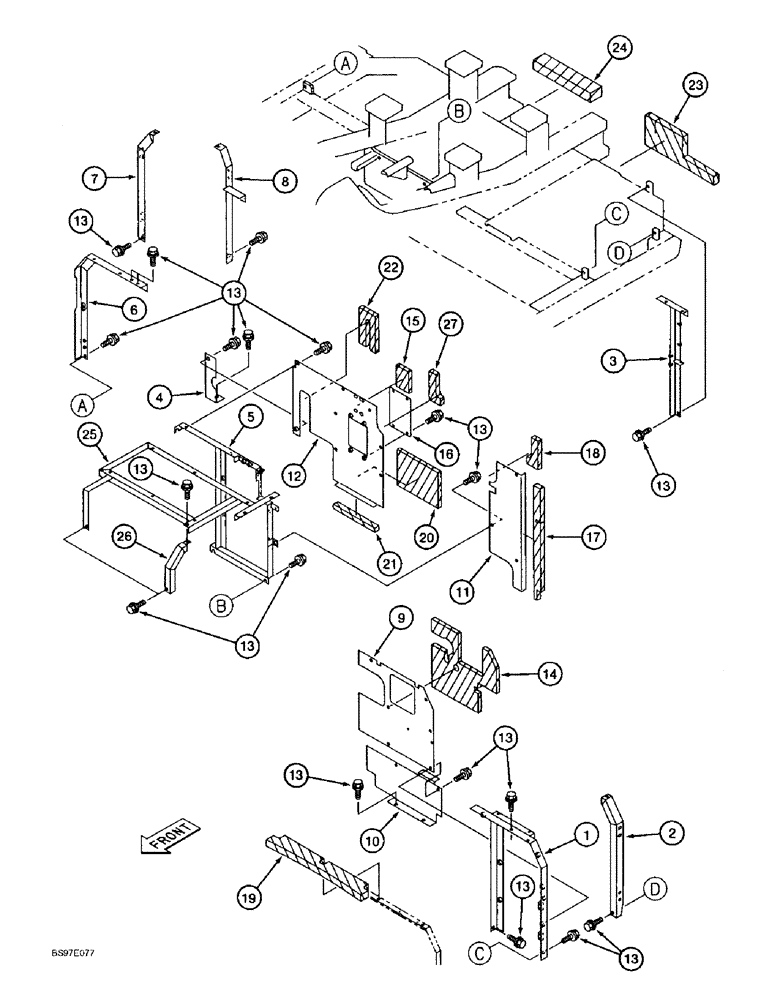

Запчасти Case 9010B (9-018) - UPPER STRUCTURE, FRAMES, COVERS AND INSULATION, P.I.N. DAC01#2001 AND AFTER (09) - CHASSIS

1

165578A1

FRAME

- upper structure, left-hand

1шт.

2

165423A1

FRAME

- upper structure, left-hand

1шт.

3

165577A1

FRAME

- upper structure, left-hand

1шт.

4

165431A1

COVER

- center

1шт.

5

165575A1

FRAME

- upper structure, center

1шт.

6

165638A1

FRAME

- upper structure, right-hand

1шт.

7

163768A1

FRAME

- upper structure, right-hand

1шт.

8

165319A1

FRAME

- upper structure, right-hand

1шт.

9

165582A1

COVER

- center, left-hand

1шт.

10

165583A1

COVER

- center, left-hand

1шт.

11

165581A1

COVER

- center, left-hand

1шт.

12

165433A1

COVER

- center

1шт.

13

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

68шт.

14

165589A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

15

161665A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

16

163516A1

COVER

- center

1шт.

17

165588A1

CUSHION

SEAL - cushion

1шт.

18

162769A1

INSULATOR

INSULATION - acoustic

1шт.

19

161124A1

SEAL

- cushion

1шт.

20

163518A1

NOISE PROTECTION

INSULATION - acoustic

1шт.

21

161254A1

SEAL

- cushion

1шт.

22

165432A1

SEAL

- cushion

1шт.

23

161250A1

SEAL

- cushion

1шт.

24

161233A1

SEAL

- cushion

1шт.

25

165576A1

FRAME

- upper structure, center

1шт.

26

162490A1

FRAME

- upper structure, center

1шт.

27

162770A1

INSULATOR

INSULATION - acoustic

1шт.
