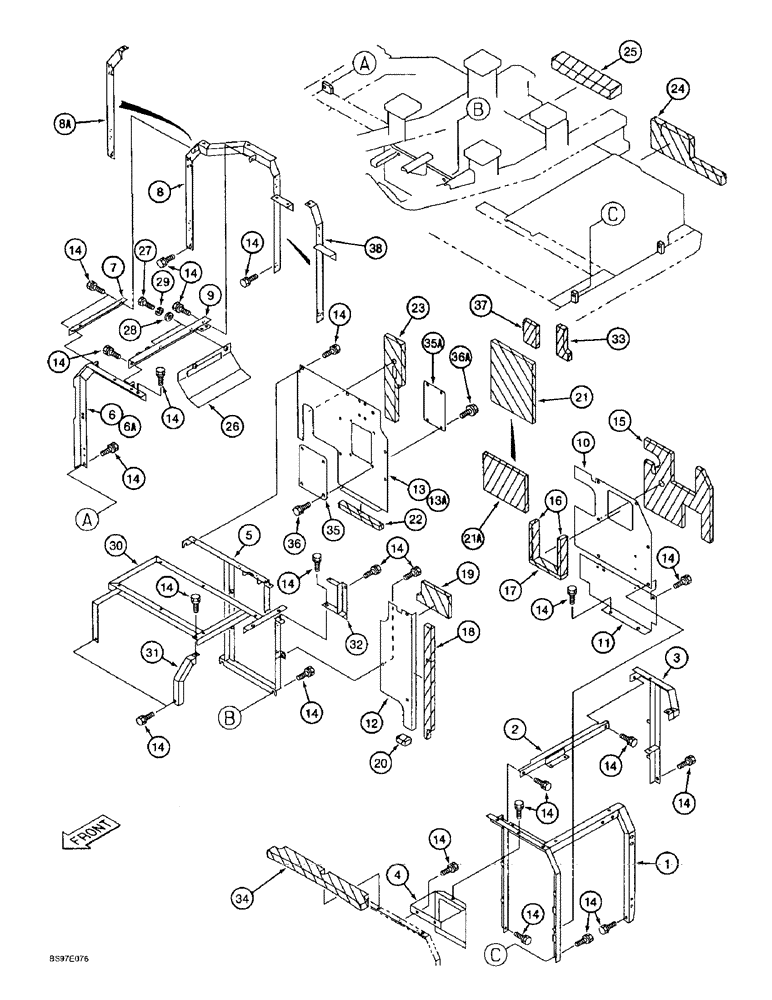

Запчасти Case 9010B (9-014) - UPPER STRUCTURE, FRAMES, COVERS AND INSULATION, PRIOR TO P.I.N. DAC01#2001 (09) - CHASSIS

1

162763A1

FRAME

- upper structure, left-hand

1шт.

2

162764A1

FRAME

- upper structure, left-hand

1шт.

3

161241A1

FRAME

- upper structure, left-hand

1шт.

4

161239A1

DUCT

BRACKET - upper structure

1шт.

5

162765A1

FRAME

- upper structure, center

1шт.

6

161228A1

FRAME

- upper structure, right-hand, standard models only, Serial Range: -DAC01#1205

1шт.

6a

163767A1

FRAME

- upper structure, right-hand, models, Serial Range: DAC01#1124-DAC01#2000

1шт.

7

161222A1

FRAME

- upper structure, right-hand, standard models only, Serial Range: -DAC01#1205

1шт.

8

161244A1

FRAME

- upper structure, right-hand

1шт.

8a

163768A1

FRAME

- upper structure, right-hand, models, Serial Range: DAC01#1124-DAC01#2000

1шт.

9

161235A1

FRAME

- upper structure, right-hand

1шт.

10

161262A1

COVER

- center, left-hand

1шт.

11

161258A1

COVER

- center, left-hand

1шт.

12

162767A1

COVER

- center, left-hand

1шт.

13

162766A1

FRAME

COVER - center, standard models only, Serial Range: -DAC01011124

1шт.

13a

163517A1

COVER

- center, models, Serial Range: DAC01#1124-DAC01#2000

1шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

68шт.

15

161259A1

INSULATOR

INSULATION - acoustic

1шт.

16

161261A1

SEAL

- cushion

2шт.

17

161260A1

SEAL

- cushion

1шт.

18

161257A1

SEAL

- cushion

1шт.

19

162769A1

INSULATOR

INSULATION - acoustic

1шт.

20

161218A1

SEAL

- cushion

1шт.

21

162768A1

INSULATOR

INSULATION - acoustic, standard models only, Serial Range: -DAC0101124

1шт.

21a

163518A1

NOISE PROTECTION

INSULATION - acoustic, models, Serial Range: DAC01#1124-DAC01#2000

1шт.

22

161254A1

SEAL

- cushion

1шт.

23

163355A1

SEAL

- cushion

1шт.

24

161250A1

SEAL

- cushion

1шт.

25

161233A1

SEAL

- cushion

1шт.

26

163493A1

COVER

- upper structure, standard models only, Serial Range: -DAC0101205

1шт.

See Figure 9-020 for upper structure cover for standard models P.I.N. DAC0101205 and after and all special application models.

1шт.

27

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9, Serial Range: -DAC0101205

2шт.

29

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Standard models only M8, Serial Range: -DAC0101205

17шт.

30

163255A1

FRAME

- upper structure, center

1шт.

31

162490A1

FRAME

- upper structure, center

1шт.

32

161265A1

FRAME

- upper structure, center, standard models only, Serial Range: -DAC0101124

1шт.

33

162770A1

INSULATOR

INSULATION - acoustic

1шт.

34

161124A1

SEAL

- cushion

1шт.

The phantom part that Ref. 34 fits on is Ref. 1 on Figure 8-024, 164749A1 of 165732A1, depending on the serial number.

1шт.

35

163516A1

COVER

- center, positioned on front side of Ref.13 for standard models, Serial Range: -DAC0101124

1шт.

35a

163516A1

COVER

- center, positioned on rear side of Ref.13A for standard models and all special application models, Serial Range: DAC0101124-DAC0102000

1шт.

35a

163516A1

COVER

- center, positioned on rear side of Ref.13A for standard models and all special application models to DAC011200

1шт.

36

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, positioned on front side of Ref.13 for standard models, Serial Range: -DAC0101124

4шт.

36a

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, positioned on rear side of Ref.13A for standard models and all special application models, Serial Range: DAC0101124-DAC0102000

4шт.

36a

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, positioned on rear side of Ref.13A for standard models and all special application models, Serial Range: -DAC0112001

4шт.

37

161665A1

NOISE PROTECTION

INSULATION - acoustic, all models except standard models, Serial Range: -DAC0101124

1шт.

37

161665A1

NOISE PROTECTION

INSULATION - acoustic, all models except standard models, Serial Range: -DAC01#2001

1шт.

38

163771A1

FRAME

- upper structure, right-hand, models, Serial Range: DAC01#1124-DAC01#2000

1шт.

28

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Standard models only, Serial Range: -DAC0101205

13шт.
