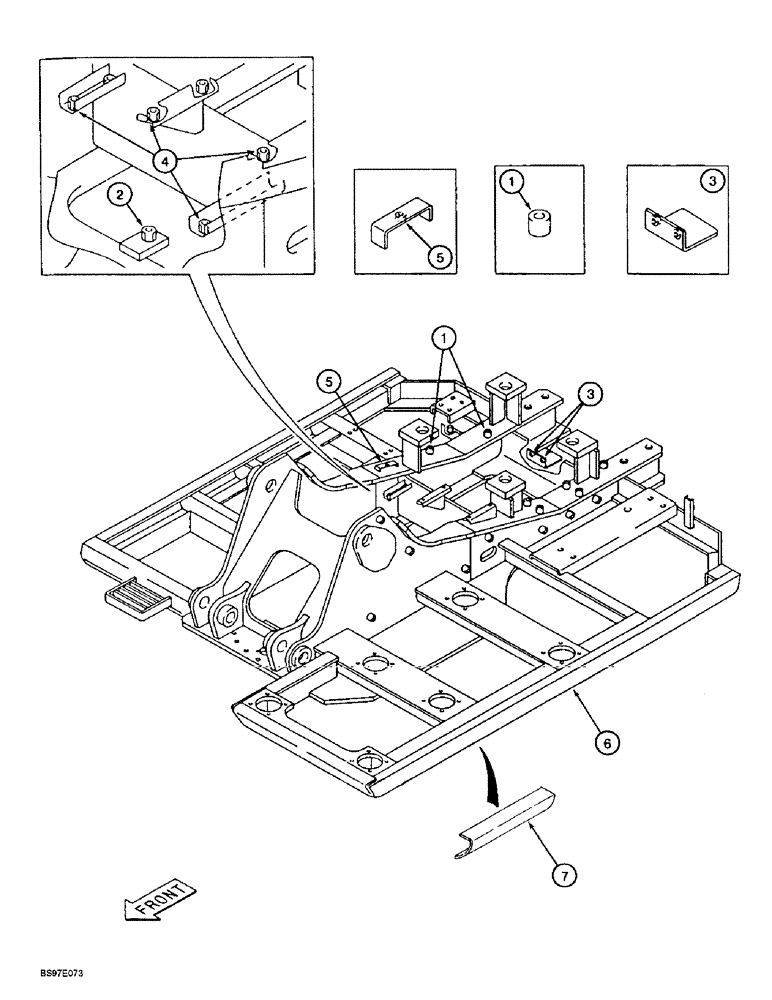

Запчасти Case 9010B (9-006) - TURNTABLE, P.I.N. DAC01#2001 AND AFTER (09) - CHASSIS

1

158811A1

BOSS

- special

41шт.

2

158918A1

SPECIAL NUT

- special

1шт.

3

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

2шт.

4

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

14шт.

5

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

6

164745A1

FRAME ASSY

FRAME - revolving, complete

1шт.

7

159752A1

ANGLE BAR

GUARD - formed angle iron, 2546 mm (100 inch) long, frame repair

1шт.

Use repair guard on turntable sides. Guard is long enough to repair any side of the turntable, cut and use the required length for the damaged side.

1шт.
