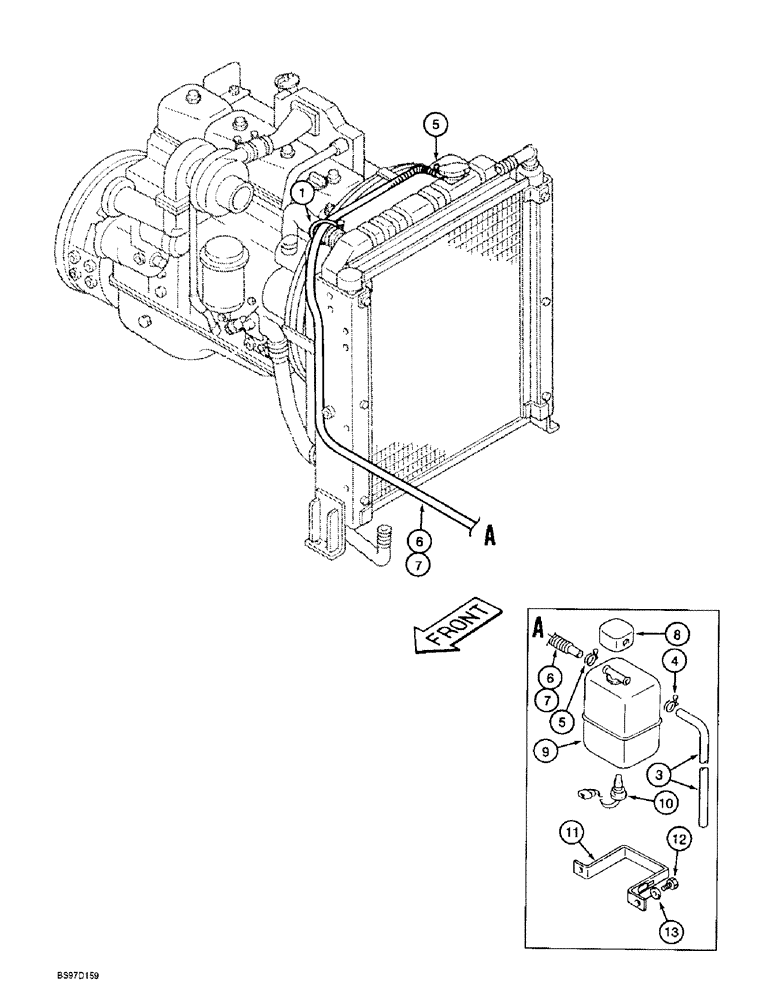

Запчасти Case 9010B (2-014) - RADIATOR OVERFLOW RESERVOIR AND HOSES, P.I.N. DAC01#2001 AND AFTER (02) - ENGINE

1

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

2шт.

3

150066A1

HOSE,7.00 mm ID x 800.00 mm

1шт.

4

153040A1

COLLAR

CLAMP - wire-type

1шт.

5

153042A1

CLAMP

- adjustable

2шт.

6

163357A1

HOSE

- 1600 mm

1шт.

7

150406A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 1500 mm Length

SLEEVE - corrugated, plastic, special, 1500 mm (59 inch) long

1шт.

8

157140A1

COVER

- coolant recovery reservoir

1шт.

9

160626A1

RESERVOIR, COOLANT E

RESERVOIR ASSEMBLY - radiator overflow, Includes: Ref. 10

1шт.

10

161740A1

SWITCH

- sender, coolant level

1шт.

11

164783A1

BRACKET

HOLDER - mounting, reservoir

1шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

13

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.
