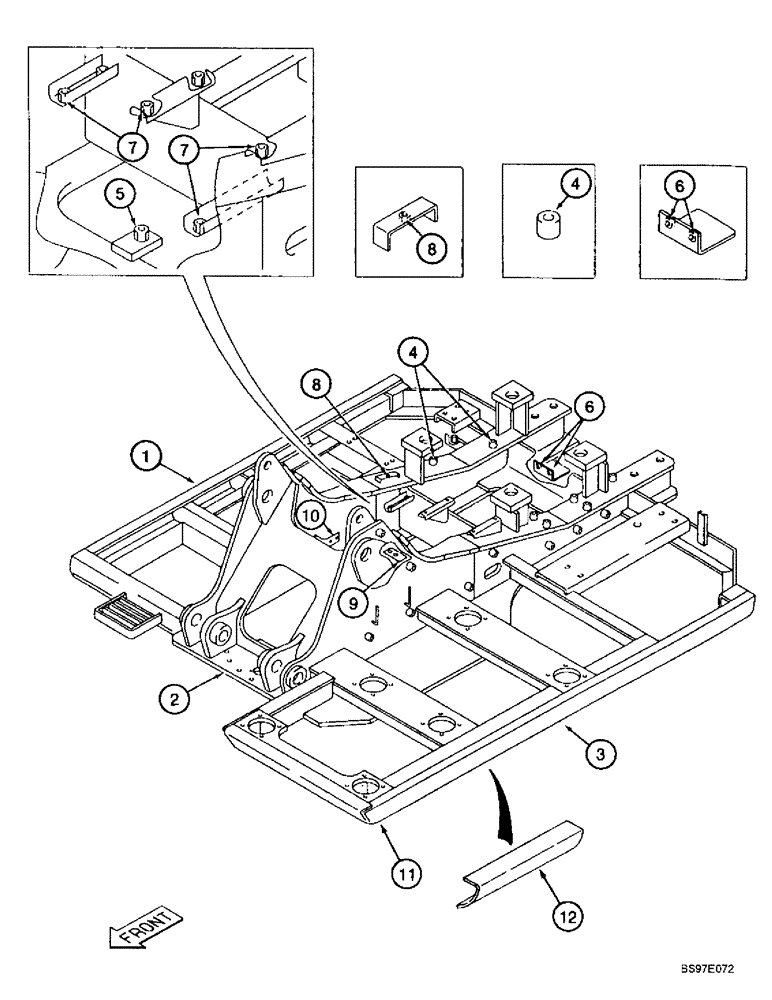

Запчасти Case 9010B (9-004) - TURNTABLE, PRIOR TO P.I.N. DAC01#2001 (09) - CHASSIS

1

161103A1

PLATFORM

- turntable, right-hand, no longer used, order Ref. 11, 163247A1 frame

1шт.

2

161119A1

FRAME

PLATFORM - boom mounting, no longer used, order Ref. 11, 163247A1 frame

1шт.

3

161115A1

PLATFORM

- turntable, left-hand, no longer used, order Ref. 11, 163247A1 frame

1шт.

4

158811A1

BOSS

- special

38шт.

5

158918A1

SPECIAL NUT

- special

1шт.

6

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

2шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

14шт.

8

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

9

162866A1

BAR

- base, machines with load holding control device

1шт.

10

163263A1

BAR

- base, machines with load holding control device

1шт.

11

163247A1

CHASSIS

FRAME - revolving, complete

1шт.

12

159752A1

ANGLE BAR

GUARD - formed angle iron, 2546 mm (100 inch) long, frame repair

1шт.

Use repair guard on turntable sides. Guard is long enough to repair any side of the turntable, cut and use the required length for the damaged side.

1шт.
