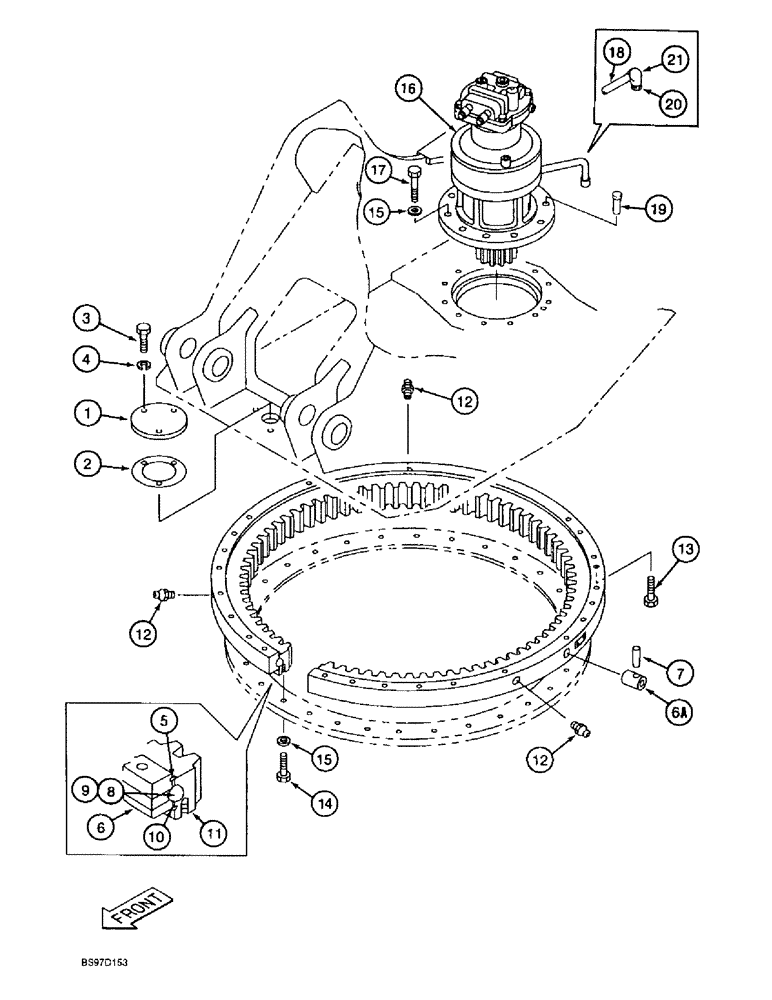

Запчасти Case 9010B (9-002) - TURNTABLE BEARING (09) - CHASSIS

1

158929A1

LID

COVER - access, grease fill, turntable gear

1шт.

2

158930A1

CORK SEAL

GASKET - access cover

1шт.

3

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

3шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

165107A1

GEAR, RING

BEARING ASSEMBLY - turntable, replaces 160709A1 bearing assembly, Includes: Ref. 5 - 12

1шт.

5

160707A1

SEALING RING

RING - seal, upper

1шт.

NSS

NOT SOLD SEPARAT

RACE ASSEMBLY - bearing, outer, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

STOPPER - ball bearing

5шт.

7

150733A1

COTTER PIN

PIN - stopper

5шт.

8

150734A1

BALL

- bearing, turntable

137шт.

9

160706A1

SPACER

- bearing ball

137шт.

10

160708A1

SEALING RING

RING - seal, lower

1шт.

11

NSS

NOT SOLD SEPARAT

RACE - bearing, inner

1шт.

12

153630A1

LUBE NIPPLE

FITTING - grease, straight

3шт.

13

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

28шт.

14

627-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9, Full Thd

Hex, M16 x 55, 10.9, Full Thd

36шт.

15

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

45шт.

16

160710A1

MOTO-REDUCTION GEAR

DRIVE ASSEMBLY - swing, see parts list Figure 8-122

1шт.

17

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

swing drive attaching Hex, M16 x 60, 10.9

9шт.
