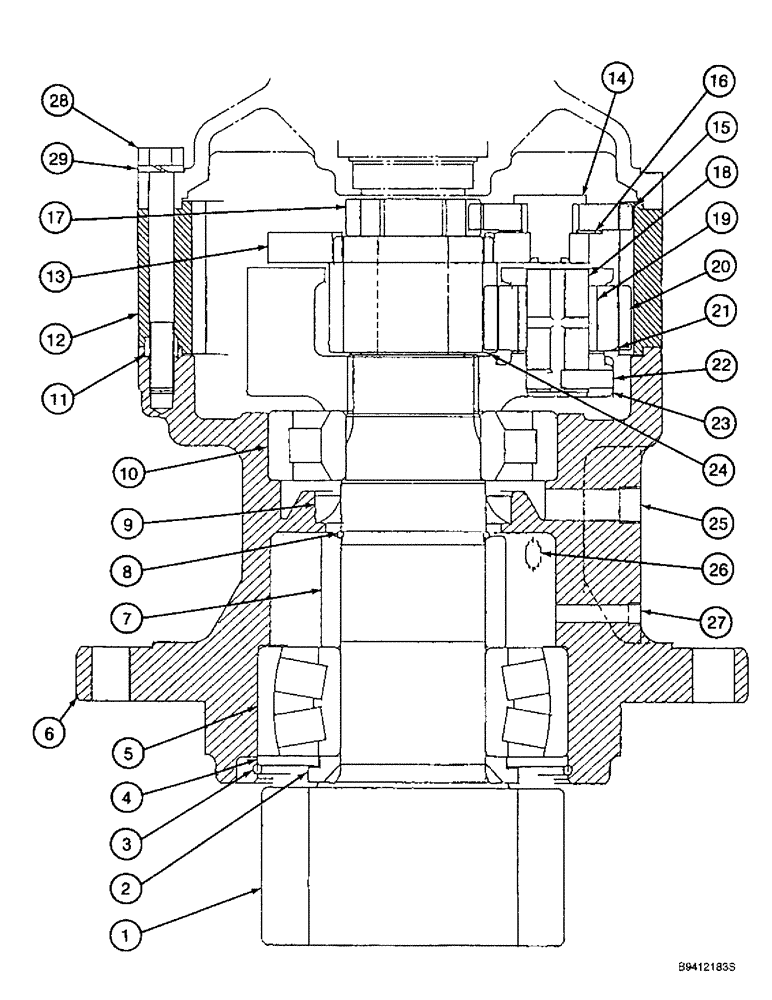

Запчасти Case 9010B (8-152) - SWING REDUCTION GEAR ASSEMBLY 160897A1 (HOUSING STAMPED RG04S-170-102) (08) - HYDRAULICS

160897A1

REDUCER

GEAR ASSEMBLY - reduction, (Housing stamped RG04S-170-102) Includes: Ref. 1 - 29

1шт.

LN002340R

REMAN-REDUCTION UNIT

9010B (1/95-), Reman for New P/N 160897A1

1шт.

LN002340C

CORE-REDUCTION UNIT

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - drive

1шт.

2

160868A1

COLLAR

SEAL - lip, Serial Range: cover-collar

1шт.

3

155603A1

RING, SNAP

RING - retaining

1шт.

4

155606A1

PLATE

- shaft end

1шт.

5

160965A1

ROLLER BEARING,70mm ID x 150mm OD x 51mm W

- roller

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - gear assembly

1шт.

7

155600A1

BUSHING

SPACER - bearing

1шт.

8

155604A1

RING, SNAP

RING - retaining

1шт.

9

153924A1

OIL SEAL

- oil

1шт.

10

156129A1

BEARING, ROLLER, CYL,65mm ID x 140mm OD x 33mm W

- roller, inner

1шт.

11

155601A1

COLLAR

SLEEVE - bolt

4шт.

12

155262A1

RING

GEAR - ring

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - planetary

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - gear

3шт.

15

NSS

NOT SOLD SEPARAT

GEAR - planetary carrier

3шт.

16

NSS

NOT SOLD SEPARAT

PLATE - thrust

3шт.

17

160821A1

SUN GEAR

GEAR - sun

1шт.

17

LNM0602

GEAR SET

GEAR - sun

1шт.

18

155357A1

SHAFT

- planetary gear, secondary

3шт.

19

155377A1

BUSHING

- Shaft

3шт.

20

160822A1

GEAR

- planetary carrier

3шт.

21

155376A1

PLATE, THRUST

PLATE - thrust

3шт.

22

160869A1

COTTER PIN

PIN - roll

3шт.

23

NSS

NOT SOLD SEPARAT

CARRIER - planetary, secondary

1шт.

24

155264A1

PINION

GEAR - sun

1шт.

25

151030A1

PLUG

- port

1шт.

26

151026A1

PLUG

- port

1шт.

27

151022A1

PLUG

- hex socket, special

1шт.

28

156192A1

BOLT

BOLT - hex, special

8шт.

29

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

8шт.
