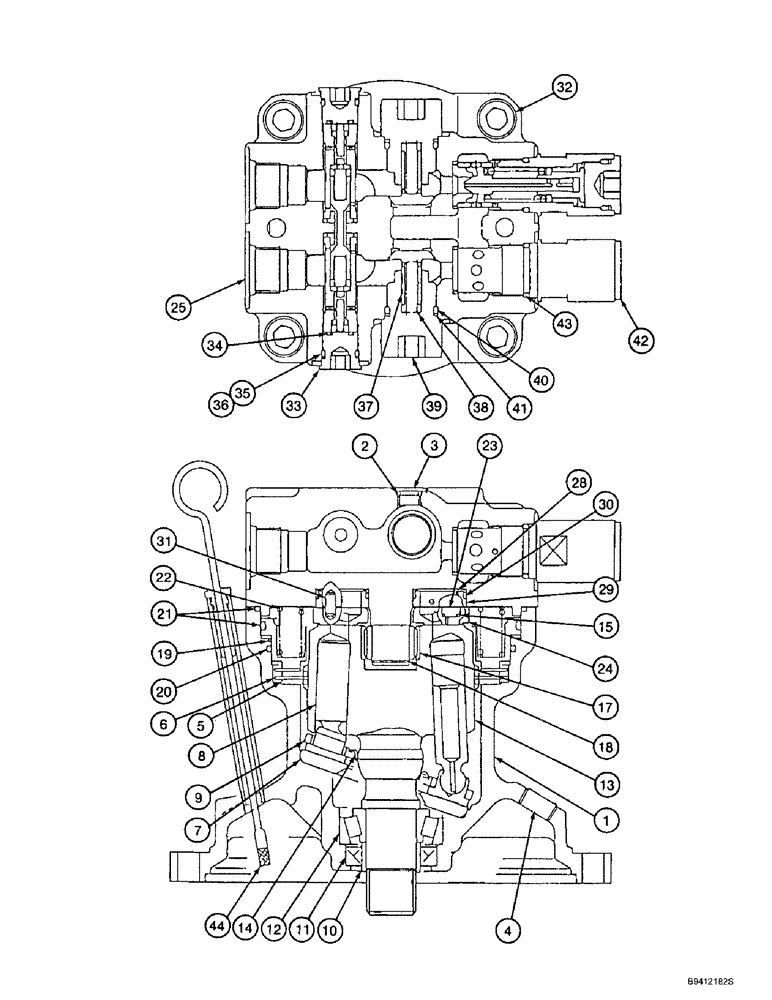

Запчасти Case 9010B (8-150) - SWING MOTOR ASSEMBLY (08) - HYDRAULICS

161040A1

MOTOR, HYDRAULIC

DRIVE ASSEMBLY - swing, without reduction gear, Includes: Ref. 1 - 43

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

3шт.

3

160306A1

CAP

PLUG - port

3шт.

4

151033A1

PLUG

- hex socket, special

1шт.

5

160996A1

BRAKE DISC

PLATE - friction

2шт.

6

160995A1

DISC

PLATE - brake

2шт.

7

160940A1

LARGE PLATE

PLATE - cam

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - motor

9шт.

9

160994A1

TRAY

PLATE - return

1шт.

10

160941A1

SEALING RING

RING - wear

1шт.

11

160780A1

OIL SEAL

- oil

1шт.

12

160966A1

TAPERED BEARING,30mm ID x 62mm OD x 21.25mm W

- tapered roller

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK ASSEMBLY - cylinder and shaft, component parts not serviced separately

1шт.

14

160993A1

BACK-UP RING

SEAT - spring

1шт.

15

160937A1

RING

- Teflon

2шт.

17

160967A1

BEARING, NEEDLE,22 mm ID x 35 mm OD x 20 mm

BEARING - needle

1шт.

18

160867A1

RING, SNAP

RING - retaining

1шт.

19

160938A1

PISTON

- brake mechanism

1шт.

20

161060A1

O-RING

- small, Serial Range: piston-housing

1шт.

21

161061A1

O-RING

- large, Serial Range: piston-housing

2шт.

22

156077A1

SPRING

- compression, brake

14шт.

23

160939A1

PISTON

- valve

2шт.

24

160992A1

LARGE PLATE

PLATE - port

1шт.

25

NSS

NOT SOLD SEPARAT

COVER - swing motor housing

1шт.

28

160959A1

SPRING

- cylinder

4шт.

29

160842A1

BUSHING

- plate

4шт.

30

160936A1

RING

- Teflon

4шт.

31

160859A1

DOWEL

PIN - dowel

2шт.

32

160968A1

BOLT,Hex Skt Hd

BOLT - hex socket, special

4шт.

33

160149A1

BY-PASS VALVE

VALVE - bypass

2шт.

34

154471A1

O-RING

- valve end seal

2шт.

35

154487A1

O-RING

- plug

2шт.

36

153970A1

BACK-UP RING

RING - backup

2шт.

37

155944A1

PLUNGER

- check valve

2шт.

38

156079A1

SPRING

- compression, check valve

2шт.

39

156305A1

CAP

PLUG - port, check valve

2шт.

40

154515A1

O-RING

- plug

2шт.

41

153991A1

BACK-UP RING

RING - backup

2шт.

42

160150A1

VALVE

- relief

2шт.

43

154515A1

O-RING

- valve

2шт.

44

158883A1

GAUGE

DIPSTICK - lube, swing drive assembly, not included in 161040A1 assembly

1шт.

155990A1

SHIM KIT

KIT - shim, for relief valve, Ref. 42, replaces 160632A1 shim kit

1шт.
