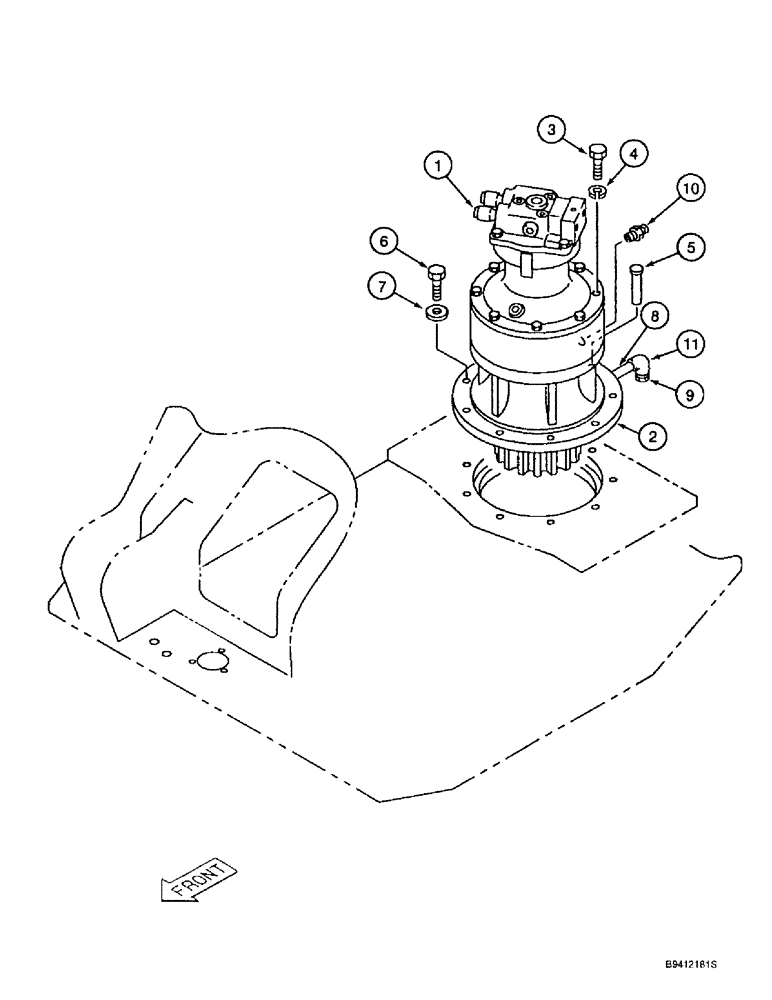

Запчасти Case 9010B (8-148) - SWING DRIVE ASSEMBLY MOUNTING (08) - HYDRAULICS

160710A1

MOTO-REDUCTION GEAR

DRIVE ASSEMBLY - swing, with reduction gear, Includes: Ref. 1 - 4

1шт.

1

161040A1

MOTOR, HYDRAULIC

DRIVE ASSEMBLY - swing, without reduction gear, parts list on Figure 8-150

1шт.

2

160897A1

REDUCER

GEAR ASSEMBLY - reduction, swing drive, (Housing stamped RG04S-170-102) parts list on Figure 8-152

1шт.

LN002340R

REMAN-REDUCTION UNIT

9010B (1/95-), Reman For New P/N 160897A1

1шт.

LN002340C

CORE-REDUCTION UNIT

Return Number

1шт.

3

156192A1

BOLT

BOLT - hex, special

8шт.

4

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

8шт.

5

150036A1

HEADED PIN,20mm OD x 60mm L

PIN - alignment, locator

1шт.

6

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

9шт.

7

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

9шт.

8

160711A1

PIPE,17.3 mm OD, 125 mm Length

TUBE - drain

1шт.

9

150995A1

PLUG

- hex, pipe

1шт.

10

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

11

153563A1

ELBOW

- 90 degree, swing motor drain line, replaces 158860A1 elbow

1шт.
