Артикул
Название
Примечание
Количество
160752A1
CYLINDER ASSY.

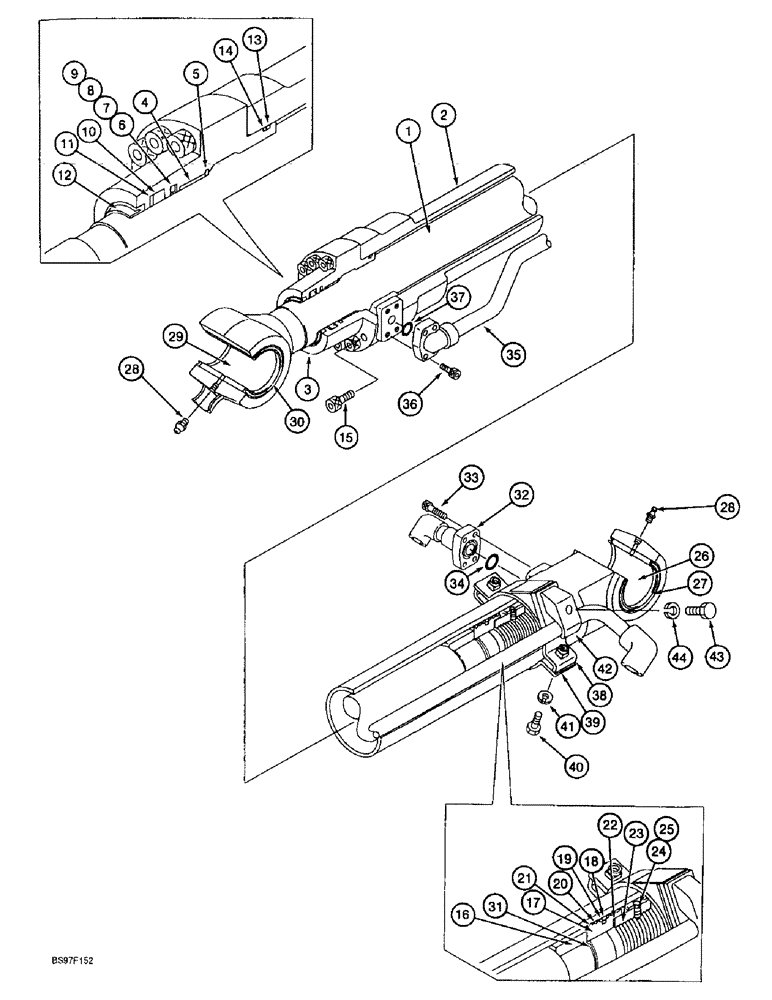

CYLINDER ASSEMBLY - 95 (3-3/4) ID x 924 mm (36-3/8 inch) stroke, bucket, Includes: Ref. 1 - 44
1шт.
1
NSS
NOT SOLD SEPARAT
ROD - cylinder
1шт.
2
NSS
NOT SOLD SEPARAT
TUBE - cylinder
1шт.
162977A1
SET OF PARTS
GLAND ASSEMBLY - cylinder, replaces 161054A1 gland assembly, Includes: Ref. 3 - 5
1шт.
3
160899A1
HEAD
GLAND - cylinder
1шт.
4
155433A1
BUSHING
- gland
1шт.
5
155699A1
RING, SNAP
RING - snap
1шт.
6
160788A1
SEALING RING
RING ASSEMBLY - buffer, Includes: Ref. 7 - 9
1шт.
Part of seal kit. P/N 162976A1
1шт.
7
NSS
NOT SOLD SEPARAT
RING - slide
1шт.
8
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
9
NSS
NOT SOLD SEPARAT
RING - square
1шт.
10
155130A1
RING
SEAL - U-cup
1шт.
Part of seal kit. P/N 162976A1
1шт.
11
155231A1
BACK-UP RING
RING - backup
1шт.
Part of seal kit. P/N 162976A1
1шт.
12
160784A1
WIPER SEAL
WIPER - piston rod
1шт.
Part of seal kit. P/N 162976A1
1шт.
13
154705A1
O-RING
- seal
1шт.
Part of seal kit. P/N 162976A1
1шт.
14
160810A1
BACK-UP RING
RING - backup
1шт.
Part of seal kit. P/N 162976A1
1шт.
15
161058A1
BOLT,Hex Skt Hd
BOLT - hex socket, special
12шт.
16
161042A1
RING
- cushion
1шт.
17
160944A1
PISTON
- cylinder
1шт.
Part of seal kit. P/N 162976A1
1шт.
Part of seal kit. P/N 162976A1
1шт.
20
160828A1
RING
- wear
2шт.
21
160829A1
RING
- wear
2шт.
22
155720A1
SHIM
WASHER - flat, special
1шт.
Part of seal kit. P/N 162976A1
1шт.
23
156217A1
NUT
- special
1шт.
24
156222A1
SCREW
- set
1шт.
25
155976A1
BALL
- steel
1шт.
26
155400A1
BUSHING
- mounting pin, closed end
1шт.
27
164445A1
RING
WIPER - mounting pin, closed end, replaces 155113A1 wiper
2шт.
29
161031A1
BUSHING
- mounting pin, rod end
1шт.
30
164445A1
RING
WIPER - mounting pin, rod end, replaces 155113A1 wiper
2шт.
31
160782A1
SEAL
- cushion
1шт.
Part of seal kit. P/N 162976A1
1шт.
32
160878A1
ELBOW
TUBE - hydraulic, closed end
1шт.
33
861-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9
4шт.
34
154528A1
O-RING
- tube
1шт.
35
160846A1
TUBE
- hydraulic, rod end
1шт.
37
154499A1
O-RING
- tube
1шт.
38
161000A1
MOUNTING CLIP
CLAMP - band
1шт.
39
161001A1
MOUNTING CLIP
CLAMP - band
1шт.
40
158131A1
BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9
BOLT - hex, special
2шт.
41
156227A1
WASHER
- lock, special
2шт.
42
160874A1
CLAMP
- tube, special
1шт.
43
160973A1
BOLT
- hex, special
1шт.
44
112312A1
LOCK WASHER
- lock, 12 mm
1шт.
162976A1
SEAL KIT
KIT - seal, Includes: Ref. 6, 10, 11, 12, 13, 14, 18, 19, 22 and 31
1шт.
161048A1
PIPE SET
KIT - tube, includes Refs. 2 and 26 listed above with a (#) sign
1шт.
161049A1
ROD
KIT - rod, includes Refs. 1 and 29 listed above with a ($) sign
1шт.
Выбрано товаров: 59
