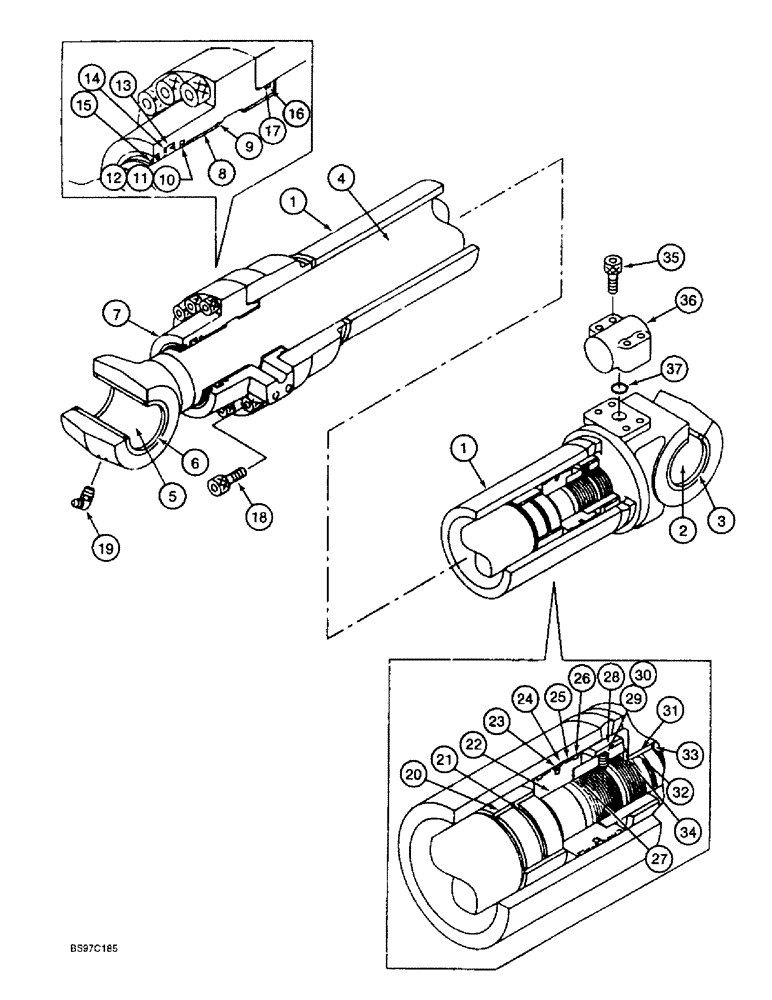

Запчасти Case 9010B (8-142) - ARM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

163449A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1205 mm (47-7/16 inch) stroke, arm, Includes: Ref. 1 - 37

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

2

161030A1

BUSHING

- mounting pin, cylinder tube

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

3

164446A1

WIPER SEAL

WIPER - mounting pin, at cylinder tube

2шт.

4

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

5

161030A1

BUSHING

- mounting pin, cylinder rod

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

6

164446A1

WIPER SEAL

WIPER - mounting pin, at cylinder rod eye

2шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

8

155430A1

BUSHING

- gland

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

9

155696A1

RING, SNAP

RING - snap

1шт.

160501A1

SEALING RING

RING ASSEMBLY - buffer, Includes: Ref. 10 - 12

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

10

160524A1

RING

- slide

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

11

160510A1

BACK-UP RING

RING - backup

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

12

160528A1

RING

- square

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

13

155132A1

RING,80mm ID x 95mm OD x 9mm Thk

SEAL - U-cup

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

14

155241A1

BACK-UP RING

RING - backup

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

15

158033A1

WIPER SEAL

WIPER - piston rod

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

16

154741A1

O-RING

SEAL - gland

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

17

160812A1

BACK-UP RING

RING - backup

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

18

161059A1

BOLT,Hex Skt, M16 x 70mm, Cl 12.9

BOLT - hex, special

12шт.

19

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

20

155160A1

RING

BEARING - cushion

1шт.

21

155155A1

SEAL

O-RING - cushion ring

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

22

160943A1

PISTON

- cylinder

1шт.

23

160824A1

SEALING RING

SEAL - piston, two piece

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

24

160813A1

BACK-UP RING

RING - backup

2шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

25

160826A1

RING

- wear

2шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

26

160827A1

RING

- wear

2шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

27

155723A1

WASHER

- special

1шт.

28

156221A1

NUT

- hex, was 160972A1

1шт.

29

156223A1

SET SCREW

SCREW - set

1шт.

30

155977A1

BALL

- steel

1шт.

31

160875A1

RING

- cushion

1шт.

32

160787A1

SEAL

SEAL - cushion

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

33

160876A1

STOP

- cushion

2шт.

34

160873A1

RING, SNAP

RING - snap

1шт.

35

861-10050

HEX SOC SCREW,M10 x 50mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 50 mm, class 12.9

4шт.

36

160844A1

CLAMP

ELBOW - 90 degree, flange type

1шт.

37

154528A1

O-RING

-, Serial Range: elbow-tube

1шт.

164494A1

SEAL KIT

KIT - seal replacement, contains Refs. 10 - 17, 21, 23- 26 and 32, in the quantities specified

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

161047A1

JACK BODY

KIT - tube replacement, contains Refs. 1 and 2, in the quantities specified

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

161051A1

PISTON ROD

KIT - rod replacement, contains Refs. 4 and 5, in the quantities specified

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.

161053A1

SET OF PARTS

KIT - gland replacement, contains Refs. 7, 8 and 9, in the quantites specified

1шт.

See Figure 8-140 for related hydraulic line tubes and clamps at cylinder.

1шт.
