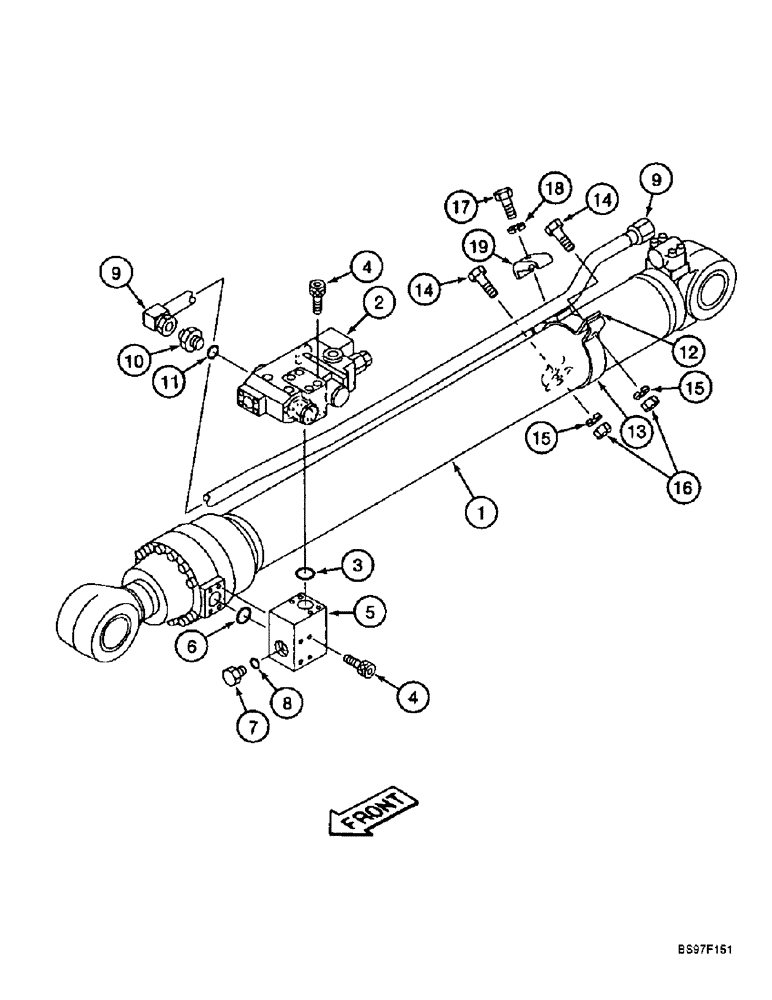

Запчасти Case 9010B (8-140) - ARM CYLINDERS, MODELS WITH LOAD HOLDING OPTION, HOLDING VALVES AND TUBES AT ARM CYLINDER (08) - HYDRAULICS

1

163449A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1205 mm (47-7/16 inch) stroke, arm, parts list see Figure 8-142

1шт.

2

163447A1

SAFETY VALVE

VALVE ASSEMBLY - load holding, arm cylinder

1шт.

3

154529A1

O-RING

- valve

1шт.

4

862-10085

HEX SOC SCREW,M10 x 85mm, Cl 12.9

BOLT - hex socket, 10 - 1.50 x 85 mm, class 12.9

8шт.

5

163448A1

MANIFOLD

- cylinder

1шт.

6

154529A1

O-RING

- manifold

1шт.

7

159085A1

PLUG

- port, manifold, Includes: Ref. 8

1шт.

8

154487A1

O-RING

- plug

1шт.

9

163450A1

HYD TUBE,27.2 mm OD

TUBE - hydraulic, at cylinder tube, rod end

1шт.

10

159387A1

ADAPTER

- straight, special, Includes: Ref. 11

1шт.

11

154523A1

O-RING

- adapter

1шт.

12

163452A1

CLAMP

- special

1шт.

13

163451A1

CLAMP

- plain half

1шт.

14

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

2шт.

15

892-11010

LOCK WASHER,M10

2шт.

17

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

18

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

19

151486A1

CLAMP BRACKET

CLAMP - tube

1шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
