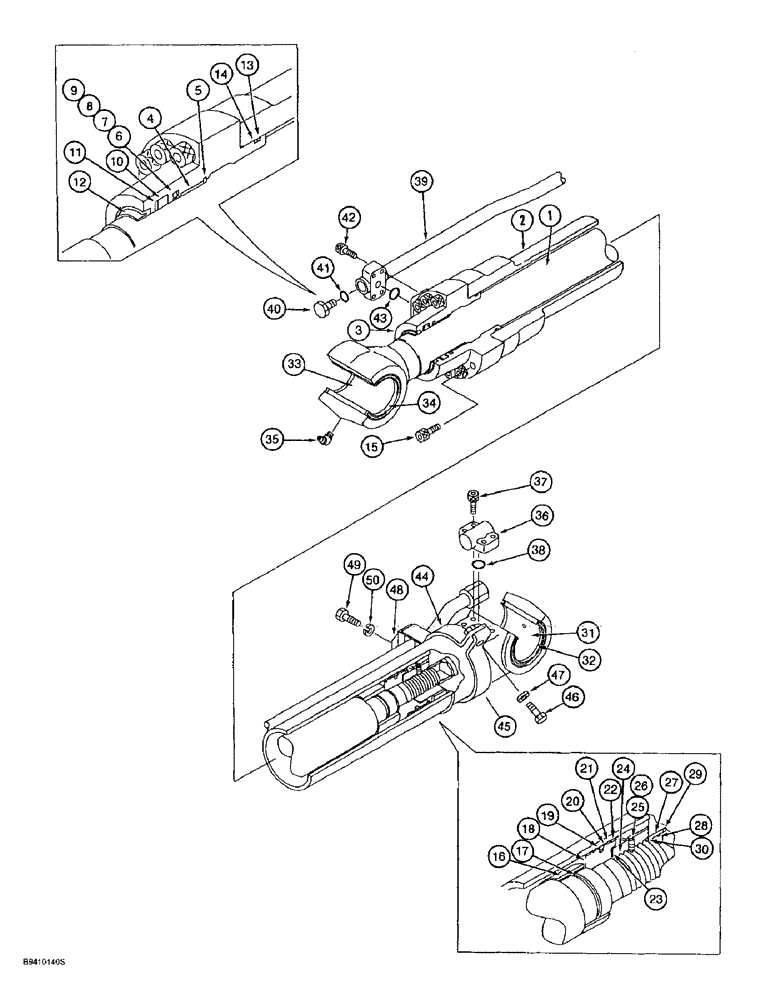

Запчасти Case 9010B (8-136) - ARM CYLINDER, MODELS WITHOUT LOAD HOLD (08) - HYDRAULICS

160736A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 115 (4-1/2) ID x 1205 mm (47-7/16 inch) stroke, arm, Includes: Ref. 1 - 50

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

160900A1

HEAD

GLAND - cylinder

1шт.

4

155430A1

BUSHING

- gland

1шт.

5

155696A1

RING, SNAP

RING - snap, replaces 155738A1 snap ring

1шт.

6

160501A1

SEALING RING

RING ASSEMBLY - buffer, Includes: Ref. 7 - 9

1шт.

7

160524A1

RING

- slide

1шт.

8

160510A1

BACK-UP RING

RING - backup

1шт.

9

160528A1

RING

- square

1шт.

10

155132A1

RING,80mm ID x 95mm OD x 9mm Thk

SEAL - U-cup

1шт.

11

155241A1

BACK-UP RING

RING - backup

1шт.

12

158033A1

WIPER SEAL

WIPER - piston rod

1шт.

13

154741A1

O-RING

SEAL - O-ring

1шт.

14

160812A1

BACK-UP RING

RING - backup

1шт.

15

161059A1

BOLT,Hex Skt, M16 x 70mm, Cl 12.9

BOLT - hex, special

12шт.

16

155160A1

RING

BEARING - cushion

1шт.

17

155155A1

SEAL

O-RING - seal

1шт.

18

160943A1

PISTON

- cylinder

1шт.

19

160824A1

SEALING RING

SEAL - piston

1шт.

20

160813A1

BACK-UP RING

RING - backup

2шт.

21

160826A1

RING

- wear

2шт.

22

160827A1

RING

- wear

2шт.

23

155723A1

WASHER

- special

1шт.

24

156221A1

NUT

- hex, was 160972A1

1шт.

25

156223A1

SET SCREW

SCREW - set

1шт.

26

155977A1

BALL

- steel

1шт.

27

160875A1

RING

- cushion

1шт.

28

160787A1

SEAL

SEAL - cushion

1шт.

29

160876A1

STOP

- cushion

2шт.

30

160873A1

RING, SNAP

RING - snap

1шт.

31

161030A1

BUSHING

- mounting pin, closed end

1шт.

32

164446A1

WIPER SEAL

WIPER - mounting pin, closed end, replaces 155116A1 wiper

2шт.

33

161030A1

BUSHING

- mounting pin, rod end

1шт.

34

164446A1

WIPER SEAL

WIPER - mounting pin, rod end, replaces 155116A1 wiper

2шт.

35

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

36

160844A1

CLAMP

ELBOW - 90 degree, closed end

1шт.

37

861-10050

HEX SOC SCREW,M10 x 50mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 50 mm, class 12.9

4шт.

38

154528A1

O-RING

- elbow

1шт.

39

160845A1

HYD TUBE

TUBE ASSEMBLY - hydraulic, rod end, Includes: Ref. 40 and 41

1шт.

40

NSS

NOT SOLD SEPARAT

PLUG - tube assembly sealing

1шт.

41

154503A1

O-RING

- port plug

1шт.

42

861-10050

HEX SOC SCREW,M10 x 50mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 50 mm, class 12.9

4шт.

43

154528A1

O-RING

- tube assembly

1шт.

44

160998A1

CLAMP BRACKET

CLAMP - band

1шт.

45

160999A1

MOUNTING CLIP

CLAMP - band

1шт.

46

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

2шт.

47

156227A1

WASHER

- lock, special

2шт.

48

155717A1

COLLAR

CLAMP - tube, special

1шт.

49

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

50

112312A1

LOCK WASHER

- lock, 12 mm

1шт.

164494A1

SEAL KIT

KIT - seal replacement, contains Refs. 6 -14, 17, 19, 20 and 28, in the quantities specified, replaces 161055A1 seal kit

1шт.

161053A1

SET OF PARTS

KIT - gland replacement, contains Refs. 3 - 5 and Refs. 44 - 50 on Figure 8-136, in the quantities specified

1шт.

161051A1

PISTON ROD

KIT - rod replacement, contains Refs. 1 and 33, in the quantities specified

1шт.

161047A1

JACK BODY

KIT - tube replacement, contains Refs. 2 and 31, in the quantities specified

1шт.
