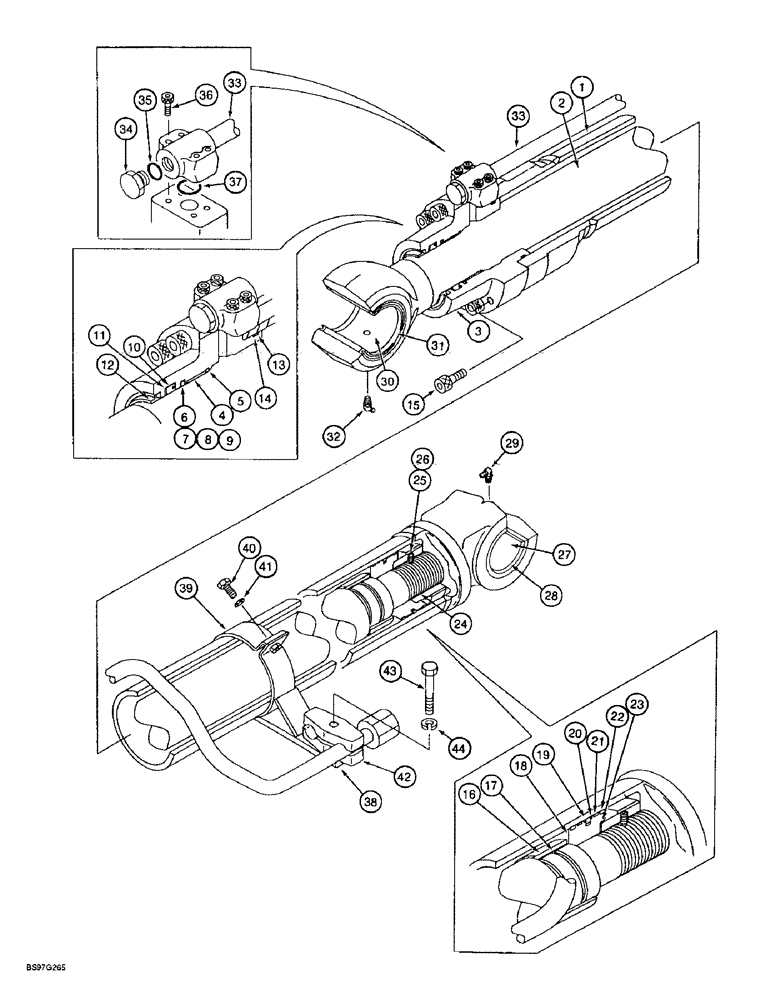

Запчасти Case 9010B (8-132) - BOOM CYLINDERS, MODELS WITH LOAD HOLD (08) - HYDRAULICS

163439A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 100 (3-15/16) ID x 1081 mm (42-9/16 inch) stroke, boom, right-hand, Includes: Ref. 1 - 44

1шт.

163442A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 100 (3-15/16) ID x 1081 mm (42-9/16 inch) stroke, boom, left-hand, Includes: Ref. 1 - 44

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

3

160898A1

HEAD

GLAND - cylinder

1шт.

4

160843A1

BUSHING

- gland

1шт.

5

160870A1

BACK-UP RING

RING - retaining

1шт.

6

160785A1

SEALING RING

RING ASSEMBLY - buffer, Includes: Ref. 7 - 9

1шт.

7

160830A1

RING

- slide

1шт.

8

160815A1

BACK-UP RING

RING - backup

1шт.

9

160834A1

RING

- square

1шт.

10

160781A1

RING,75mm ID x 90mm OD x 9mm Thk

SEAL - U-cup

1шт.

11

160808A1

BACK-UP RING

RING - backup

1шт.

12

160783A1

WIPER SEAL

WIPER - piston rod

1шт.

13

154713A1

O-RING

- gland seal

1шт.

14

160809A1

BACK-UP RING

RING - backup

1шт.

15

161058A1

BOLT,Hex Skt Hd

BOLT - hex socket, special

12шт.

16

160872A1

RING

- cushion

1шт.

17

160786A1

SEAL

- cushion ring

1шт.

18

160942A1

PISTON

- cylinder

1шт.

19

160823A1

SEALING RING

SEAL - piston

1шт.

20

160811A1

BACK-UP RING

RING - backup

2шт.

21

164453A1

RING

- wear

2шт.

22

164452A1

RING

- wear

2шт.

23

155720A1

SHIM

WASHER - flat, special

1шт.

24

156217A1

NUT

- special

1шт.

25

156222A1

SCREW

- set

1шт.

26

155976A1

BALL

- steel

1шт.

27

155400A1

BUSHING

- mounting pin, cylinder closed end

1шт.

28

164445A1

RING

WIPER - mounting pin, cylinder closed end, replaces 155113A1 wiper

2шт.

29

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

30

155413A1

BUSHING

- mounting pin, rod end

1шт.

31

164446A1

WIPER SEAL

WIPER - mounting pin, rod end, replaces 155116A1 wiper

2шт.

32

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

1шт.

33

LR012580

HYD TUBE

TUBE ASSEMBLY - hydraulic, rod end, right-hand, Includes: Refs. 34 and 35, Replaces 161033A1

1шт.

33

LR012600

HYD TUBE

TUBE ASSEMBLY - hydraulic, rod end, left-hand, Includes: Refs. 34 and 35, Replaces 160847A1

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG - tube assembly sealing

1шт.

35

154487A1

O-RING

If Used

1шт.

36

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9, Replaces 863-8040

4шт.

37

154499A1

O-RING

- tube assembly

1шт.

38

161002A1

CLAMP BRACKET

CLAMP - band, with flange

1шт.

39

160997A1

MOUNTING CLIP

CLAMP - band

1шт.

40

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

2шт.

41

156227A1

WASHER

- lock, special

2шт.

42

160871A1

HALF-FLANGE

CLAMP - tube

2шт.

43

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

44

112312A1

LOCK WASHER

- lock, 12 mm

1шт.

164493A1

SEAL KIT

KIT - seal replacement, contains Refs. 6 -14, 17, 19 - 23, in the quantities specified

1шт.

161052A1

SET OF PARTS

KIT - gland replacement, contains Refs. 3 - 5, in the quantities specified

1шт.

161046A1

JACK BODY

KIT - tube replacement, contains Refs. 1 and 27, in the quantities specified

1шт.

161050A1

PISTON ROD

KIT - rod replacement, contains Refs. 2 and 30, in the quantities specified

1шт.
