(8-130) - BOOM CYLINDERS, MODELS WITH LOAD HOLDING OPTION, HOLDING VALVES AND TUBES AT BOOM CYLINDERS

Запчасти Case 9010B (8-130) - BOOM CYLINDERS, MODELS WITH LOAD HOLDING OPTION, HOLDING VALVES AND TUBES AT BOOM CYLINDERS (08) - HYDRAULICS

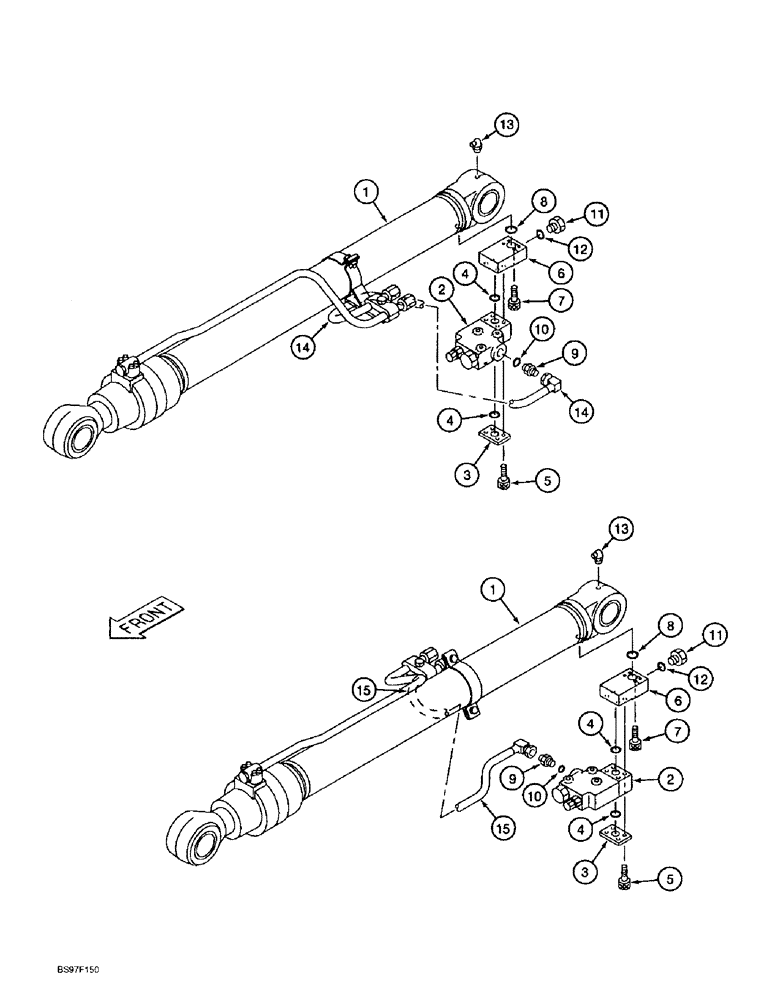

Схема запчастей Case 9010B - (8-130) - BOOM CYLINDERS, MODELS WITH LOAD HOLDING OPTION, HOLDING VALVES AND TUBES AT BOOM CYLINDERS (08) - HYDRAULICS
11
1
3
5
8
12
12
5
4
15
14
6
8
10
9
2
13
7
15
1
14
10
4
4
6
4
7
2
3
11
9
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

163442A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 100 (3-15/16) ID x 1081 mm (42-9/16 inch) stroke, boom, parts list Figure 8-132

1шт.

1

163439A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 100 (3-15/16) ID x 1081 mm (42-9/16 inch) stroke, boom, parts list Figure 8-132

1шт.

2

163440A1

SAFETY VALVE

VALVE ASSEMBLY - load holding, boom cylinder

2шт.

3

163705A1

FLANGE

COVER - flat, flange port

2шт.

4

154529A1

O-RING

- cover

4шт.

5

862-10085

HEX SOC SCREW,M10 x 85mm, Cl 12.9

BOLT - hex socket, 10 - 1.50 x 85 mm, class 12.9

8шт.

6

163455A1

MANIFOLD

- cylinder

2шт.

7

862-8050

SCREW

BOLT - hex socket, 8 - 1.25 x 50 mm, class 12.9

8шт.

8

154499A1

O-RING

- cylinder tube port

4шт.

9

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, Includes: Ref. 10

2шт.

10

154487A1

O-RING

- adapter

1шт.

11

153105A1

PLUG

- port, manifold, Includes: Ref. 12

2шт.

12

154475A1

O-RING

- plug

1шт.

13

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

2шт.

14

163441A1

HYD TUBE

TUBE - hydraulic, right-hand, at load hold valve

1шт.

15

163443A1

HYD TUBE

TUBE - hydraulic, left-hand, at load hold valve

1шт.
