(8-122) - CUSHION VALVE

Запчасти Case 9010B (8-122) - CUSHION VALVE (08) - HYDRAULICS

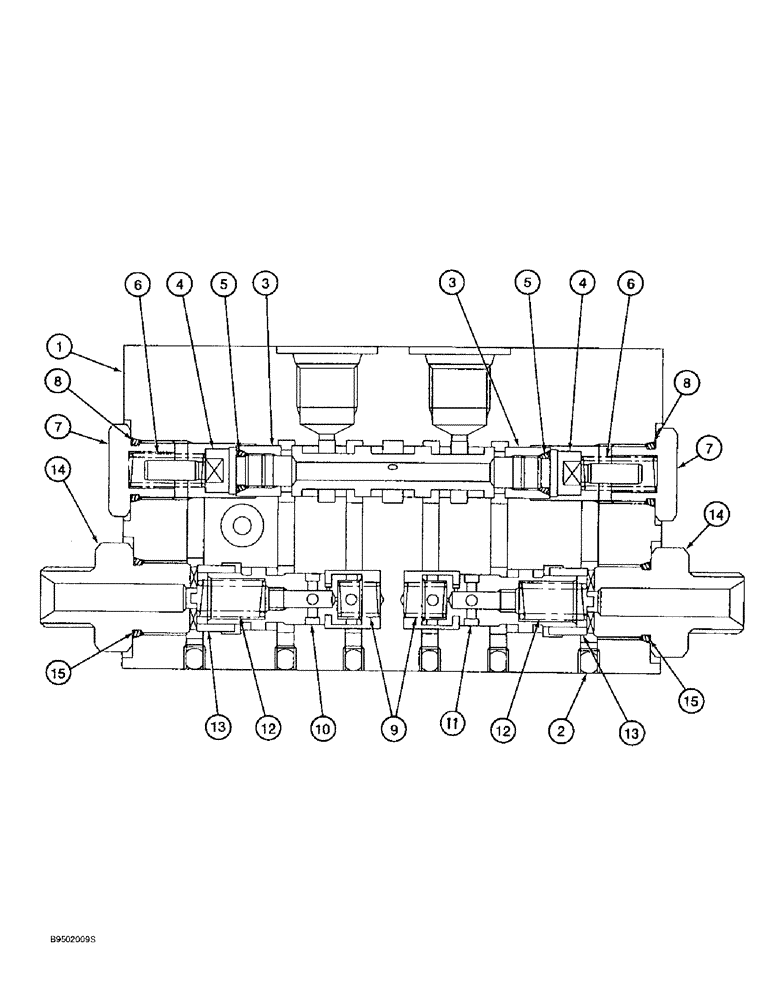

Схема запчастей Case 9010B - (8-122) - CUSHION VALVE (08) - HYDRAULICS
14
7
11
13
12
5
8
8
15
4
3
4
6
13
9
3
7
10
15
12
6
14
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

161005A1

VALVE

ASSEMBLY - cushion, models without load hold, Includes: Ref. 1 - 15

1шт.

163703A1

VALVE

ASSEMBLY - cushion, models with load hold, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

161004A1

PLUG

- port

24шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

4

153106A1

COLLAR

GUIDE - spring, spool end

4шт.

5

154454A1

O-RING

- spring guide

4шт.

6

153107A1

SPRING

- compression

4шт.

7

153108A1

RETAINER

PLUG - spool end

4шт.

8

154474A1

O-RING

- plug

4шт.

9

153109A1

SPRING

- compression, inner

4шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - secondary

2шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - secondary

2шт.

12

153114A1

SPRING

- compression, outer

4шт.

13

153117A1

COLLAR

- secondary spool

4шт.

14

153120A1

HYD CONNECTOR

ADAPTER - straight

4шт.

15

154486A1

O-RING

- plug

4шт.
