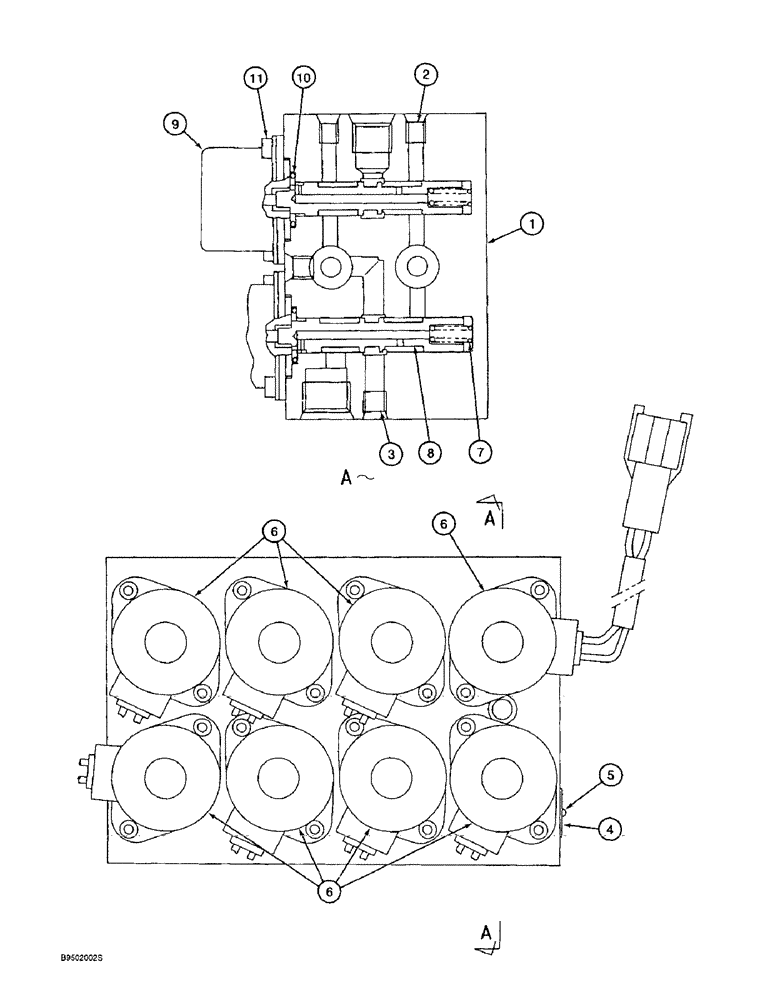

Запчасти Case 9010B (8-118) - PILOT CONTROL SOLENOID VALVE (08) - HYDRAULICS

161310A1

VALVE

ASSEMBLY - solenoid, pilot control, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - port

4шт.

3

NSS

NOT SOLD SEPARAT

PLUG - port

1шт.

4

NSS

NOT SOLD SEPARAT

NAMEPLATE - solenoid valve

1шт.

5

NSS

NOT SOLD SEPARAT

SCREW - drive

2шт.

6

165145A1

SOLENOID VALVE

VALVE ASSEMBLY - solenoid operated

8шт.

7

NSS

NOT SOLD SEPARAT

SPRING - valve; If needed complete valve needs to be ordered

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - valve; If needed complete valve needs to be ordered

1шт.

9

NSS

NOT SOLD SEPARAT

SOLENOID - valve

1шт.

10

154498A1

O-RING

- valve assembly

1шт.

11

862-4010

HEX SOC SCREW,M4 x 10mm, Cl 12.9

SCREW - hex socket, 4 - 0.7 x 10 mm, class 12.9

16шт.
