(8-116) - CONTROL VALVE, WORKING CIRCUIT AND MAIN RELIEF VALVES

Запчасти Case 9010B (8-116) - CONTROL VALVE, WORKING CIRCUIT AND MAIN RELIEF VALVES (08) - HYDRAULICS

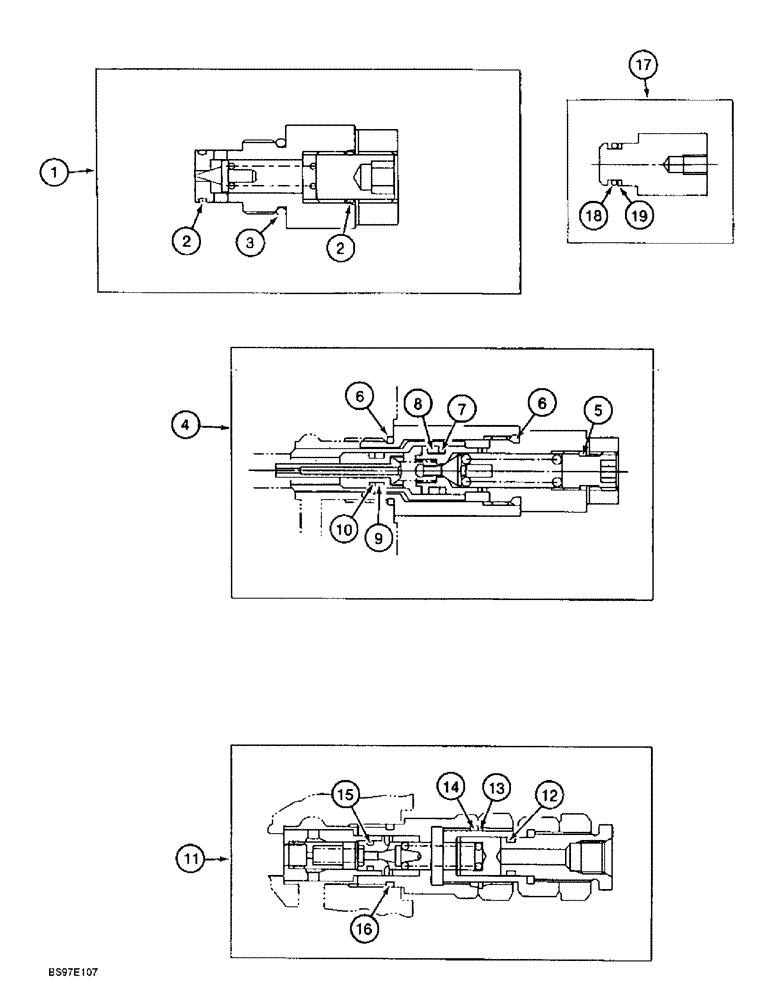

Схема запчастей Case 9010B - (8-116) - CONTROL VALVE, WORKING CIRCUIT AND MAIN RELIEF VALVES (08) - HYDRAULICS
13
19
4
5
6
1
10
16
2
17
3
8
15
2
11
6
9
14
7
18
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

162042A1

VALVE, CONTROL

VALVE ASSEMBLY - control, models without load hold, parts list see Figures 8-106 - 8-116, Includes: Ref. 1 - 19

1шт.

163696A1

VALVE, CONTROL

VALVE ASSEMBLY - control, models with load hold, parts list see Figures 8-106 - 8-116, Includes: Ref. 1 - 19

1шт.

1

160883A1

VALVE

ASSEMBLY - relief, circuit, Includes: Ref. 2 and 3

2шт.

2

154463A1

O-RING

- relief valve, internal

2шт.

3

154475A1

O-RING

- relief, Serial Range: valve-housing

1шт.

4

162192A1

VALVE

- port relief, circuit, replaces 160885A1 or 161319A1, Includes: Ref. 5 - 10

6шт.

5

154463A1

O-RING

- relief valve, internal

1шт.

6

154487A1

O-RING

- relief valve to housing and internal

2шт.

7

160798A1

BACK-UP RING

RING - backup

2шт.

8

155086A1

O-RING

- relief valve, internal

1шт.

9

163323A1

O-RING

- relief valve, internal

1шт.

10

165882A1

RING

- backup

2шт.

11

163876A1

VALVE

ASSEMBLY - relief, main, replaces 160884A1, Includes: Ref. 12 - 16

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- relief valve, internal

1шт.

13

160795A1

BACK-UP RING

RING - backup

1шт.

14

155223A1

O-RING

- relief valve, internal

1шт.

15

155202A1

O-RING

- relief valve, internal

1шт.

16

154495A1

O-RING

- relief, Serial Range: valve-housing

1шт.

17

163526A1

PLUG

- hydraulic port, replaces 164742A1 plug, Includes: Ref. 18 and 19

2шт.

18

155201A1

O-RING

- plug

1шт.

19

153946A1

BACK-UP RING

RING - backup

1шт.
