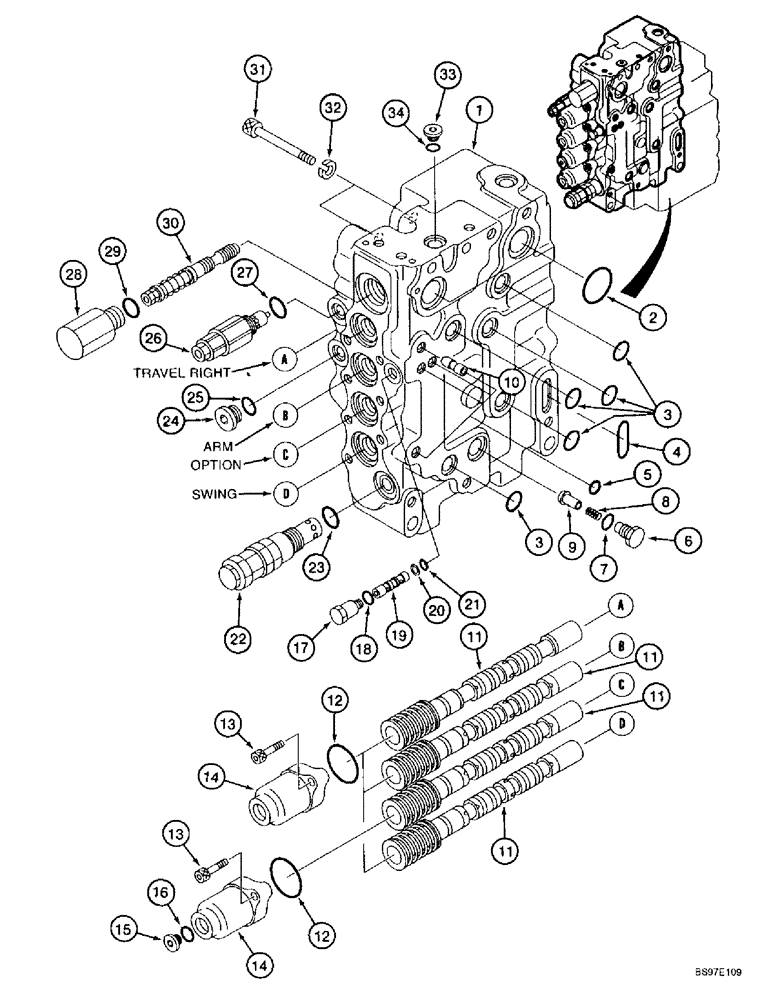

Запчасти Case 9010B (8-114) - CONTROL VALVE, FOUR SPOOL HOUSING AND RELATED PARTS (08) - HYDRAULICS

162042A1

VALVE, CONTROL

VALVE ASSEMBLY - control, models without load hold, parts list see Figures 8-106 - 8-116, Includes: Ref. 1 - 34

1шт.

163696A1

VALVE, CONTROL

VALVE ASSEMBLY - control, models with load hold, parts list see Figures 8-106 - 8-116, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - four spool side

1шт.

2

154523A1

O-RING

- port

1шт.

3

154487A1

O-RING

- port

4шт.

4

160804A1

O-RING

- port

1шт.

5

154463A1

O-RING

- port

4шт.

6

160922A1

CAP

PLUG - port

1шт.

7

154475A1

O-RING

- plug

1шт.

8

156034A1

SPRING

- valve

1шт.

9

160912A1

PLUNGER

VALVE - check, main relief isolation

1шт.

10

160840A1

RING

BUSHING - passage

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - valve, A2, C1, M1, and T1

4шт.

12

160806A1

O-RING

-, Serial Range: cover-housing

4шт.

13

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

8шт.

14

160975A1

COVER

- valve

4шт.

15

160306A1

CAP

PLUG - port

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

17

160901A1

CAP

FITTING - hydraulic port

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- fitting

1шт.

19

163325A1

ORIFICE

- hydraulic, straight travel

1шт.

20

153943A1

BACK-UP RING

RING - backup

1шт.

21

154451A1

O-RING

- check valve

1шт.

22

163876A1

VALVE

ASSEMBLY - relief, main, parts list see Figure 8-116

1шт.

23

154495A1

O-RING

- relief valve

1шт.

24

160903A1

CAP

PLUG - port, relief option

1шт.

25

154487A1

O-RING

- plug

1шт.

26

162192A1

VALVE

- port relief, arm circuit, was 161319A1, parts list see Figure 8-116

1шт.

27

154487A1

O-RING

- relief valve

1шт.

28

160926A1

CAP

- valve

1шт.

29

156790A1

O-RING

- cap

1шт.

30

NSS

NOT SOLD SEPARAT

SPOOL - valve, straight travel

1шт.

31

862-12095

HEX SOC SCREW,M12 x 95mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 95 mm, class 12.9

7шт.

32

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

7шт.

33

160306A1

CAP

PLUG - port

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.
