Запчасти Case 9010B (8-110) - CONTROL VALVE, FOUR SPOOL HOUSING AND RELATED PARTS (08) - HYDRAULICS

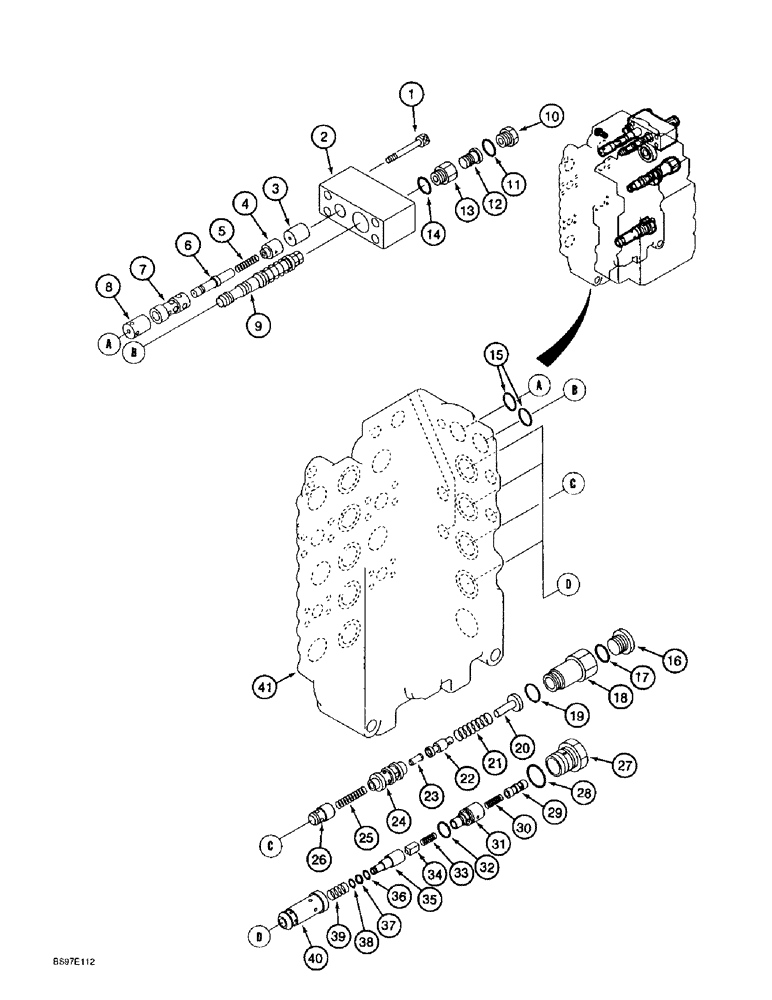

Схема запчастей Case 9010B - (8-110) - CONTROL VALVE, FOUR SPOOL HOUSING AND RELATED PARTS (08) - HYDRAULICS
29
4
6
1
8
37
24
28
22
12
18
13
39
23
30
26
40
14
35
33
11
17
10
38
15
36
27
7
5
21
19
20
2
3
31
41
25
32
34
9
16

Артикул

Название

Примечание

Количество

162042A1

VALVE, CONTROL

VALVE ASSEMBLY - control, models without load hold, parts list see Figures 8-106 - 8-116, Includes: Ref. 1 - 41

1шт.

163696A1

VALVE, CONTROL

VALVE ASSEMBLY - control, models with load hold, parts list see Figures 8-106 - 8-116, Includes: Ref. 1 - 41

1шт.

1

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 45 mm, class 12.9

4шт.

2

160976A1

COVER

BLOCK - cover

1шт.

3

160839A1

RING

BUSHING - passage

1шт.

4

160851A1

SLEEVE

- valve

1шт.

5

156027A1

SPRING

- valve

1шт.

6

160904A1

SPOOL

- valve, neutral pump destroke

1шт.

7

160857A1

SLEEVE

- valve

1шт.

8

160858A1

SPACER

- valve, neutral pump destroke

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - valve, boom 2, bucket 2

1шт.

10

160924A1

CAP

FITTING - hydraulic port

1шт.

11

154495A1

O-RING

- fitting

1шт.

12

160907A1

PISTON

- valve

1шт.

13

160925A1

CAP

FITTING - hydraulic port

1шт.

14

154495A1

O-RING

- fitting

1шт.

15

154509A1

O-RING

-, Serial Range: block-housing

2шт.

16

160903A1

CAP

PLUG - port

1шт.

17

154487A1

O-RING

- plug

1шт.

18

160920A1

CAP

HOUSING - valve, arm regeneration

1шт.

19

154495A1

O-RING

- housing

1шт.

20

160928A1

COLLAR

GUIDE - spring

1шт.

21

160951A1

SPRING

- compression

1шт.

22

160905A1

SPOOL

- valve

1шт.

23

160906A1

PISTON

- valve

1шт.

24

160852A1

SLEEVE

- valve, arm regeneration

1шт.

25

160947A1

SPRING

- compression

1шт.

26

160911A1

PLUNGER

VALVE - check, arm regeneration

1шт.

27

160919A1

CAP

PLUG - port

1шт.

28

154515A1

O-RING

- plug

1шт.

29

160908A1

PISTON

- valve

1шт.

30

156033A1

SPRING

- valve

1шт.

31

160854A1

SLEEVE

- valve, boom dual flow combining

1шт.

32

163324A1

O-RING

- valve sleeve

1шт.

33

156034A1

SPRING

- valve

1шт.

34

160909A1

VALVE, CHECK

VALVE - check

1шт.

35

160853A1

SLEEVE

- valve, boom dual flow combining

1шт.

36

160791A1

BACK-UP RING

RING - backup

1шт.

37

155201A1

O-RING

- valve sleeve

1шт.

38

160791A1

BACK-UP RING

RING - backup

1шт.

39

160950A1

SPRING

- compression

1шт.

40

160913A1

PLUNGER

VALVE - check, boom dual flow combining

1шт.

41

NSS

NOT SOLD SEPARAT

HOUSING - four spool side

1шт.

Выбрано товаров: 43
